17
3.3. Site Survey Tab
The Site Survey tab shows you the list of reachable access points and/or peer-to-peer
Stations. Just double click on the SSID that you want to connect or click the Connect
button. (see Figure 3-10)

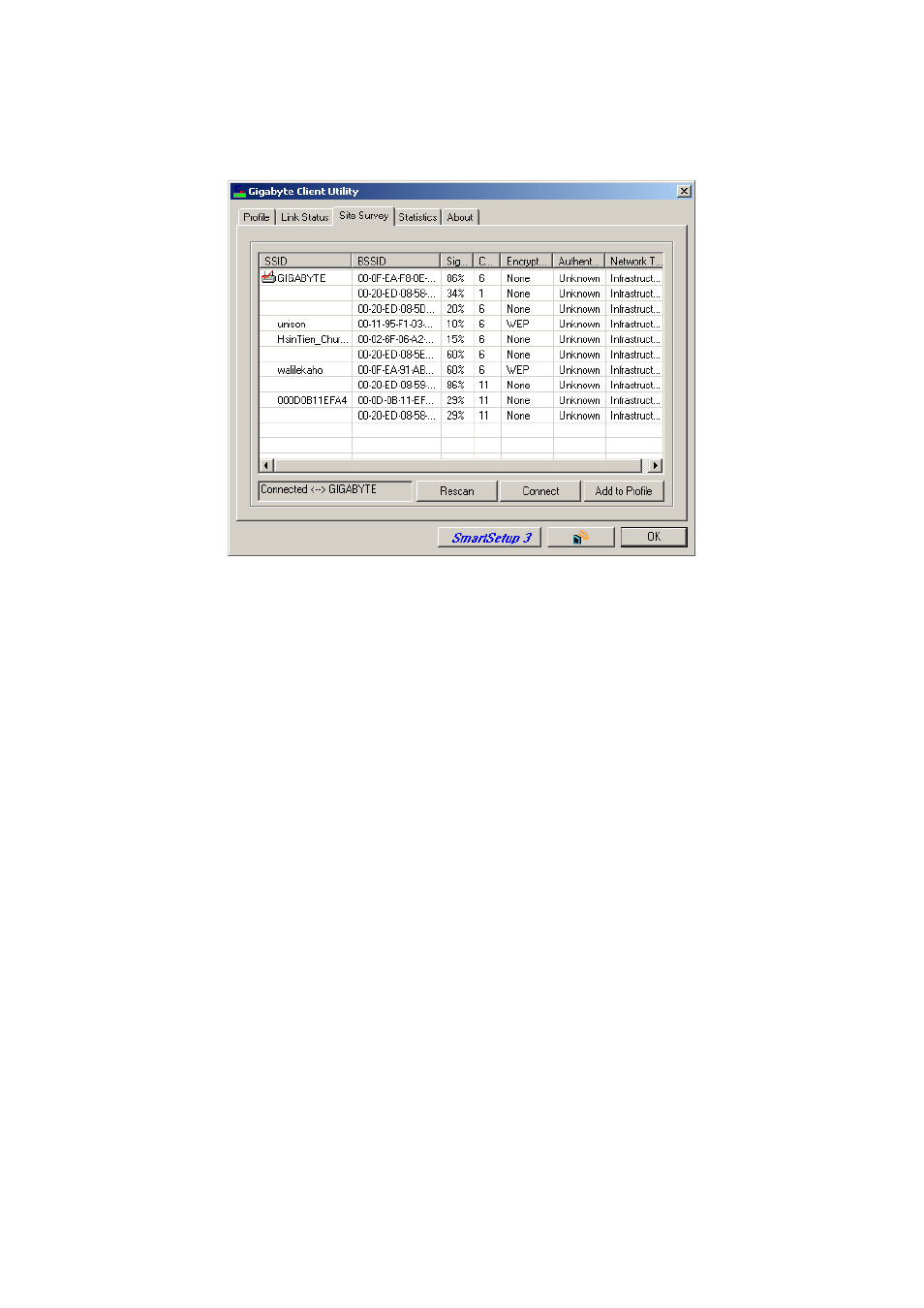

Figure 3-10. Site Survey
Description of items in Figure 3-10 is as follows:
SSID: The name of the wireless network (also known as Network Name).
BSSID: Displays the MAC address of the Access Point or router.
Signal Strength: Displays the strength of the signal from a station to the AP.
Channel: Displays the current channel number used by the Access Point.
Encryption: The security method used by the Access Point.
Authentication: The authentication type used by the Access Point.
Network Type: Informs you if an Access Point (infrastructure) or other stations (802.11 Ad
Hoc) is connected. When it is 802.11 Ad Hoc, we can select a channel for all members in
802.11 Ad Hoc.
Rescan: Rescan the available networks and then re-display results.
Connect: Connects with the highlighted Access Point.
Add to Profile: Adds a specific Access Point into the profile.
