ICE &

WATER DISPENSER

(on some models)

Automatic

and Ice & Chilled Water Dispenser

Some models have an automatic

and a

dispenser that dispenses chilled water, ice cubes and
crashed ice through the freezer compartment door.
Here’s how they work.

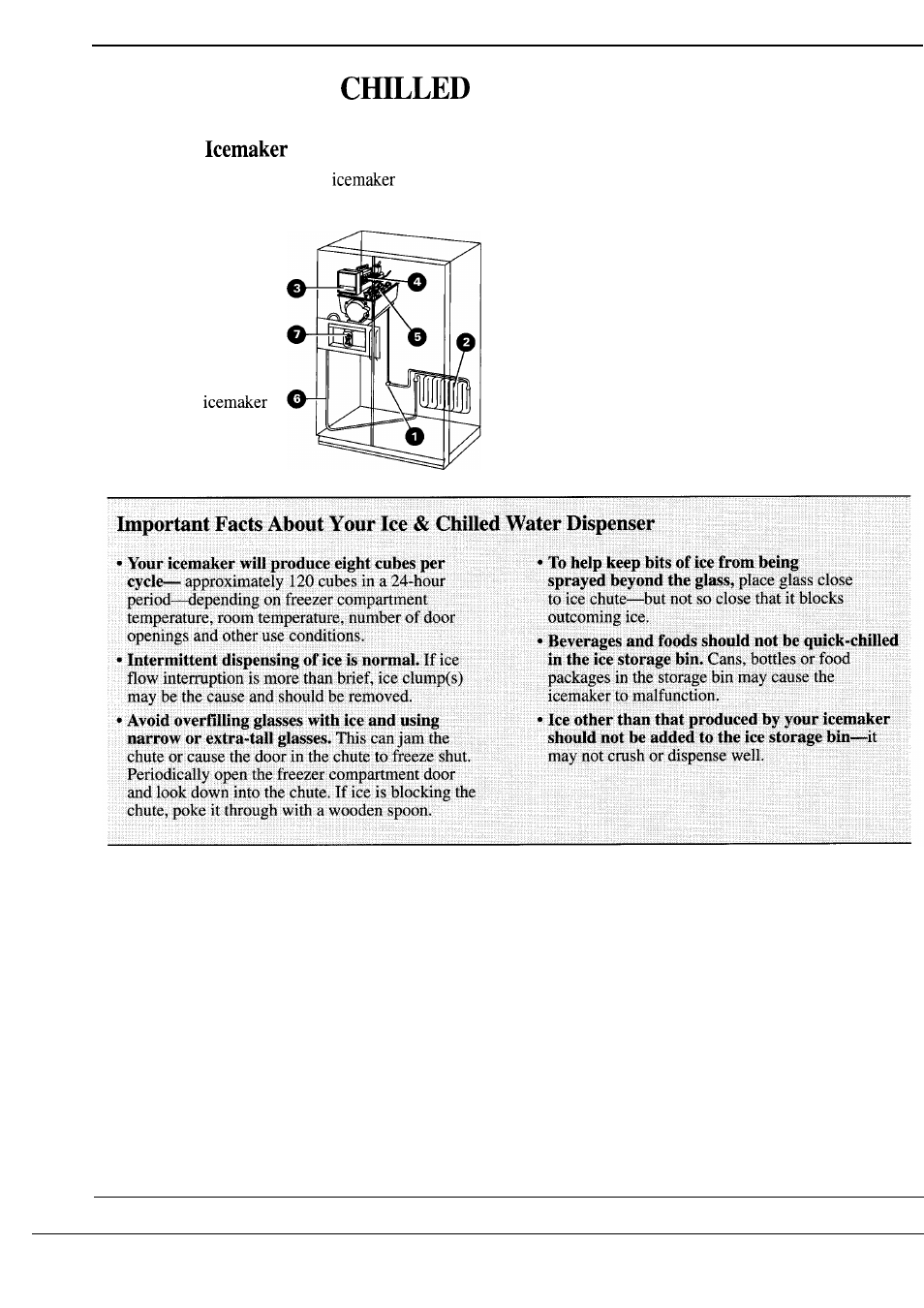

Water flows from the
household supply
through a

(1) dual solenoid valve

to the

(2) water reservoir and

to the

(3) automatic

as needed.

Water is frozen in the

(4) cube mold and ejected into the

(5) storage bin where a motor-powered auger moves

cubes forward into the dispensing unit. Cubes or
crushed ice, as selected, dispense through chute in
door when cradle is pressed.

When the switch is moved to CRUSHED, the baffle
in housing channels cubes through the crusher and
crushed ice falls through chute into glass.

Chilled water from reservoir flows through the

(6) tubing in the door and is dispensed when the

cradle is pressed.

(7) A light switch turns the night light in the

dispenser on and off.

6
