G0501 Sliding Table Saw -27-
Installing Extension
Tables
To install the extension tables:
1. Assemble the braces to the underside of the
small and large extension table, as shown in
Figures 36 & 37. Note—
Do not fully tighten
the braces to the tables. They will need to be
adjusted during installation.

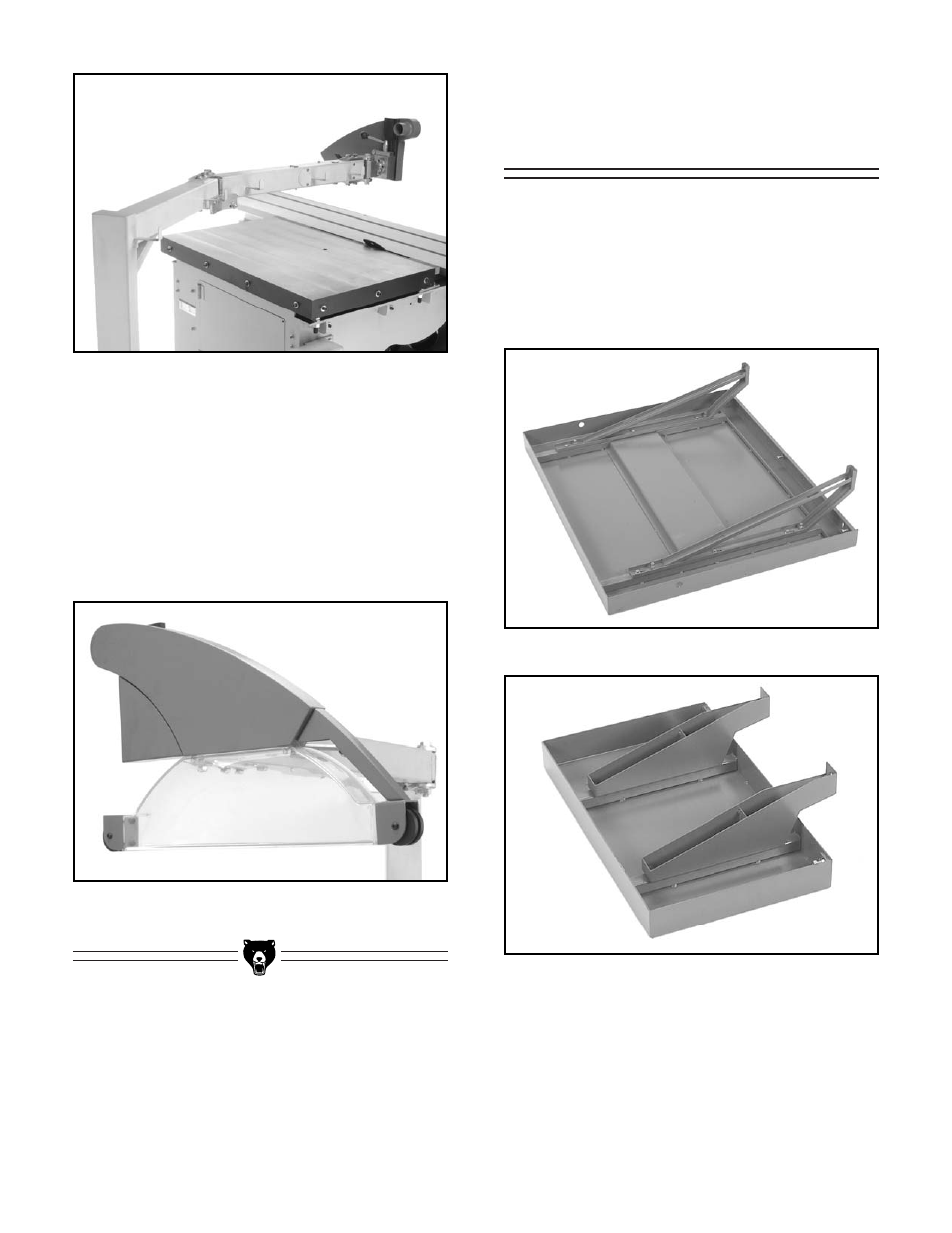

Figure 34. Pivoting swing arm installed on
supports.
Figure 35. Clear blade shield installed.
Figure 36. Large extension table and braces.
Figure 37. Small extension table and braces.
7. Remove the four cap screws under the blade
guard and one cap screw at the front.
8. Position the clear blade shield guide holes
under the blade guard arm (Figure 35) and
secure it with the cap screws removed in
step 7. Note—
Overtightening cap screws
may crack the blade guard.
