Tips FoR THE AssEMbly oF youR nEw MAnTEl
• Before you begin assembly, locate the instructions and hardware. Take out all the parts and
compare them to the diagrams below. Be sure you have all the parts and can identify them.
• A helping hand is always good. Assemble your mantel with an adult assistant if possible. Some pieces are heavy
and will need to be held by a helper. Assembly time will take approximately 30-60 minutes.

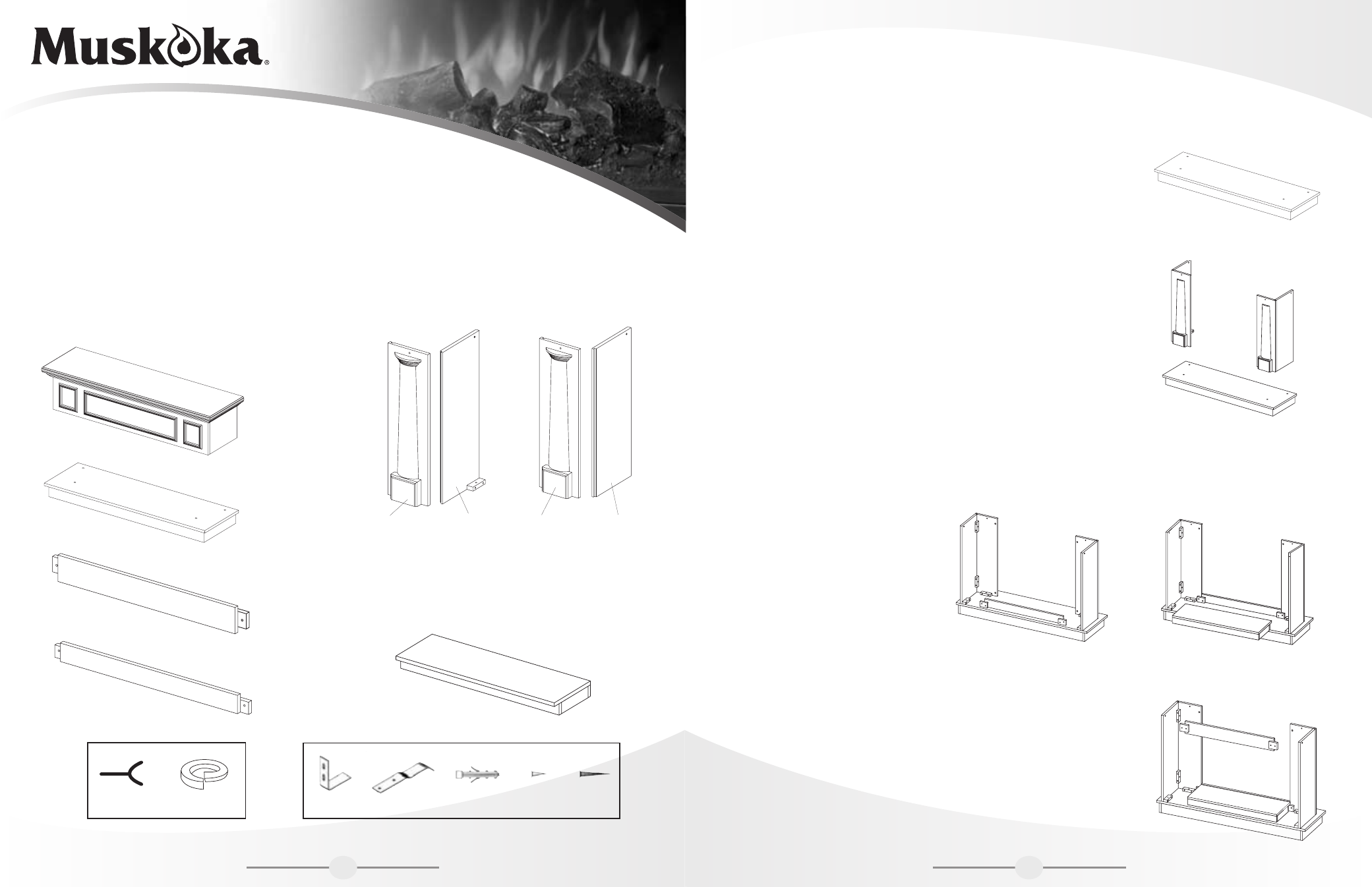

TOP 1PC
CHERRY: ZZ.2808CHG.08
BASE 1PC
CHERRY: ZZ.2808CHG.01
UPPER FACinG PAnEL 1PC
CHERRY: ZZ.2808CHG.06
AnTi-TiP DEViCE 2 SETS WinGnUT AnD LOCK WASHER
2PCS 2PCS 4PCS 4PCS 17PCS 17PCS 4PCS
FiREBOX SHELF 1PC
CHERRY: ZZ.2808CHG.09
LOWER FACinG PAnEL 1PC
CHERRY: ZZ.2808CHG.07
LEFT FROnT
PAnEL 1PC
CHERRY:
ZZ.2808CHG.05
inSiDE
ViEW
OUTSiDE
ViEW
LEFT SiDE
PAnEL 1PC
CHERRY:
ZZ.2808CHG.03
RiGHT FROnT
PAnEL 1PC
CHERRY:
ZZ.2808CHG.04
RiGHT SiDE
PAnEL 1PC
CHERRY:
ZZ.2808CHG.02
Get Ready to start
Before assembly, use scissors to unwrap the parts from the packaging. Do noT use a box cutter or exacto-knife
as you may cut into the mantel pieces inside the box and damage the finish. Check for the hardware bag which is
RED and located inside the packaging, taped to the top box. Be sure you Do noT discard any pieces.
step 1
Locate the base and place it on the floor. Do not put it up against the wall at this
point in the assembly, as you need to get in behind the mantel to insert several
wingnuts, lock washers and firebox screws.
step 2
Locate the left side panel and the left front panel. Facing the front of the base,
take the left side panel, positioning it so the holes in the blocks on the bottom
line up with the holes on the base. Position the left front panel next to the left side
panel, lining up the holes in the blocks with the holes on the base. Attach the left
front and side panel to the base by inserting and tightening 1 wingnut and 1 lock
washer to each piece. Attach the left side and front panels together by inserting
and tightening 2 wingnuts and 2 lock washers.
step 3
Repeat Step 2, but with the right side panel and the right front panel.
step 4
Locate the lower facing panel and
the firebox shelf. Attach the lower facing
panel by placing the finished side to the
front then line up the holes on each side
and insert 1 wingnut and 1 lock washer
into each. Place the firebox shelf in
behind, right up against the lower
facing panel.
step 5
Locate the upper facing panel that will be attached to the left and right legs and
will sit above the firebox. Position this panel with the finished side facing the front
of the mantel. Line up the holes on each side and insert and tighten 1 wingnut and
1 lock washer on each side.
step 1
step 2
step 4
step 5
2 1
