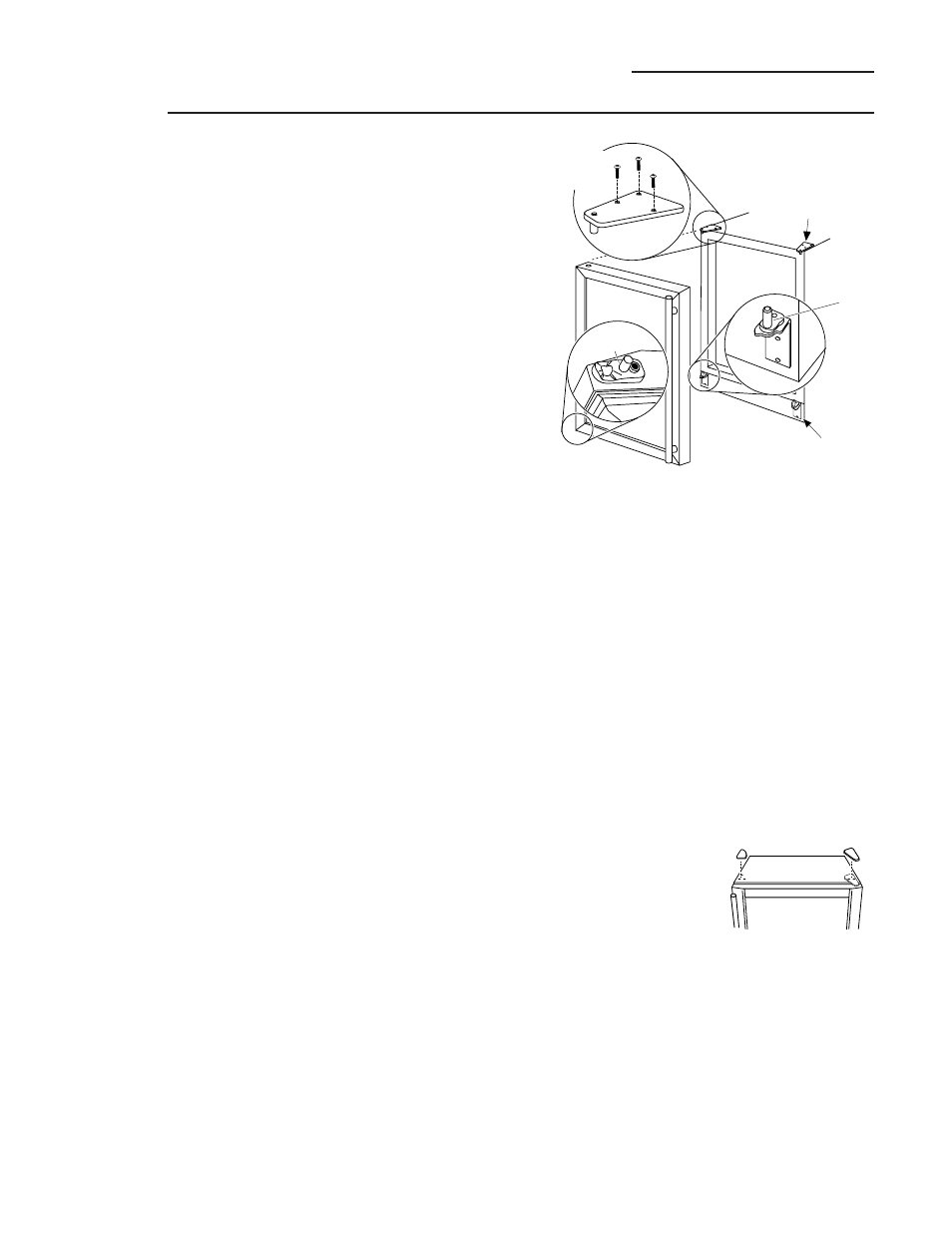

Reversing the Door Swing
Beverage Center
To reverse
the door
Remove
Top Hinge
Remove
Hinge
Install
3 Hinge
Screws
Door Stop
and Cam Riser
Hinge
Pin and
Bracket
Parts included:
1.
Top left case hinge
2.
Bottom left case hinge
3.
Left and right side decorative hinge
cover
4.
Decorative hinge screw hole cover
5.
Torx
®
driver bit
Tools required:
1.
Phillips screwdriver
2.
Electric drill
To remove the door:
1.
Flatten the shipping carton to use as
a pad.
2.
Remove the 2 screws and the toekick.
Set aside the screws and toekick for
final installation.
3.
Use the supplied Torx
®
bit and electric
drill to remove the 3 screws holding
the top case hinge. Lift off the hinge.
(Screws will be used to install the
new hinge.)
4.
Lift the door off the bottom case
hinge.
5.
Remove the bottom case hinge pin
and bracket.
Rotate the door:
The handle will be on the right side of the
door; hinges will be installed on the left
side of the case.
1.
Remove the doorstop and cam riser
on the original bottom right side of
the door.
2.
Remove the fill plug on the top right
side of the door.
3.
Turn the door over and reinstall the
fill plug on the new left side.
To reinstall the door:
1.
Install the original door stop and
cam riser onto the bottom left side
of the door.
2.
Install the new supplied bottom case
hinge pin and bracket onto bottom
left side.
3.
Place the door onto the bottom case
hinge.
4.
Install the supplied left-hand top case
hinge with the 3 original screws.
5.
Select the hinge cover marked with
an “L”.
6.
Peel backing off the tape inside the
decorative hinge cover.
7.
Press and snap
the hinge cover
into place.
8.
Snap the screw
hole cover into
place on the
opposite side.
Important:
Check to be sure screws are
tight and that the door is straight and
does not sag. The door should swing freely.
Note:
See Installation Instructions to
apply hinge cover and screw hole cover.
Position nameplate:
Apply the Monogram nameplate on the
door using the template included in the
installation instructions.
Install Covers
