Fisher-Price MX3 73535 - Manual (Page 10)

9 /
16
" Lock Nut - 2
SHOWN ACTUAL SIZE

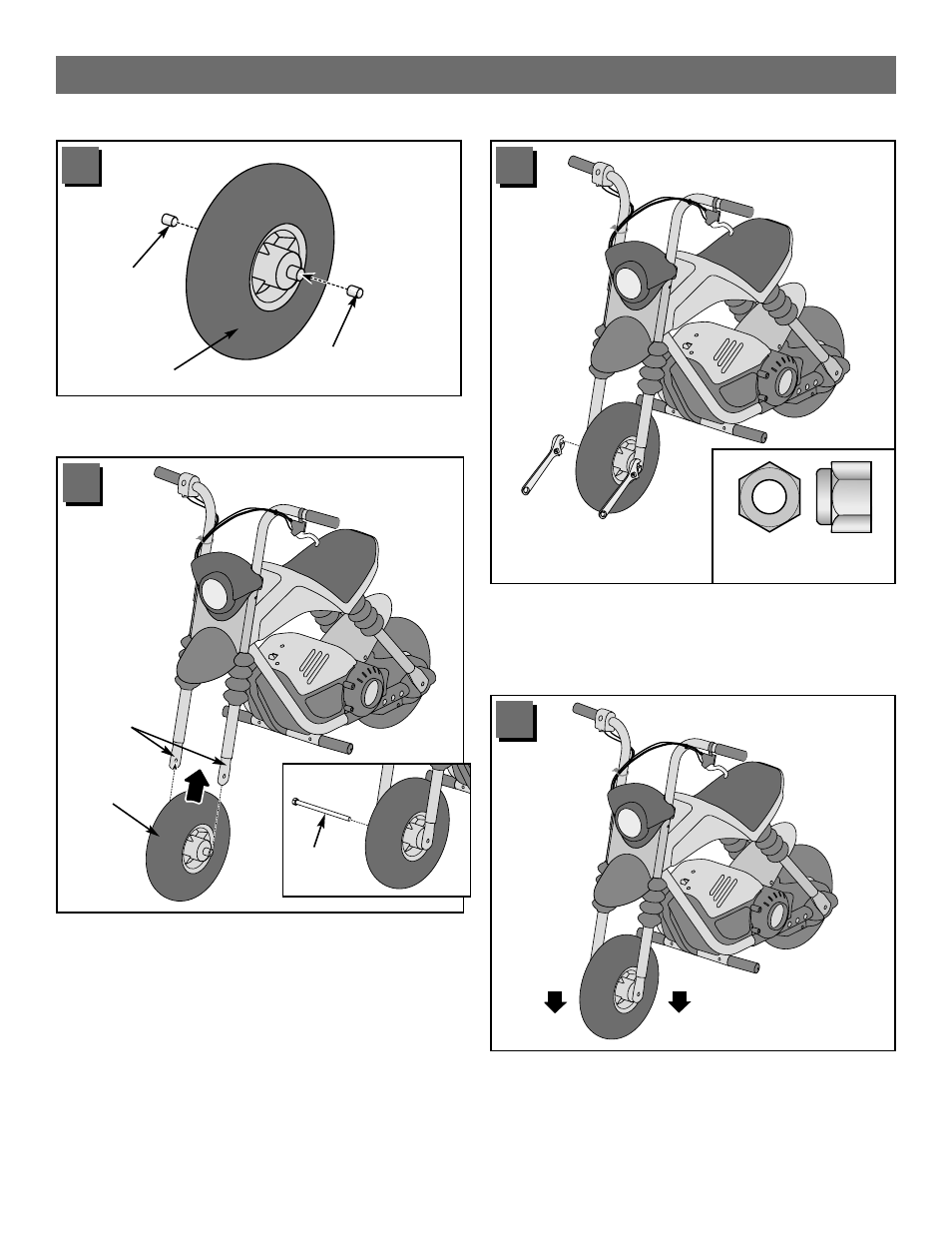

Assembly
10
• Check to be sure the wheel is secure on the front fork.
Pull the wheel down. It should not move. If it does move,
tighten the axle a few more turns with the
9 /
16
" wrench
(or another adjustable wrench).
IMPORTANT! Assembly is now complete, but you must
adjust the hand brake before first time use. Please
proceed to the section Adjusting the Brake, page 11.
• Attach the 9 /
16
" lock nut to the end of the axle. While
holding the lock nut with an adjustable wrench, tighten
the axle with a
9 /
16
" wrench (or another adjustable
wrench). Do not over-tighten.
12
13
• Fit the front wheel (with spacers inserted) between the
ends of the front fork.
• Insert the axle through one side of the front fork,
the front wheel and out through the other side of the
front fork.
11
Axle
Front Fork
Ends
Front Wheel
PULL PULL
• Fit a spacer into the hole on each side of the front wheel.
10
Spacer
Front Wheel
Spacer
