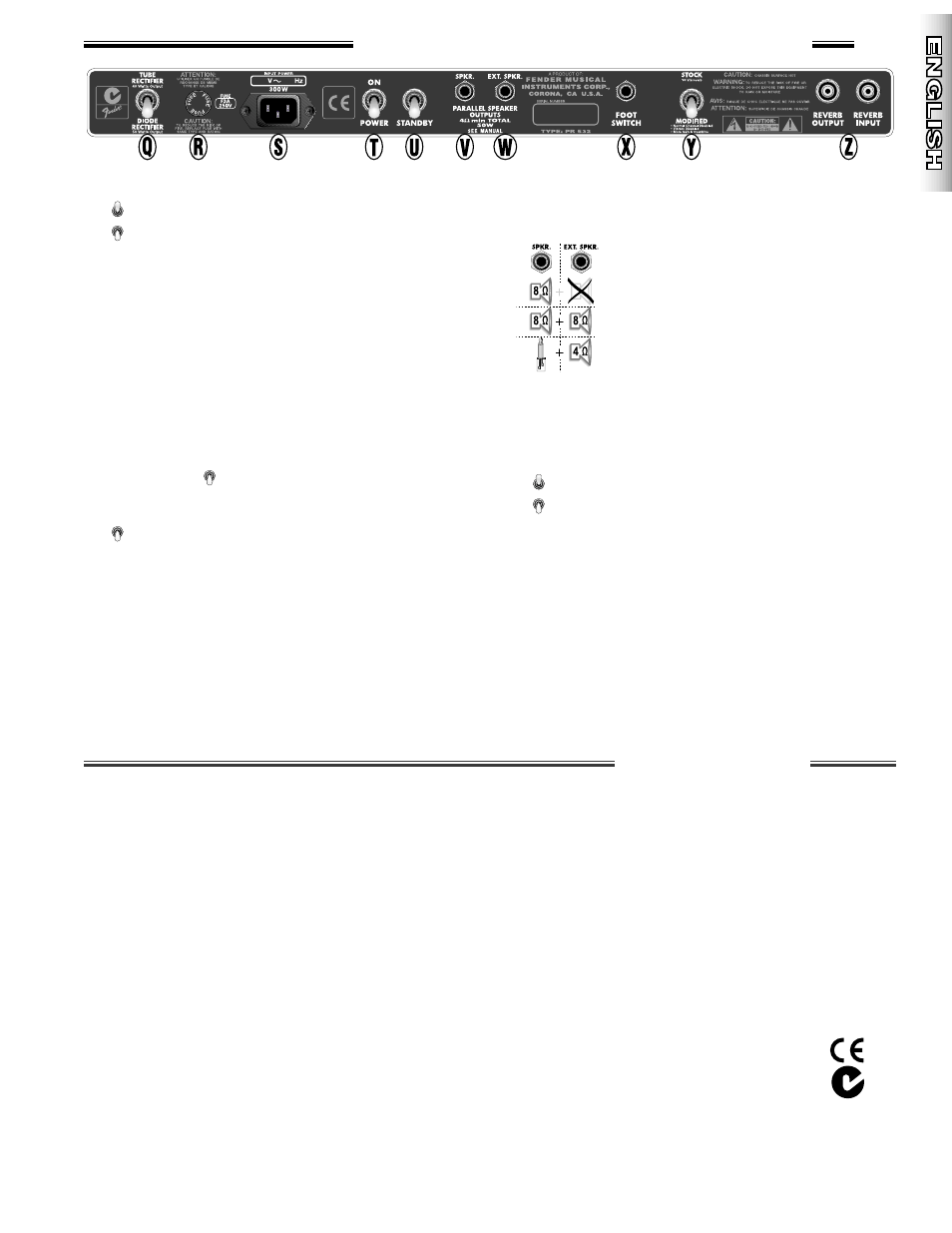

Q. RECTIFIER - Select:
TUBE (GZ34/5AR4 tube rectifier) for vintage tone.
DIODE (solid state rectifier) to boost power
output and low-frequency response.
R. FUSE - Replacement fuses must match the type and
rating specified on the rear panel of your amplifier.
Have the amplifier tested at an authorized Fender
®
Service Center if it repeatedly blows fuses.
S. IEC POWER SOCKET - The power line cord must be
connected to a grounded AC receptacle in
compliance with the voltage and frequency ratings
specified on the rear panel of your amplifier.
T. POWER - Switches the amp ON or OFF.
U. STANDBY - Use
STANDBY instead of switching
POWER OFF during short breaks to avoid tube
warm-up delay and related tube wear.
Use STANDBY for 30 seconds when switching
POWER ON to extend tube life span.
V. MAIN SPEAKER - Connection for the primary
8–ohm speaker (internal or external). See Speaker
Connections below.
W. EXTERNAL SPEAKER - Connection for an
external speaker cabinet. This jack automatically
adjusts the amplifier to accommodate an additional
8–ohm speaker when one 8–ohm speaker is
already plugged into the main SPKR. jack. A single
4–ohm speaker can be connected here if an open
plug (no speakers connected) is inserted into the
main SPKR. jack.
Speaker Connections: ALWAYS keep
1 of these 3 speaker configurations
connected to the amplifier when powered
ON to prevent damage to the amplifier:
(1) One 8–ohm speaker or
(2) Two 8–ohm speakers or
(3) An open plug and one 4–ohm speaker
X. FOOTSWITCH - Connect the footswitch (included)
to activate Vibrato and to enable remote ON/OFF
switching of Reverb and Vibrato.
Y. CIRCUIT CONFIGURATION - Select:
STOCK for traditional Vibroverb™ tone
MODIFIED for hot “Texas Blues” tone using the
VIBRATO channel.
The NORMAL channel and the Vibrato effect are
disabled when MODIFIED is selected; this
increases preamp gain, allowing more distortion
and sustain for the VIBRATO channel.
NOTE: Switching circuits may cause a “pop” sound;
use STANDBY while switching to mute if desired.
Z. REVERB OUTPUT/INPUT - RCA jacks for routing
the signal to and from the Reverb tank.
1.
2.
3.
7
TYPE:
PR 532
PART NUMBERS:
8140000000 (120V, 60Hz) USA
8140002000 (240V, 50Hz) AUS
8140004000 (230V, 50Hz) UK
8140006000 (230V, 50Hz) EUR
8140007000 (100V, 50-60Hz) JPN
POWER REQUIREMENTS:
154W
POWER OUTPUTS . . . . . . . . TUBE RECTIFIER:
40W
. . . . . . . . . . . . . . . . . . . DIODE RECTIFIER:
50W
FUSE TYPE
. . . . . . . . . 100V-120V UNITS:
3A, 250V
. . . . . . . . . . . . . . . . . . . . 230-240V UNITS:
1.6A, 250V
IMPEDANCES
. . . . . . . . . . . . . . INPUTS “1”:
1M ohms (both channels). . . . . . . . . . . . . . . . INPUTS “2”:
200k ohms (both channels)
. . . . . . . . . . . . . . . . . OUTPUT:
8 or 4 ohms
TUBES:
Two GT–6L6 GE (P/N 059778)
Four 12AX7A (P/N 013341)
Two 12AT7 (P/N 023531)
One 5AR4 (P/N 041400)
SPEAKER COMPLEMENT:
One 15 in ( 38.3 cm) Special Design Eminence® (P/N 059660)
DIMENSIONS
. . . . . . . . . . . . . . . . . HEIGHT: 20.5 in
(52.1 cm)
. . . . . . . . . . . . . . . . . . WIDTH: 25 in
(63.5 cm)
. . . . . . . . . . . . . . . . . . DEPTH: 10 in
(25.4 cm)
WEIGHT:
52 lb
(23.9 kg)
Product specifications are subject to change without notice.
