3. Hardware Connections

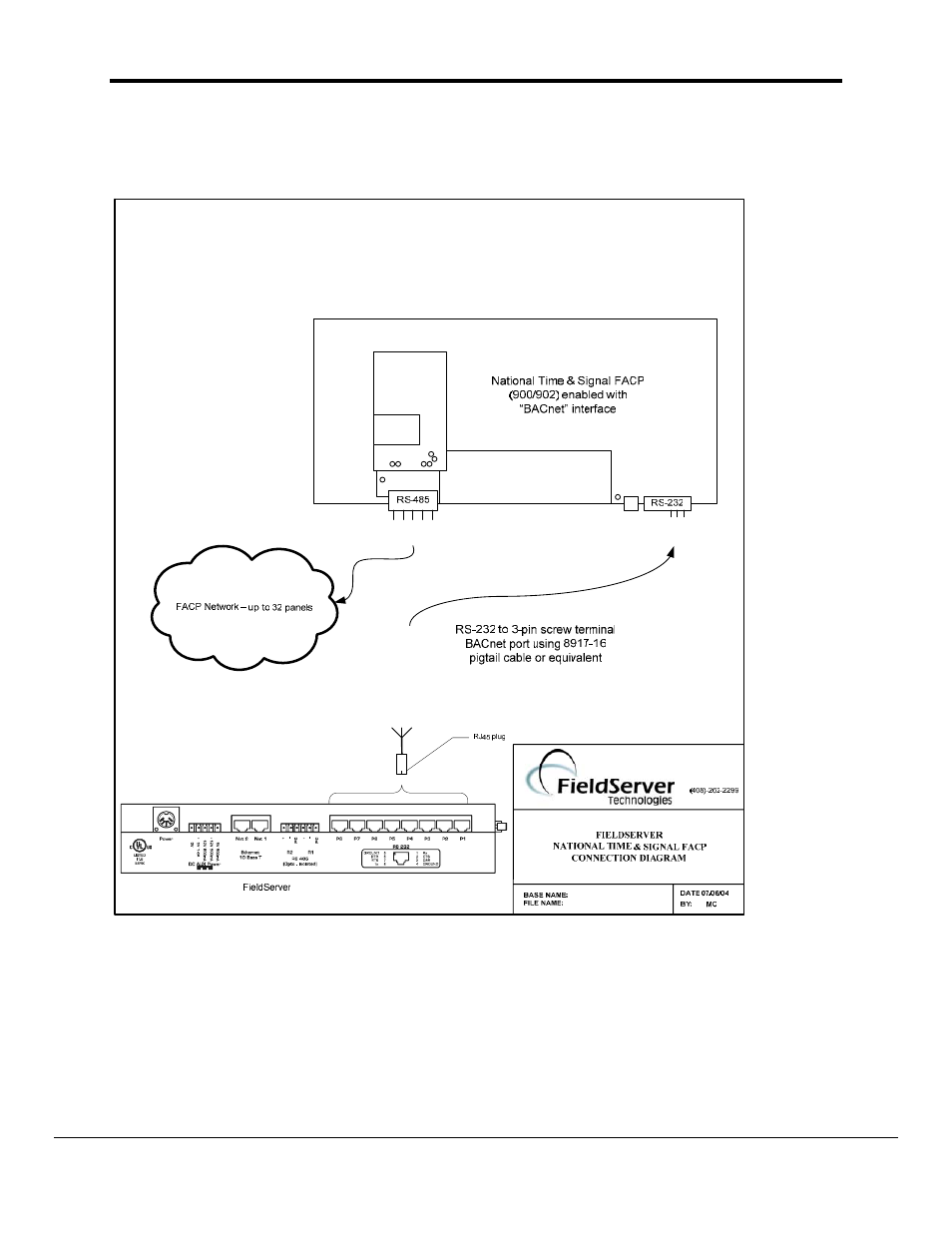

The FieldServer is connected to the ‘BACnet’ port of the FACP as shown in connection drawing.
Pin 1
= R
X
-
B
row
n
Pin 5
= GN
D
-
B
lue
/Wh
ite
Pi
n 8
= TX
-
O
rang
e/W
h
it e
TD RD GN
D
CH
1
+
CH1
-
GND CH2
+
CH2
-
1.02 Connection Notes
A FACP network consists of up to 32 panels. One of those panels acts as the network
interface by means of its ‘BACnet’ interface port. This interface serves data to the
FieldServer by means of a serial connection. Each one of these connections requires
exclusive use of a FieldServer port. Thus, only one network of FACP’s can be connected to
one FieldServer serial port.
