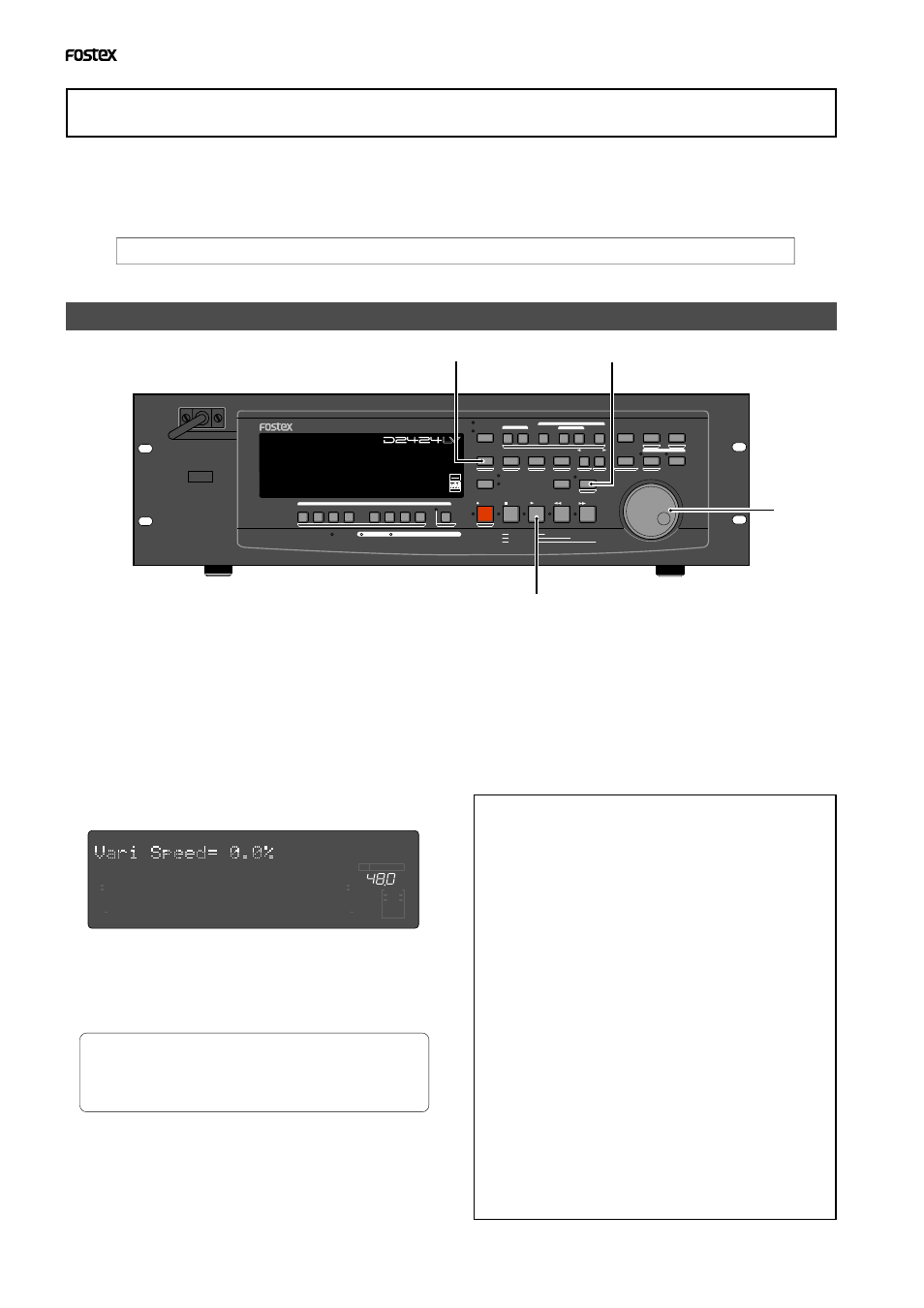

Playback using the Vari-pitch function
Vari-pitch function procedures
4. Set the desired pitch data using the Jog dial.
Rotating the Jog dial enables you to hear changes in
playback speed. Rotating the Jog dial clockwise increases
the speed, and rotating it counter-clockwise decreases the
speed.
To continue the playback with the Vari Pitch function
on, press the
[EXIT/NO]
key. This recorder exits Vari Pitch
data edit mode, indicates the previous Time Base display,
and continues playing with the Vari Pitch you just set.
5. To turn off Vari Pitch mode, press the [VARI PITCH]
key.
The VARI PITCH LED turns off, the Vari Pitch function is
cancelled, and this recorder resumes playback at normal
speed.
Initialize the recorder.
6. If you wish to play back data at the current Vari Pitch
again, press the [VARI PITCH] key to turn the LED on.
You can turn the Vari Pitch function on and off and edit
the pitch data while this recorder is playing or stopped,
but not during recording.
However, if the Vari Pitch function has already been turned
on and the pitch data was specified before you started
recording, this recorder will record using the current Vari
Pitch.
• Even if the pitch data is 0.0% (no speed change),
pressing the
[VARI PITCH]
key will still turn on the
VARI PITCH function.
The speed is not changed, but the Vari Pitch is
turned on.
• The Vari Pitch function is automatically turned
off under the following conditions:
1. You have turned off and on the power to this recorder.
The pitch data will be reset to 0.0%.
2. You must press the [EXECUTE/YES] key while
holding down the [SHIFT] key to turn the "SLAVE
mode" on (the setting pitch data remains).
3. You set "Digital In" of the SETUP mode to a “Sync”
mode ("SPDIF: Sync" or "adat: Sync") and the
recorder is locking to the external clock from DIGITAL
IN or WORD IN. In consequence, “DIGITAL” and “EXT”
indicators light in the display.
This section explains how to change the playback speed of the recorder using the Vari Pitch function.
You can set the playback speed in the range of +6.0% to -6.0% in 0.1% increments.
The
[VARI PITCH]
key turns Vari Pitch mode on and off. When the function is turned on, the VARI PITCH
LED lights up. When the function is turned off, the LED turns off.
1. Press the [PLAY] button to play this recorder.
2. Press the [VARI PITCH] key.
The VARI PITCH key LED lights up on the display, indicating
that the Vari Pitch function is turned on.
3. Press the [RECALL] key, then press the [VARI PITCH]
key.
The current pitch data flashes on the display, indicating
that you can change the pitch data now. (The “%” mark
flashes.)
∞
