14
Model D2424LV Quick Operation Guide

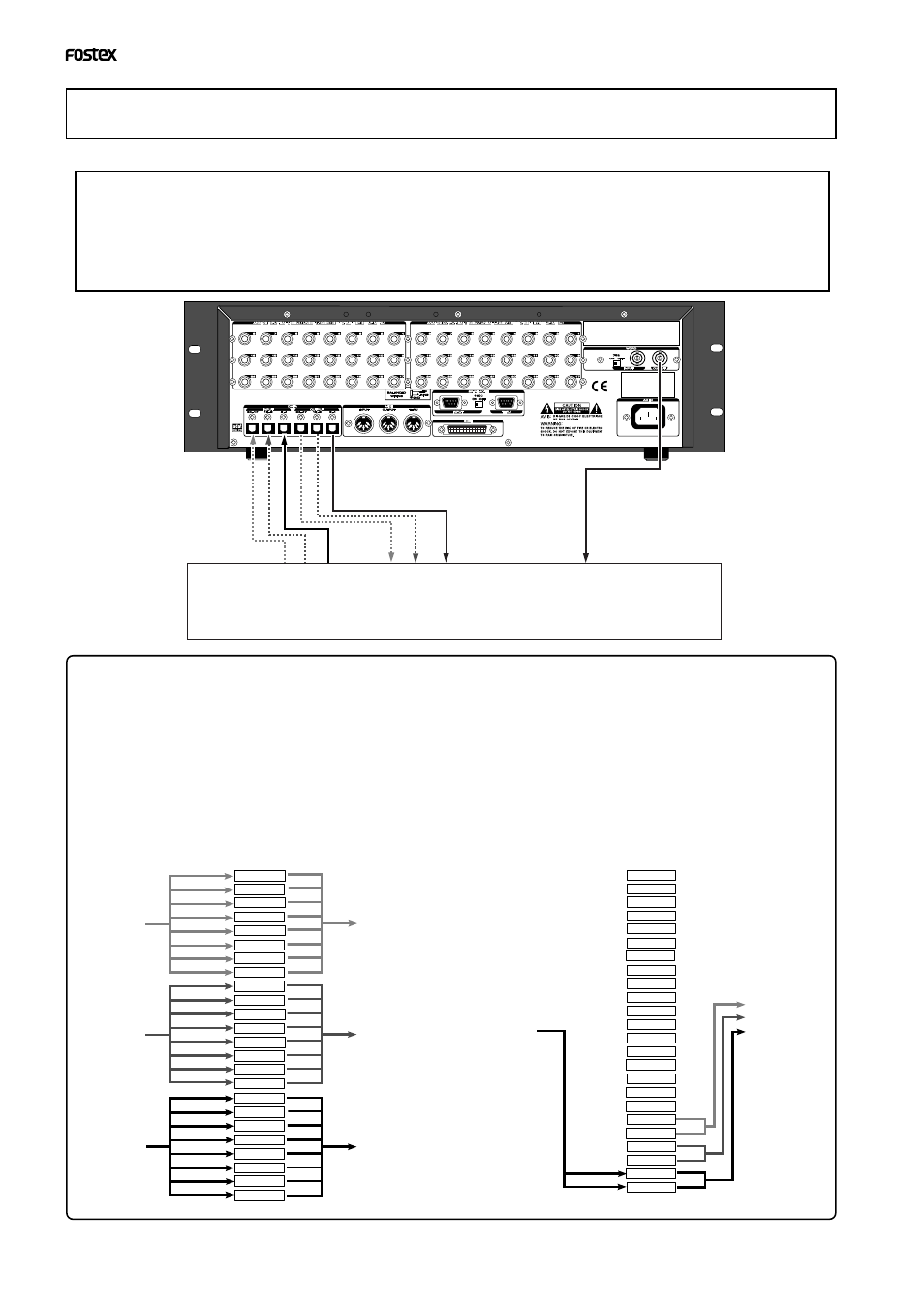

Connecting a digital mixer
• When connecting the recorder to a digital mixing console, make sure that the power of both units are
off.
• The
[DATA INPUT]
and
[DATA OUTPUT]
connectors do not support adat digital signals of 96-kHz Fs.
In other words, the unit cannot receive of feed an adat digital signal of 96-kHz Fs.
When making connections with a digital recording mixer, refer to the connecting example below.
[DATA IN/OUTPUT]
1-8
,
9-16
and
17-24
can all be used
for record/playback of adat digital signals.
Signals to
[DATA INPUT]
1-8
,
9-16
and
17-24
will, re-
spectively, be assigned to
tracks 1-8
,
9-16
and
17-
24
, and recorded.
At playback, the track outputs are respectively
assigned from each
[DATA OUTPUT]
connectors in
the same manner.
: Except for 96-kHz Fs adat digital signals.
At record/playback of S/P DIF digital signals, in-
put connectors
[DATA INPUT] 1-8
only can be used
and the output ports will be
[DATA OUTPUT] 1-8
,
9-
16
and
17-24
.
Signals input to
[DATA INPUT] 1-8
will be assigned
and recorded in tracks 1 and 2.
At playback, signals output from track 1-2, 3-4
and 5-6 will be, respectively, assigned and out-
put from
[DATA OUTPUT] 1-8
,
9-16
and
17-24
.
DATA IN 1-8
TRK 1
TRK 2
TRK 3
TRK 4
TRK 5
TRK 6
TRK 7
TRK 8
TRK 9
TRK 10
TRK 11
TRK 12
TRK 13
TRK 14
TRK 15
TRK 16
TRK 17
TRK 18
TRK 19
TRK 20
TRK 21
TRK 22
TRK 23
TRK 24
DATA OUT 17-24
DATA OUT 9-16
DATA OUT 1-8
DATA IN 9-16
DATA IN 17-24
DATA IN 1-8
TRK 1
TRK 2
TRK 3
TRK 4
TRK 5
TRK 6
TRK 7
TRK 8
TRK 9
TRK 10
TRK 11
TRK 12
TRK 13
TRK 14
TRK 15
TRK 16
TRK 17
TRK 18
TRK 19
TRK 20
TRK 21
TRK 22
TRK 23
TRK 24
DATA OUT 17-24
DATA OUT 9-16
DATA OUT 1-8
Digital mixer
