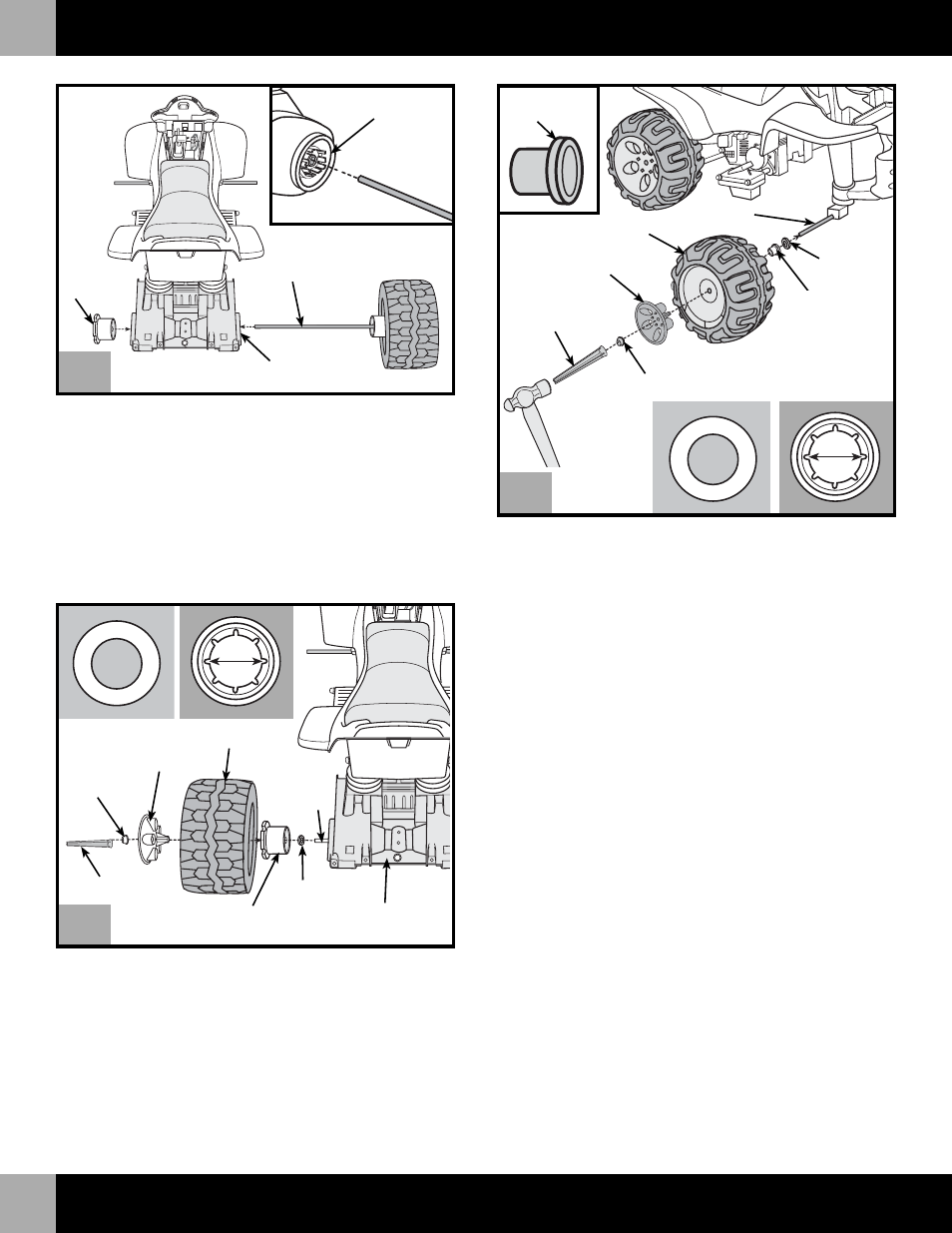

• Face the front end of the vehicle.
• Using safety scissors, cut the plastic tie near the front axle.
• Slide a
7 / 16 " washer onto one of the front axles.
• Slide a round bushing, ring end first, onto the front axle.
• Slide a wheel, ribbed side first, onto the front axle.
• Slide a hubcap, indented side out, onto the front axle.
• Fit a .437 cap nut on the end of the front axle.
• Fit the cupped end of the cap nut assembly tool over the cap nut.
Tap the end of the cap nut assembly tool with a hammer to secure
the cap nut on the end of the axle.
• Repeat this procedure to assemble a 7 / 16 " washer, round bushing,
wheel, hubcap and cap nut to the other front axle.
4
8
ASSEMBLY F
5
J7826a-0920
7 / 16 " Washer
Rear Wheel
Driver
Cap Nut
Cap Nut
Assembly Tool
Hubcap
Motor Assembly
Rear Axle
.437"
.437"
Wheel
Round
Bushing
7 / 16 "
Washer
Hubcap
Cap Nut
Assembly
Tool
Cap Nut
Front Axle
3
• Face the back end of the vehicle.
Hint: You will use the other rear wheel driver to properly position the
rear axle assembly into the motor assembly.
• Fit the other rear wheel driver against the motor pins on one end of
the motor assembly, as shown.
• While holding the rear wheel driver in place, slide the rear axle
assembly into the hole in the opposite side of the motor assembly.
Make sure the rear wheel driver on the rear axle assembly fits onto
the pins in the motor assembly.
• Slide the rear wheel driver off the end of the rear axle.
Rear Axle Assembly
Motor Assembly Pins
Rear Wheel
Driver
Motor Assembly
Wheel
• Slide a 7 /
16
" washer onto the rear axle.
• Slide the rear wheel driver onto the rear axle. Make sure the rear
wheel driver fits onto the pins in the motor assembly.
• Slide a wheel onto the rear axle. Make sure the ribs on the wheel fit
into the grooves on the rear wheel driver.
• Slide a hubcap, indented side out, onto the rear axle.
• Fit a .437 cap nut on the end of the rear axle. Fit the cupped end of the cap
nut assembly tool over the cap nut. Tap the end of the cap nut assembly
tool with a hammer to secure the cap nut on the end of the rear axle.
Hint: You may need the help of another adult to support the other end
of the rear axle.
Round Bushing
Ring End
