H7332pr-0920
• Fit a .437 cap nut on the curved end of the steering column.
• Support the steering column and tap the cap nut with a hammer to
secure it on the end of the steering column.
Hint: You may need the help of another adult to support the other
end of the steering column while you tap the cap nut with a hammer.
• Lower the front end of the vehicle.
10

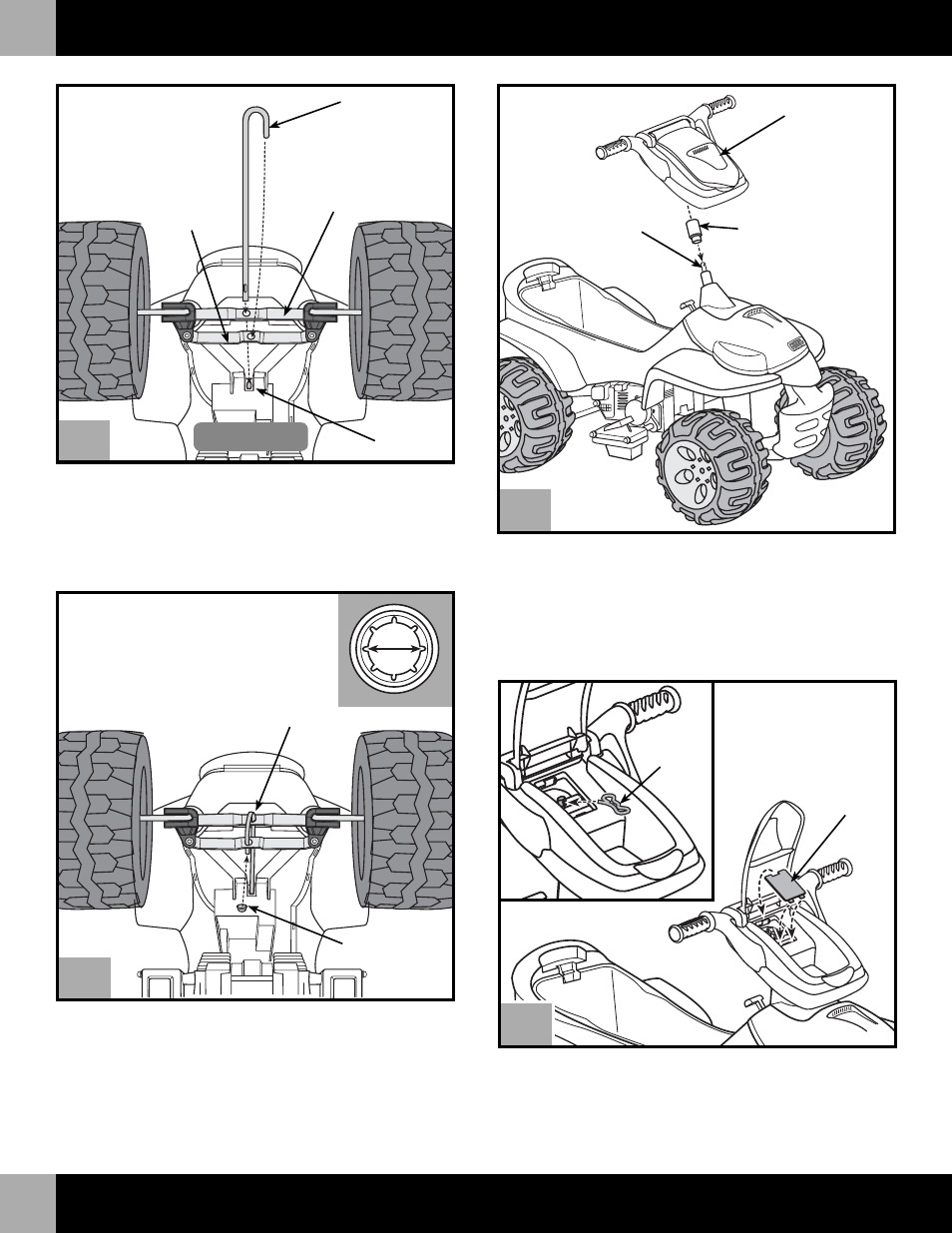

ASSEMBLY F
J7826a-0920
• Lift the front end of the vehicle.
• Slide the straight end of the steering column through the hole in the
upper steering linkage and out through the hole in the vehicle.
• Insert the curved end of the steering column into the hole in the
lower steering linkage.
Steering
Column
Lower Steering
Linkage
Upper Steering
Linkage
Hole
Steering
Column
Cap Nut
.437"
Bottom View 10
11
TM
• Slide the steering bushing, narrow side down, onto the steering
column and into the vehicle neck.
• Fit the handlebar assembly onto the end of the steering column.
Hint: You may want the help of another adult to support the steering
column near the steering linkage while assembling the handlebar to
the vehicle.
Steering
Column
Handlebar
Assembly
12
13
• Open the handlebar cover and pull the end of the steering column up.
• Fit the cotter pin through the hole in the end of the steering column.
Push the steering column down.
• First fit the tabs on the handlebar plate into the slots in the handle-
bar, and then rotate down to "snap" in place.
Cotter
Pin
Handlebar
Plate
Steering
Bushing
