WARNING: Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause permanent eye damage or blindness.
Never operate the UV-Aire Air Purifying System out of the plenum. Avoid touching the glass portion of the lamp with your hands.
WARNING: Disconnect electrical power supply before wiring.

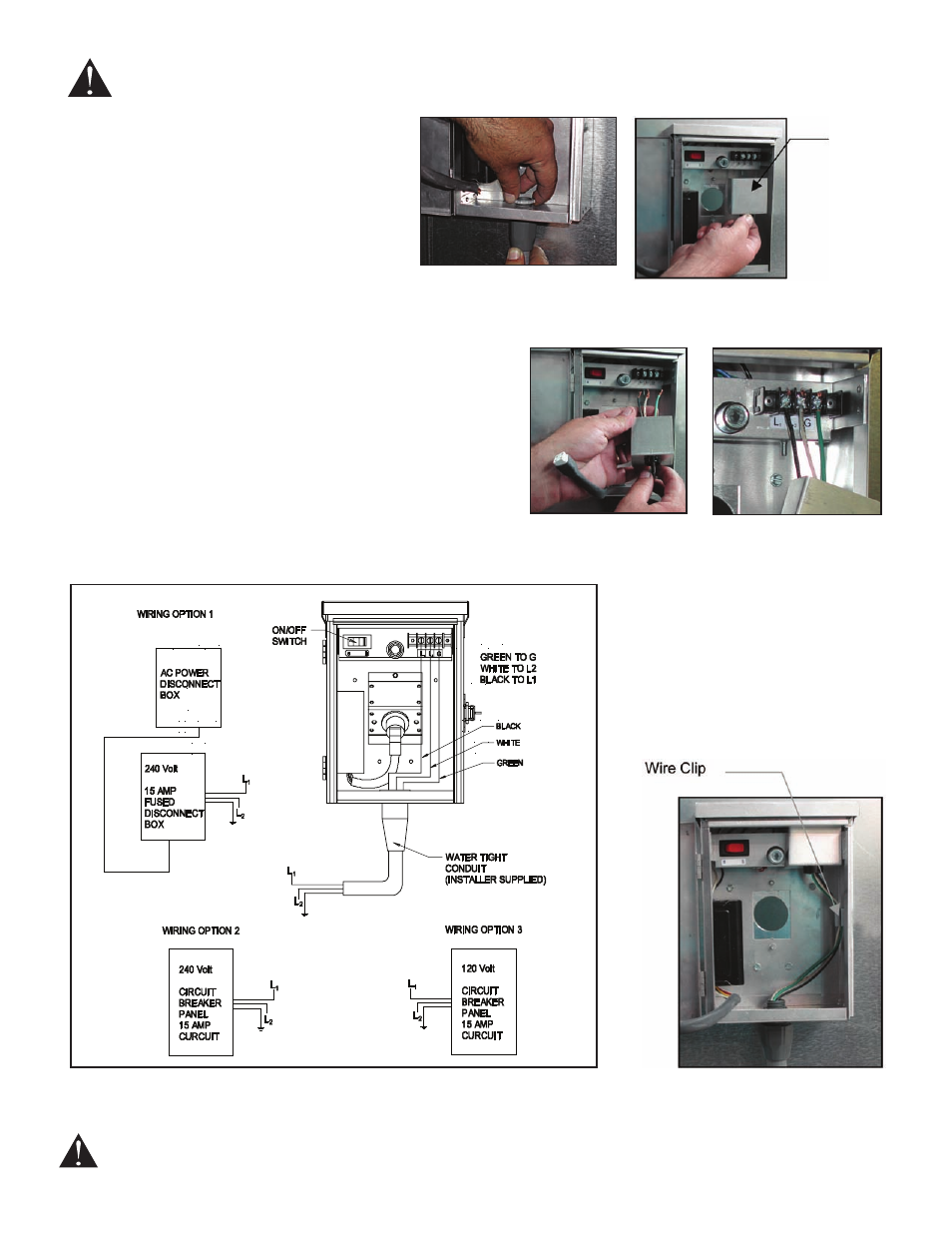

Connect to an appropriate power source 8.
such as an AC power disconnect box or
to a circuit breaker panel. (See Figure 8)
Determine length of wire and conduit 9.
necessary according to power
connection and install wiring conduit
and water tight connector as shown in
example figure 4. (Supplied by installer.)
Remove wiring access cover to expose 10.
terminal block. (Figure 5)
Push power source wires through bushing in access 11.
cover then begin securing wires according to the wiring
diagram in figure 8. (See Figures 6 & 7)
Replace access cover. 12.
Group wires together and tuck in wire clip on right side 13.
of box. (See Figure 9)
Determine whether to use flat or angled bracket. (Refer 14.
to UV-Aire Configurations Section)
Figure 7 Figure 6
Figure 8
Figure 9
Figure 4
Figure 5
Access
Cover
