Space Requirements
When installing the switch and providing maintenance, ensure the space below is maintained.

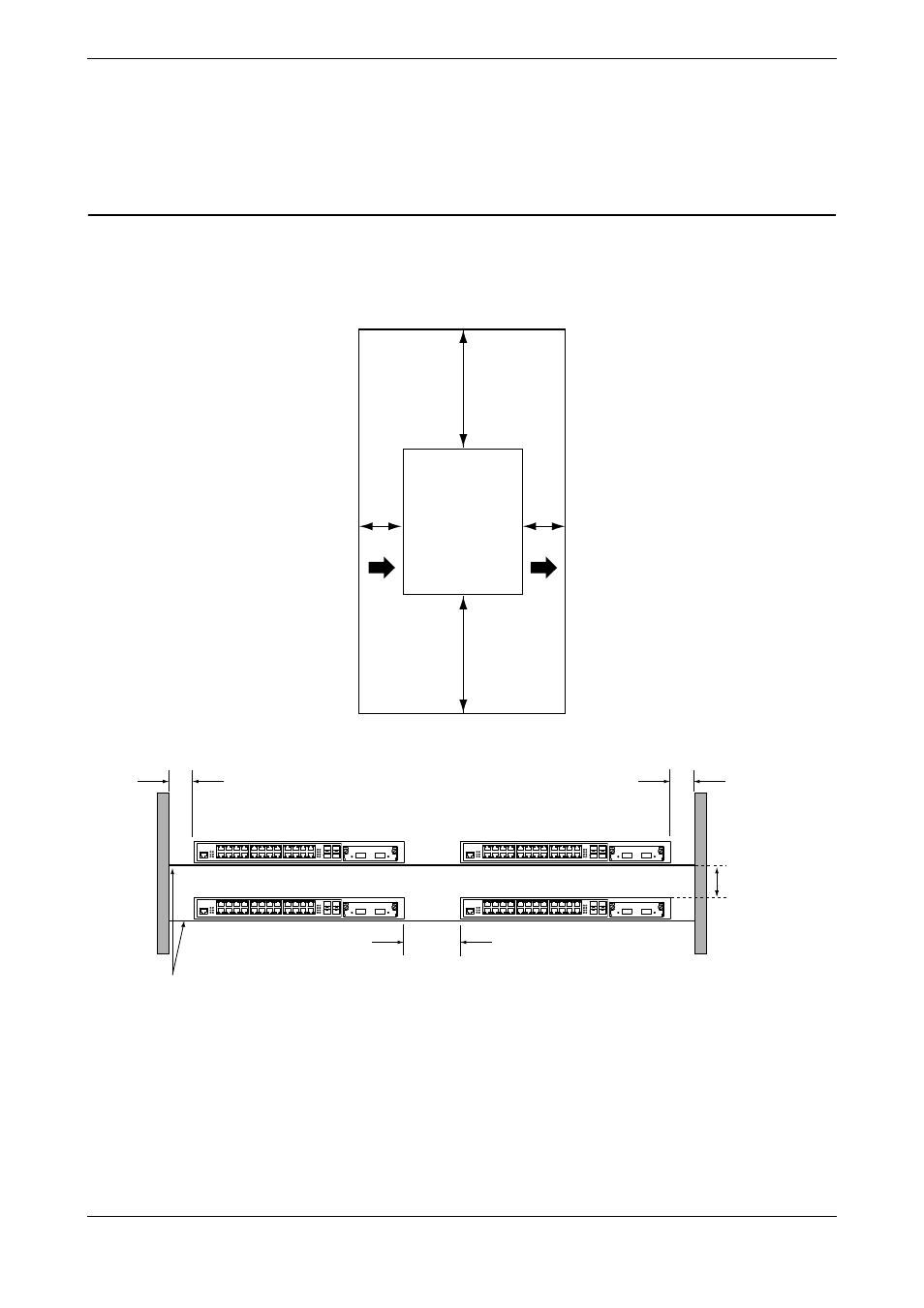

Ensuring the Space for Installation (Maintenance) of the Switch
When installing the switch and providing maintenance, ensure the space below is maintained.
Internal cooling fans of the switch allow the air intake from the left hand side and exhaust at the right hand side.
Ensure the indicated space below and do not put anything which avoids airflow.
Port Side
50mm
200mm
200mm
50mm
XG0224
Airflow
Airflow
100 or more
50 or more
50 or more
50 or more
Installation shelf
Unit: mm
