FRYMASTER FPHD65 SERIES GAS FRYERS

CHAPTER 5: FILTRATION OPERATION

5-6

5.2.5 Assembling the Filter (cont.)

FILTER LEAF

1. Remove the filter pan from the fryer by

pulling out on the filter pan handle.

2. Remove the crumb basket by lifting it up and

out of the filter pan. Be careful not to damage
the tubes or connectors in the pan.

3. Remove the filter leaf by lifting up on the

pickup tube and raising the filter leaf
assembly gently out of the filter pan.

4. Clean the filter leaf assembly, crumb screen,

and pan with warm soapy water. Thoroughly
rinse and dry.

5. When it is clean, place the filter leaf carefully

back into the filter pan.

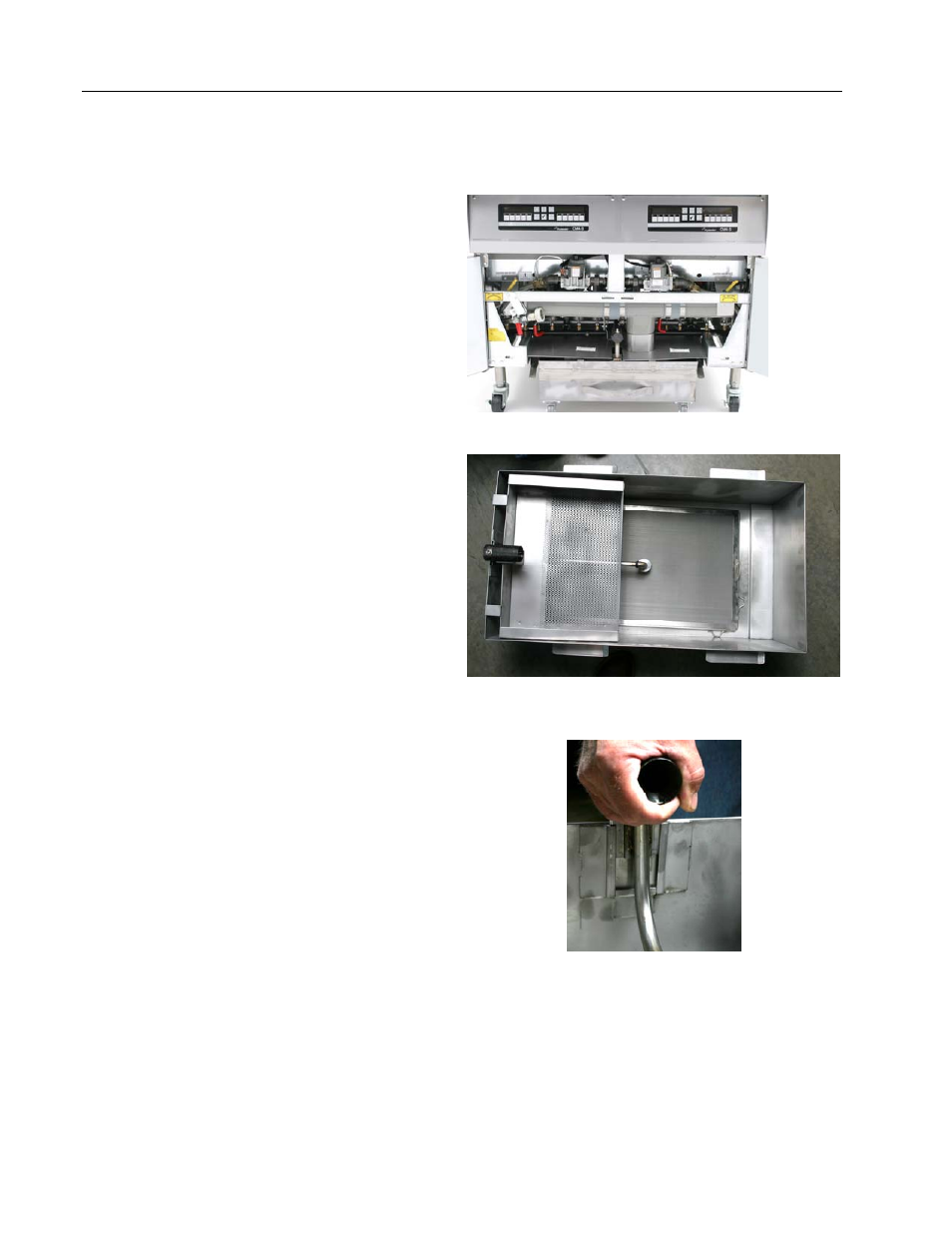

Pull out on the handle to remove the filter pan.

Remove the crumb screen by lifting it up and out.

Carefully remove the filter leaf assembly.
