Assembly
CAUTION
Rear Axle
Cap Nut
Scrap Block
of Wood
1

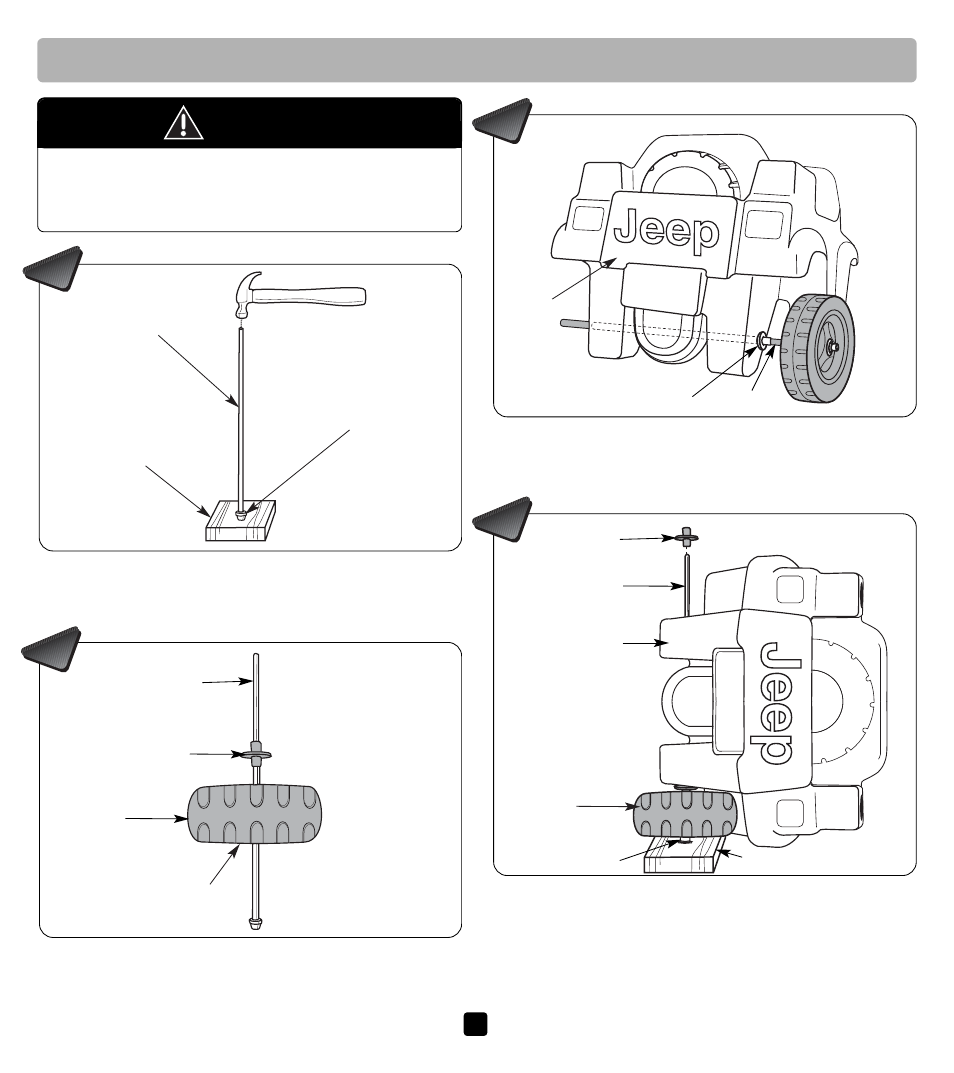

• Place a cap nut on a scrap block of wood.
• Fit the rear axle into the cap nut and tap with a hammer
until secure.
• Slide a wheel, spoke side down, onto the rear axle.
• Slide a spacer onto the rear axle.
Rear Axle
Wheel
Spoke Side Down
Spacer
2
• Insert the rear axle through the holes in the rear of the
vehicle body. Make sure the spacer fits into the hole in
the vehicle body.
Spacer
Rear Axle
3
• Turn the vehicle body on its side with the end of the
rear axle facing up.
• Lift the vehicle body up slightly and fit a cap nut tool on
the cap nut.
• Slide a block of wood under the cap nut tool to support
the rear axle.
• Fit the other spacer onto the rear axle and into the hole
in the vehicle body.
Scrap Block of Wood
Vehicle Body
Cap Nut Tool
Vehicle
Body
Spacer
Rear Axle
4
3
Please keep small parts and plastic
bags out of children’s reach. Dispose of
plastic bags properly.
Wheel
