Assembly
11
Steering
Column
Cap Nut
Handlebar
Hole
Handlebar
Wire
Harness

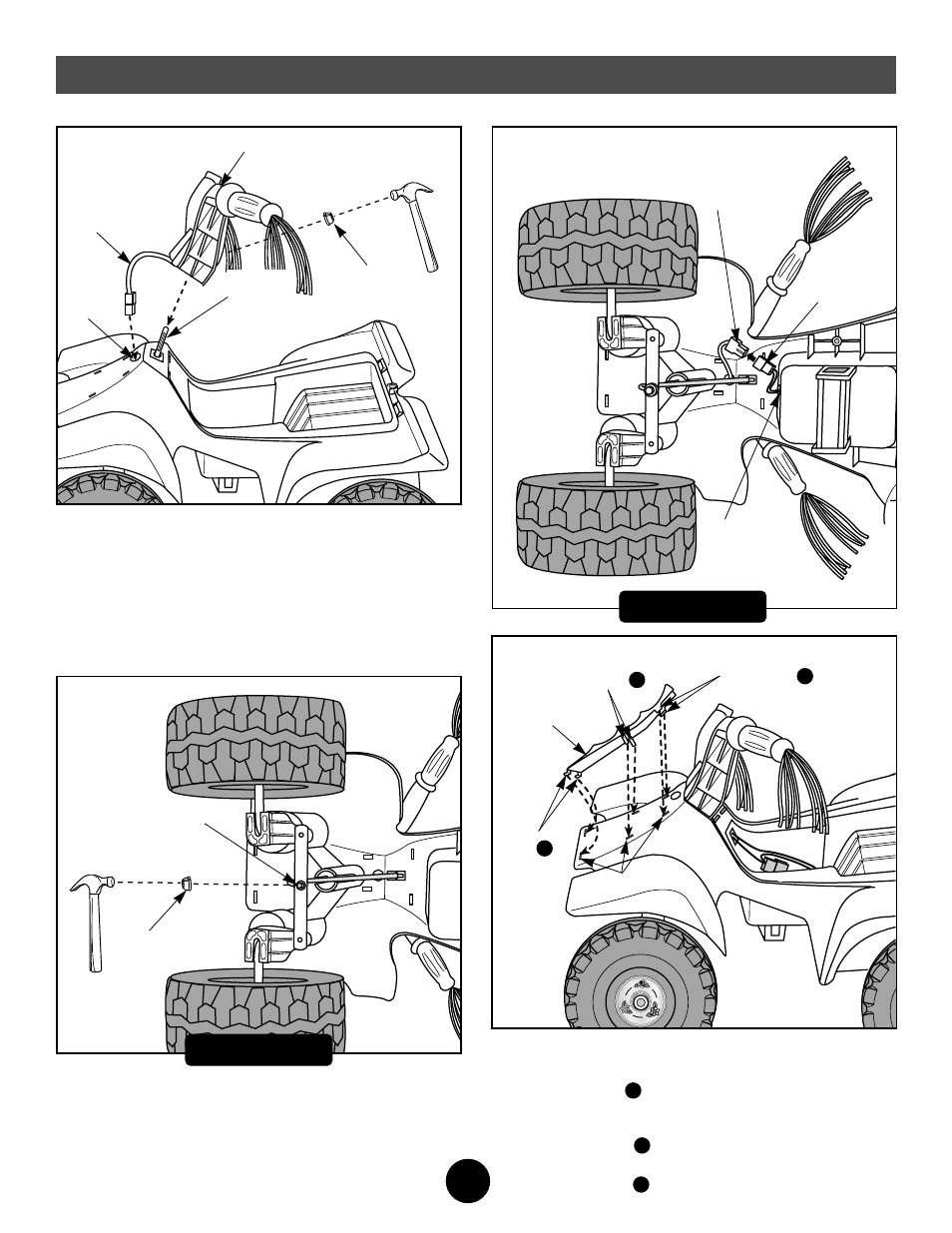

• Position the vehicle body upright.
• While fitting the handlebar onto the end of the steering
column, insert the end of the handlebar wire harness
through the hole in the front of the vehicle body.
• Fit a cap nut onto the end of the steering column.
• Tap the cap nut with a hammer to secure it on the end
of the steering column.
Cap Nut
End of Steering
Column
• Turn the vehicle body on its side.
• Fit a cap nut on the end of the steering column.
• Tap the cap nut with a hammer to secure it on the end of
the steering column.
15
14
Bottom View
Main Wire
Harness
Connector
Opening
Handlebar Wire
Harness
Connector
16
Bottom View
• Position the vehicle body upright.
• Fit the front tabs on the grille into the slots in the front of
the vehicle body . Press firmly to snap the front tabs
into the slots.
• Press firmly on the middle of the grille to snap the middle
tabs into the slots .
• Press firmly near the back of the grille to snap the back
tabs into the slots . C
B
A
Grille
Front
Tabs
Middle
Tabs
Back Tabs
Slots
A
B
C
17
