Assembly – Fisher-Price C1454 User Manual
Page 4

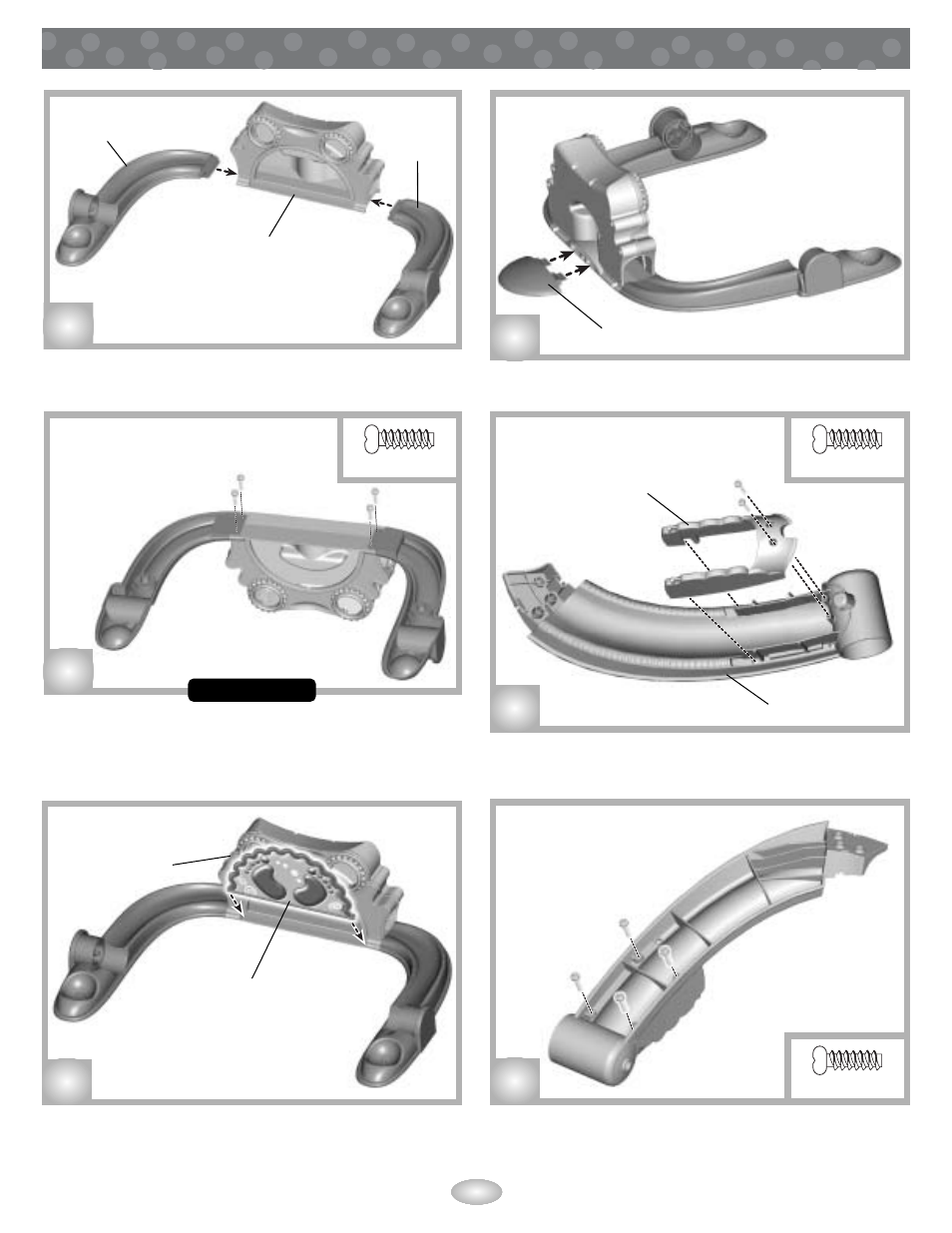

Assembly
4
1
• Insert a track into one side of the base as shown.
• Insert the other track into the opposite side of the base.
Track
Track
2
• Turn the assembly over so the bottom of the base is facing you.
• Insert four #8 x
1
/
2
"
screws through the base and into the tracks.
Tighten the screws.
• Turn the base upright.
#8 x
1
/
2
" Screw
3
• Position the base door so that the decorated side is facing you.
• Insert the peg on one end of the base door into the hole in the base.
• Bend the door slightly and insert the other peg into the hole in the base.
Base Door
Base
Base
4
• Insert and “snap” the base support into the base.
Base Support
6
• Turn the ramp over and insert four #8 x
1
/
2
"
screws into the back of the
ramp. Tighten the screws with a screwdriver.
• Repeat this procedure to attach the other ramp cover.
5
• Fit a ramp cover onto a ramp as shown.
• Insert two #8 x
1
/
2
"
screws into the top of the cover and tighten them.
Ramp Cover
Ramp
Bottom View
#8 x
1
/
2
" Screw
#8 x
1
/
2
" Screw
