Follett 110CT400A/W - Manual (Page 28)

28
Part # Description Reference
501802 Baffle, ice 1
501493 Wheel, dispense (includes drive bar, rotating agitator, threaded bar & rod) 2
501494 Agitator, rotating 3
502712 Bracket, ice tube 4
501100 Screw 5
501612 Rod, threaded (includes knurled nut) 6
501617 Drive bar assembly (includes threaded rod and nut) 7
501616 Ice deflector/cap tube bracket (units with top mounted icemaker) 8
502698 Bracket, ice tube entry (units with top mounted icemaker) 9
502697 Ice transport tube assembly (units with top mounted icemakers) 10
501613 Screws, knurled 11
502723 Side panel, RH 12
502722 Side panel, LH 13
502714 Bracket, icemaker hold-down 14
502717 Cover, hopper access 15
502708 Cover, hopper 16
502709 Lid, Icemaker, 110CT 17
502824 Gasket, ice entry 18
00120279 Kit, ice tube entry, top mount 19
00115196 Drain pan, hopper Not shown
Dispense wheel – bottom view all units
Top view – freestanding and Satellite-fill units
4.5
1
2
3
6
Top view – top mounted unit
Ice tube bracket – side view
– all top mounted units
7

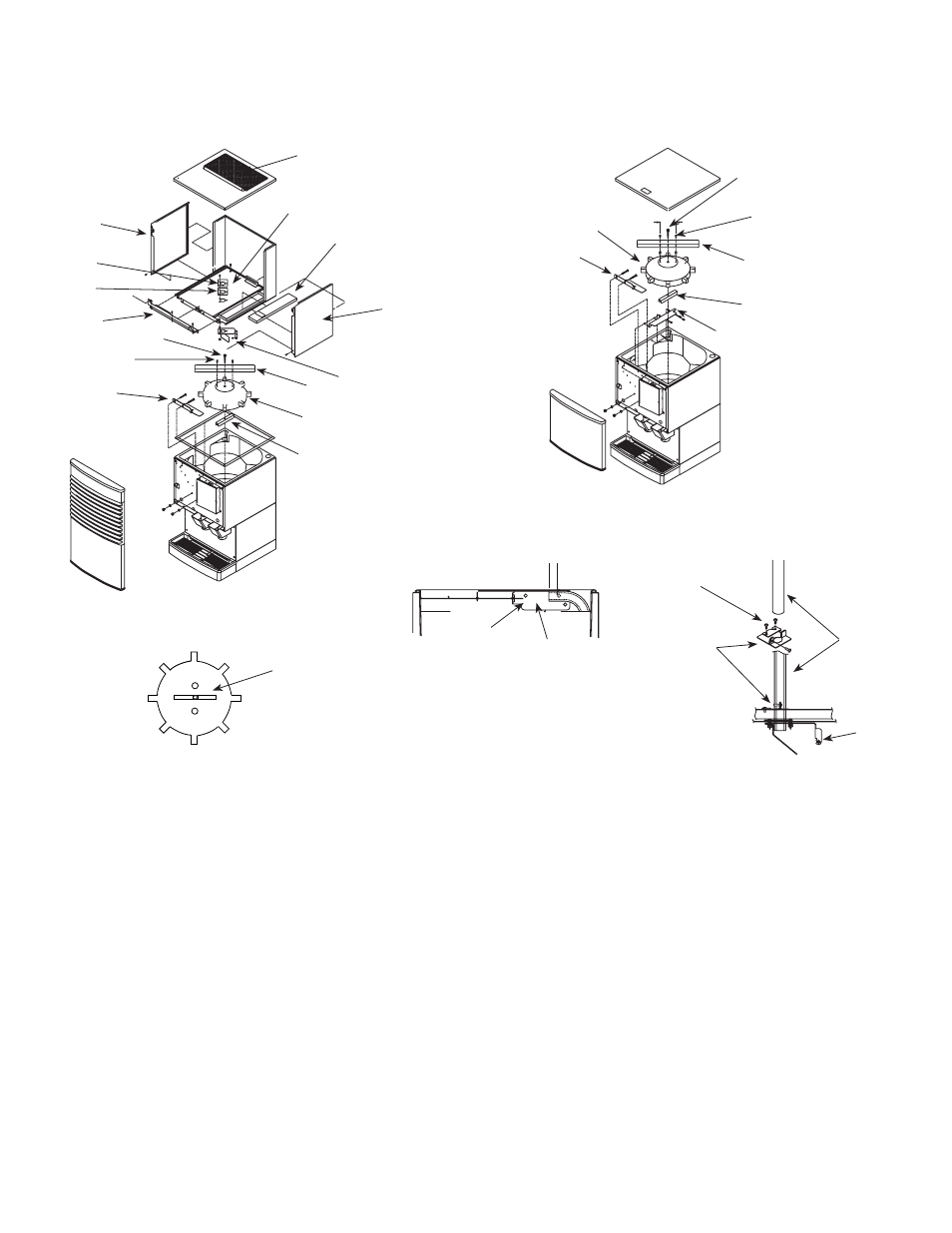

Hopper components
1
2
6
5
4
3
5
7
Ice tube bracket – side view –
freestanding & Satellite-fill units
4 9
10
8
7
8
12
15
16
13
14
5
17
11
18
19
