Electrical box (front view) – sensorsafe models, Wheel motor and drive system – Follett 110CT400A/W User Manual
Page 27
Part #
Description
Reference
500514 Thermostat,
bin
level
1
502209
Switch, dispenser power
2
502209
Switch, icemaker bin signal
2
502242 Control
board,
SensorSAFE
3
502359
Clean switch, SensorSAFE
Not shown
501841
Boot, clean switch
Not shown
Part #
Description
Reference
501861
Wheel motor, 120V, 60Hz
1
501026 Washer,
thrust
2
501607
Fan blade, wheel motor
Not shown
501619
Drive shaft (includes threaded rod and nut, see #6, page 26)
3
502691 Chain,
54
link
4
502692
Sprocket, drive shaft, 35 teeth
5
501019
Sprocket, wheel motor, 10 teeth
6
501024 Bearing,
drive
shaft
7
500799
Connecting link, chain
Not shown
500637 Key,
drive
shaft
8
5502020
Dispenser drive assembly
Parts 1-8 above

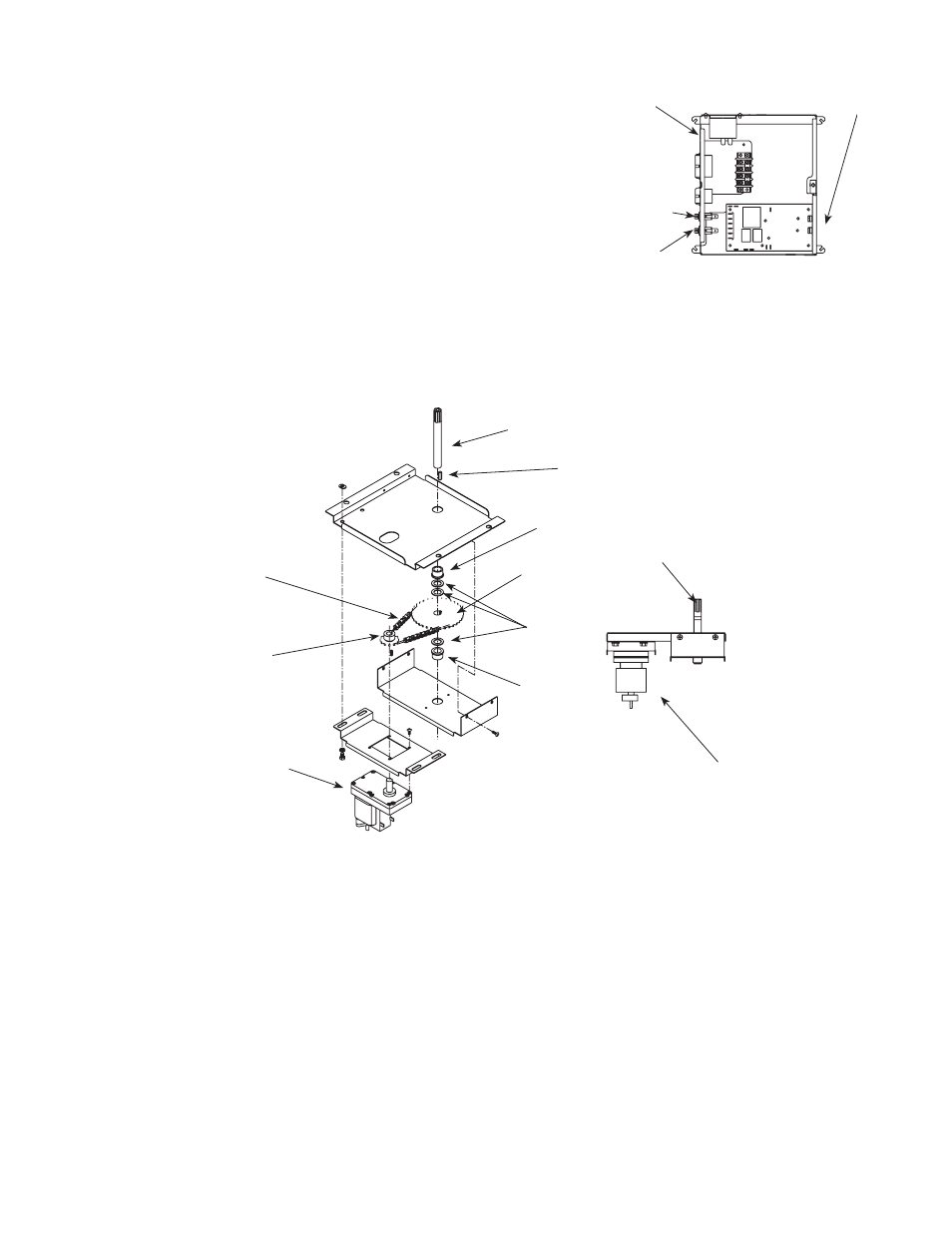

Electrical box (front view) – SensorSAFE models
1
2
3
2
1
2
4
3
3
5
Wheel motor and drive system
27
1
6
7
8
7
