iv
SYSTEM OVERVIEW

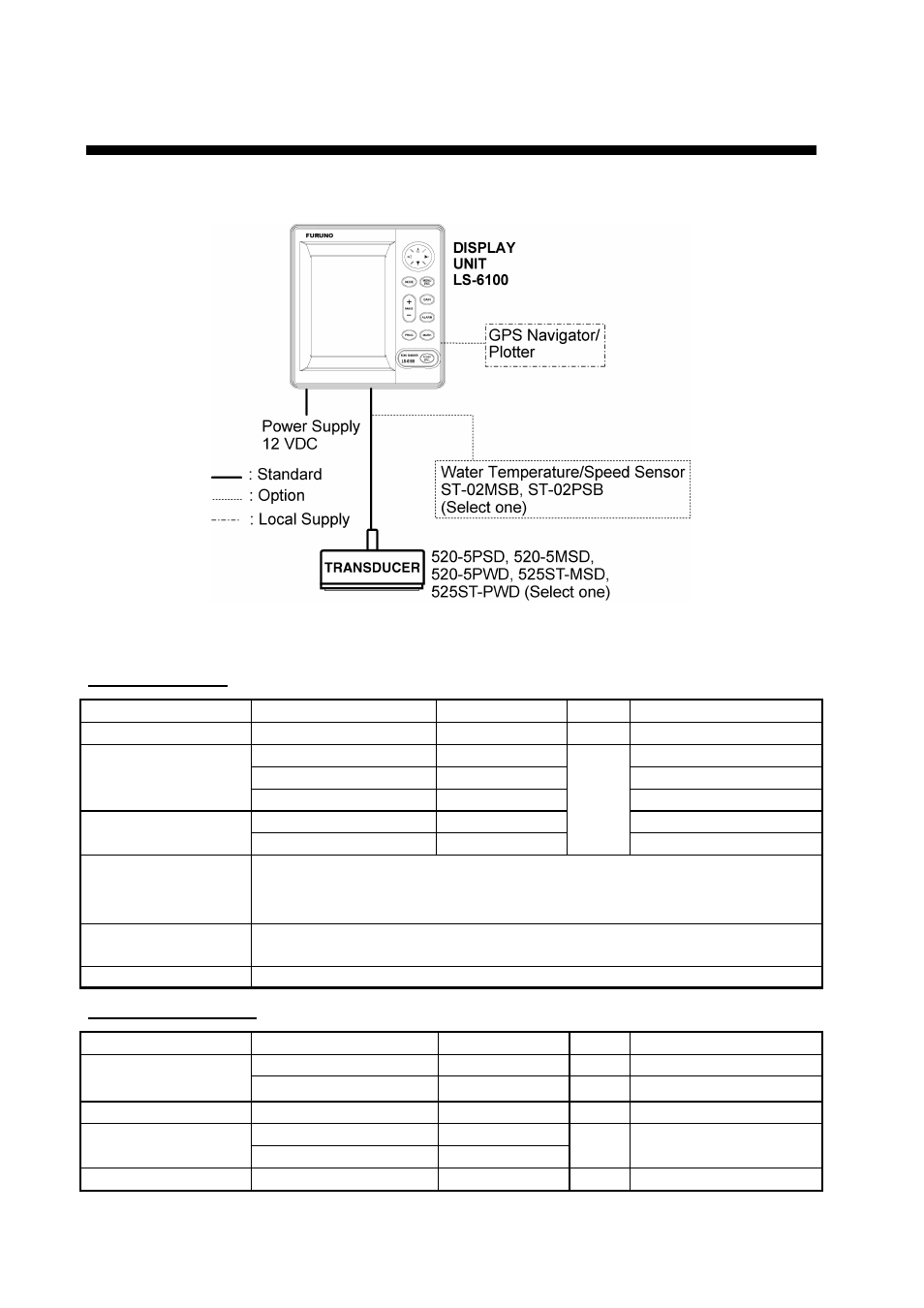

System configuration
Equipment lists
Standard supply
Name Type
Code
No.
Qty
Remarks
Display Unit
LS-6100
—
1
520-5PSD 000-015-204
Thru-hull
mount
520-5MSD 000-015-212 Thru-hull
mount
Transducer
520-5PWD 000-015-126 Transom
mount
525ST-MSD 000-015-263 Thru-hull
mount
Triducer (transducer
plus spd/temp sensor)
525ST-PWD 000-015-261
Select
one
Transom mount
Installation Materials
(CP02-07000)
•
Tapping screw (4 pcs., 5 x 20 SUS304, 000-802-081)
•
Washer head screw B (4 pcs., M4 x 20 SUS304, 000-804-742)
•
Cable assy. (1 pc., MJ-A15A3F0003-030, 000-145-513)
Spare Parts
(SP02-04500)
Fuse (1 pc., 61NM-125V, 1A, Code No. 000-145-864)
Template
Type 02-139-1035-2, Code No. 100-298-502, 1 pc., for flush mount
Optional equipment
Name Type
Code
No.
Qty
Remarks
MJ-A15A7F0004-005
000-145-690
1
0.5 m, for wind sensor
NMEA Cable
MJ-A15A7F0005-020 000-145-691
1 2 m, w/o +12V line
Conversion Cable
02S4147
000-141-082
1
For spd/temp sensor
ST-02MSB 000-137-986
Water Temperature &
Speed Sensor
ST-02PSB 000-137-987
Select
one
Thru-hull type
Inner Hull Kit
22S0191
000-802-598
1
