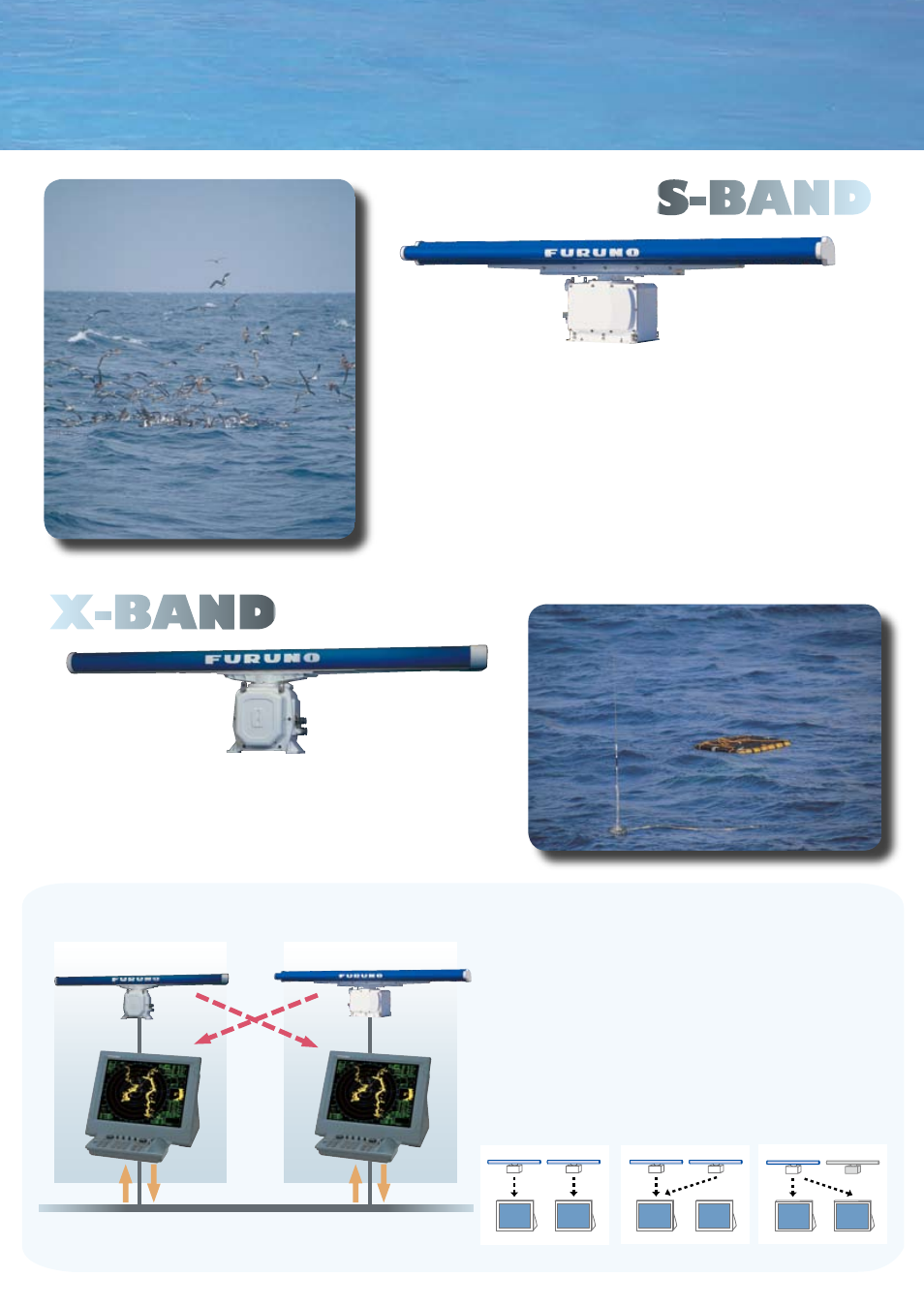

The radar can be connected to an Ethernet network for
a variety of user requirements. Up to four radar systems
both X- and S-band can be networked without using an
extra device.
In addition, the essential navigational information
including the electronic chart, L/L, COG, SOG, STW, etc.
can be shared within the network.
Radar System 1 Radar System 2
Independent Mix Repeater
100 Base-TX
Other Radar Images, Chart data, Navigational information, etc.
Interswitch
Antenna Unit Antenna Unit Antenna Unit
A B A B A B
A B B A A A
FURUNO high-performance radar for fishing vessels delivers
improved detection of vessels, birds, buoys and net floats.
FURUNO high-performance radar for fishing vessels delivers
improved detection of vessels, birds, buoys and net floats.
X-band antenna for FAR-2157
50 kW TR up
(8 or 10 ft ANT selectable)
100 Base-TX Ethernet Network System
The FAR-2167DS is a high-performance S-band radar with 60 kW of
output power.
Detection and tracking of sea birds from a distance has always been
very important for commercial fishermen. The noticeable advantage of
the FAR-2167DS is its capability to detect flocks of seabirds. S-band
radar also assures target detection in adverse weather where an
X-band is heavily affected by sea or rain clutter.
The FAR-2157 radar is suitable for detection of vessels and
buoys under most sea conditions. The 50 kW high-power
output enables long range detection and its long antenna
delivers high-resolution images.
S-band antenna for FAR-2167DS
60 kW TR up
(10 or 12 ft ANT selectable)
