2-12

If the output format is FURUNO CIF a jumper
wire must be connected to “JUP1” on the SPU
Board in the display unit. Note that for CIF
format the bearing measurement method
(Magnetic or True) does not appear for bear-
ing to waypoint data.

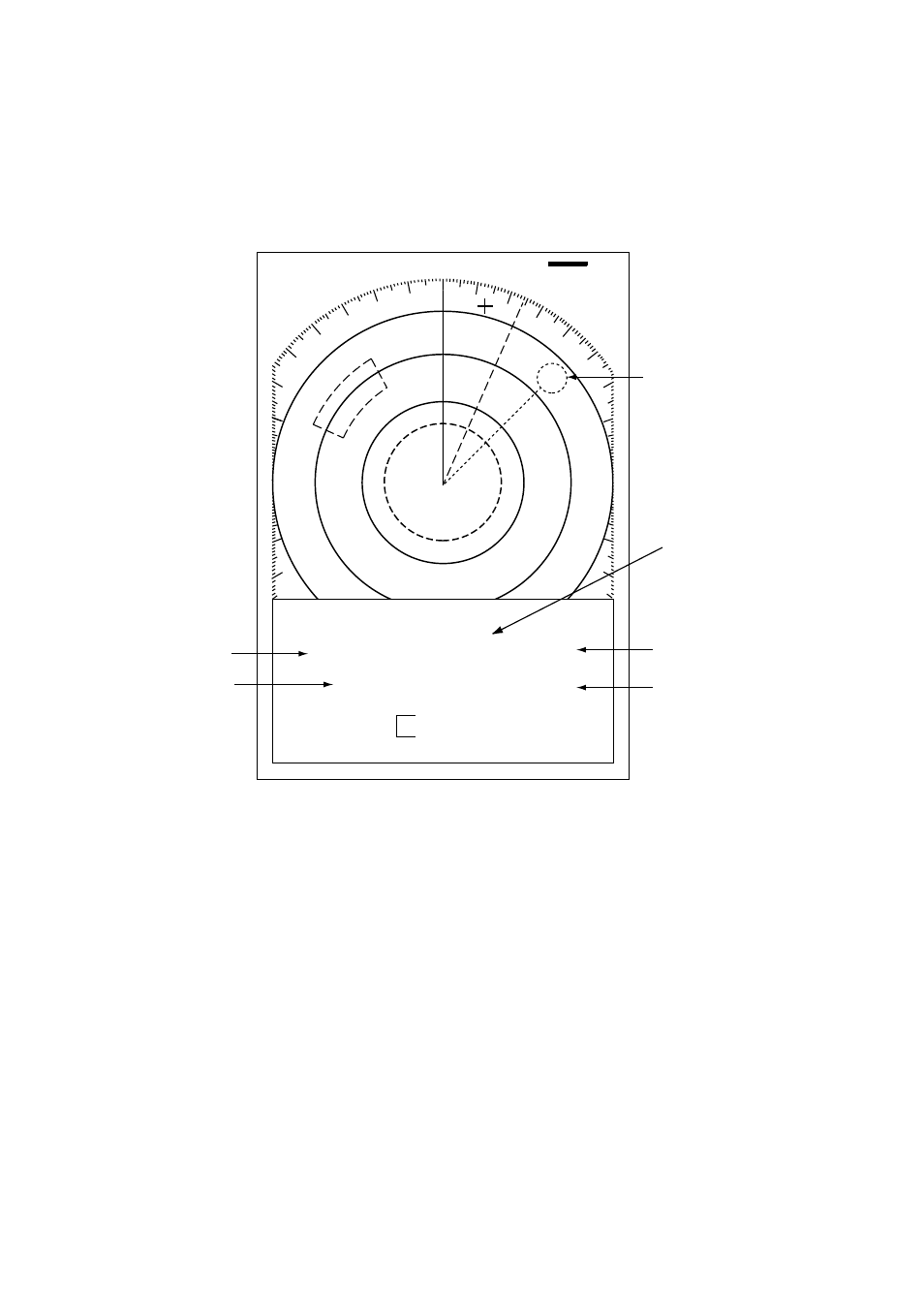

Figure 2-15 Navigation Data on the Screen

MAG 115.0°

3.0NM

GUARD

Waypoint

34°38.99S
135°19.22E
HD 115.0° CRS 118.0°

6.0 NM
171.6° M

SPD

4.3 KT

EBL
48.1°R

315.1° R
9.05 NM

VRM
2.62 NM

Own ships position
(latitude and longitude)

Ship's heading

Range to Waypoint
Bearing to Waypoint

Ship's speed

Ship's course

M:Magnetic
T:True
(M or T appear in CIF format.)
