STEP 3 – Seat Carriage Assembly
a) Remove (1) Allen Bolt and (1) Washer from underside of Carriage Tube, see Figure 3.
b) Position Seat Carriage in front of Carriage Tube with the (1) bolt hole facing down.
c) Raise Locking Arm, slide Carriage Tube into Seat Carriage and push Locking Arm
down to hold Carriage Tube in place.
d) Remove (3) Allen Bolts and (3) Washers from Main Frame.
e) Plug Pulse Wire from Main Frame into Long Extension Pulse Wire from Carriage Tube
and remove twist tie, see Figure 3.
f) Slide Carriage Tube over Main Frame, align bolt holes and fasten using (3) Allen Bolts
and (3) Washers removed in Step 3d, tighten bolts. Note: DO NOT Pinch Wires.
g) Attach Carriage Tube to Support Tube with (1) Allen Bolt and (1) Washer removed in
Step 3a and tighten.
h) Tighten the Rear Foot Tube bolts, installed in Step 2c, with Multi Hex Tool provided.
M8 x 15mm
allen
bolts seat
carriage
main
frame
M8 x 15mm
allen bolt
M8 washer
support
tube
carriage
tube
locking arm
M8 washers
long extension
pulse wire
pulse
wire

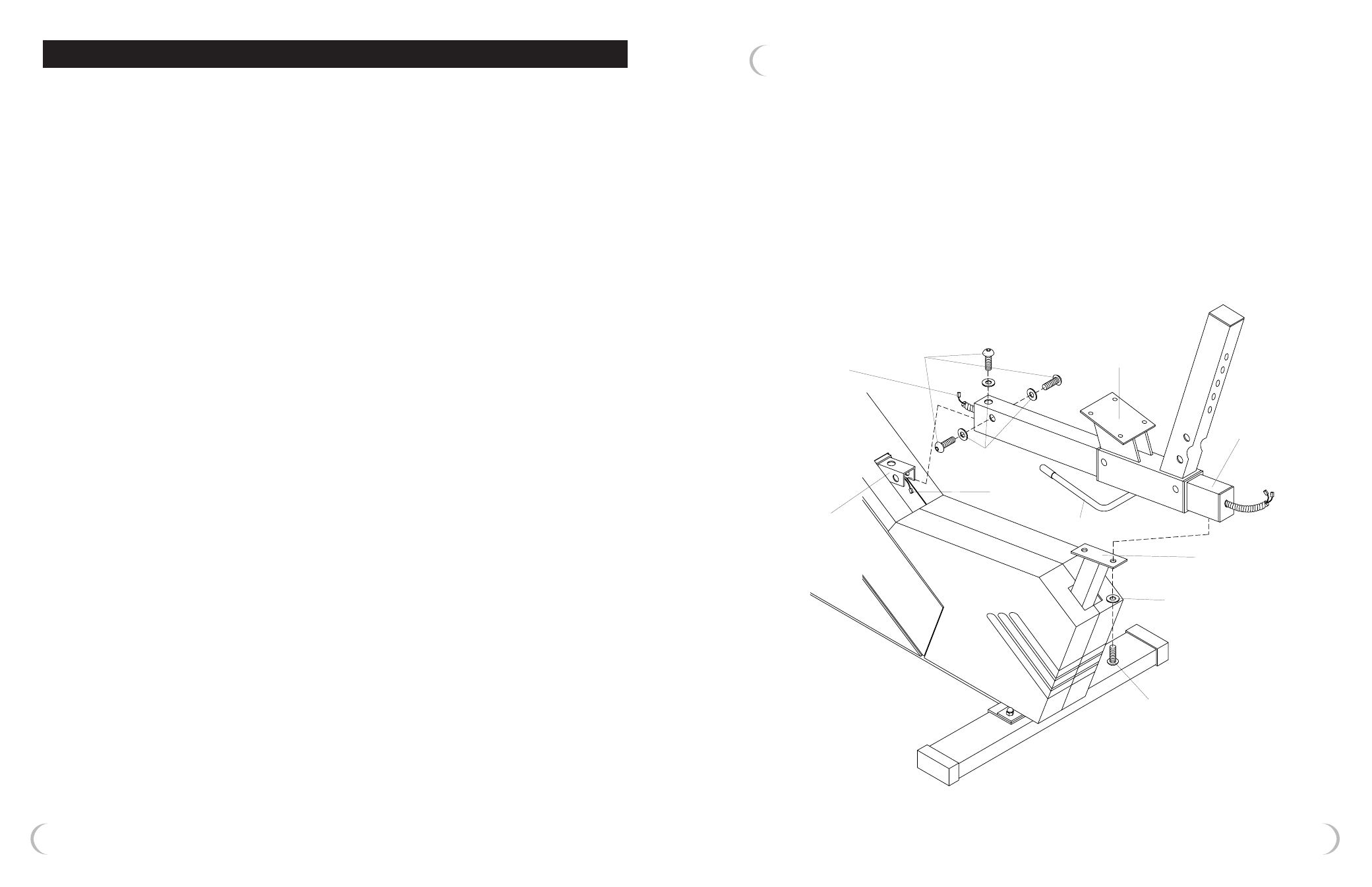

Figure 3 - Install Seat Carriage
Storing Directions
Your bike is portable. If you need to change the
location of your unit, please follow the steps below.
• Unplug the unit.
• Stand at the rear of the bike and grasp the
rear handlebar.
• Lift up using your legs – not your back, tipping
the machine forward until it is resting on the
front transportation wheels/front rollers.
• Wheel the bike to its new location and carefully
lower the unit back down to the floor.
Caring For Your Unit
Your Recumbent Bike has been carefully
designed to require minimum maintenance.
However, we recommend the following to
keep your unit operating smoothly.
• Unplug the unit.
• Use your unit indoors only.
• Wipe all perspiration from your unit with a
soft, clean cloth after each use to prevent
an accumulation of sweat and dirt.
• Clean your unit on a regular basis to
prevent a build-up of dust. Use Windex or
an alcohol based cleanser on a clean
cloth. Do not use any abrasive cleaners
and/or polish as these will damage
the surface.
• Store your equipment in a dry area away
from children and high traffic areas.
• Regularly check the tightness of nuts
and bolts.
CARE & STORAGE OF YOUR RECUMBENT BIKE
