9
Drain hose
1 Carefully pull the drain hose out from the
back of the washer by pulling the exposed
part of the hose downwards and outwards.
2 To guide the drain hose over the set tub/sink
or standpipe the hose guide MUST be fitted
to the drain hose.
To prevent siphoning:
The drain hose should not extend more than
¾” (20 mm) from the end of the guide.
The height of the standpipe or set tub/sink
should be between 33 ½” to 78” (850 – 1200 mm).
The drain hose can be trimmed to length.
3 Place the drain hose in the set tub/sink or
standpipe.
Important!
In multi-storey apartments or any upper floor installation, the washer should be installed on a
drained floor.
Check that the tub or standpipe is free from lint or other obstructions before operating the washer.
In a basement installation do not exceed a standpipe height of 96” (2438 mm).
Inlet hoses
1 Install hoses with the straight end (with filters) fitted to the faucets (refer to Fig.3).
2 Install elbow ends onto clothes washer (inlet valves are marked on the back of the washer
H=hot, C=cold) (refer to Fig.4).

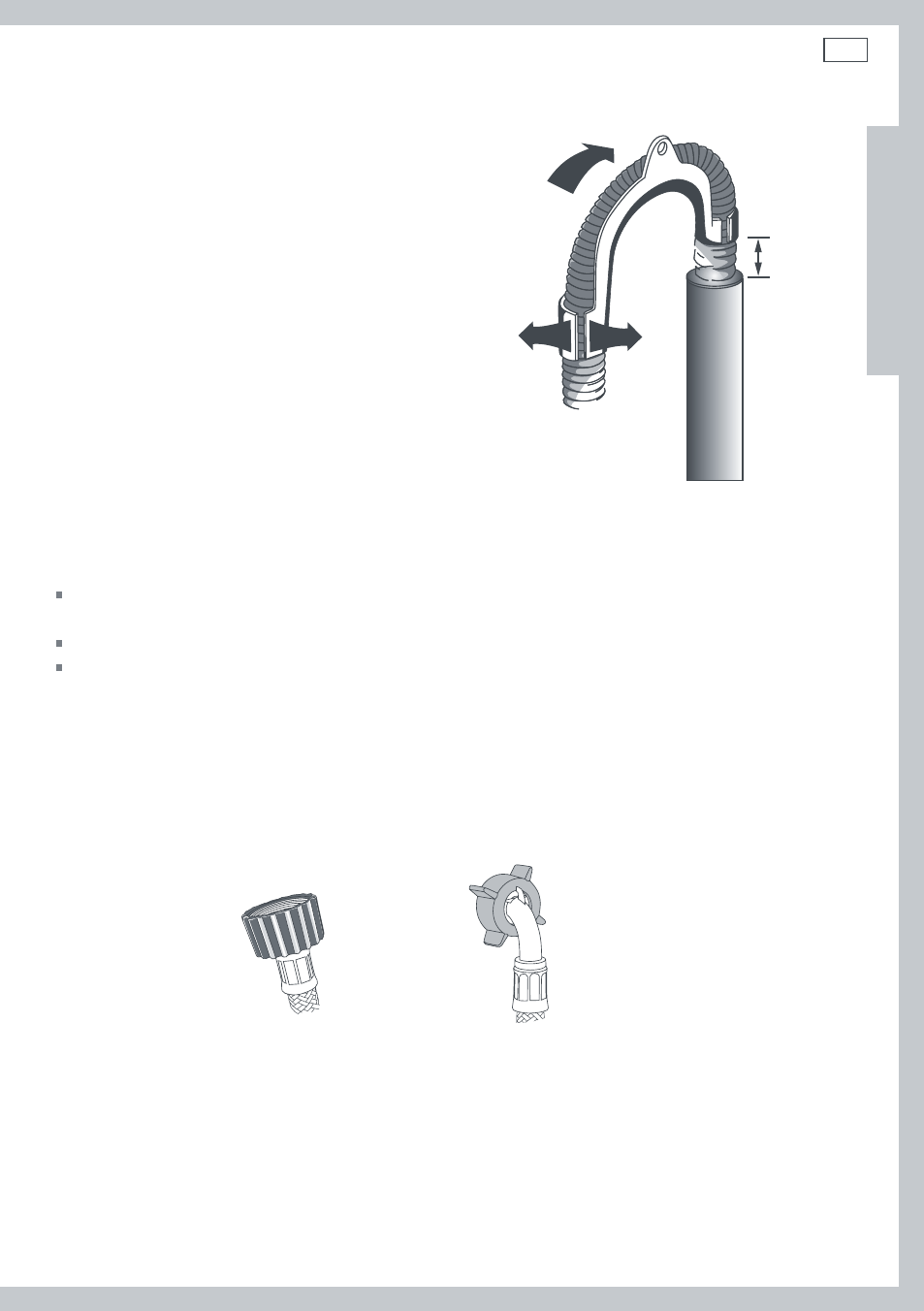

Fig.3 Faucet end of hose Fig.4 Washer end of hose
Installation instructions
Fig.2 Fitting the drain hose guide
Flex hose
guide apart
Standpipe 33 ½”
t
o
78”
(850 – 1200 mm)
¾” (20 mm)
maximum
Pull hose
through guide
EN
