4
En

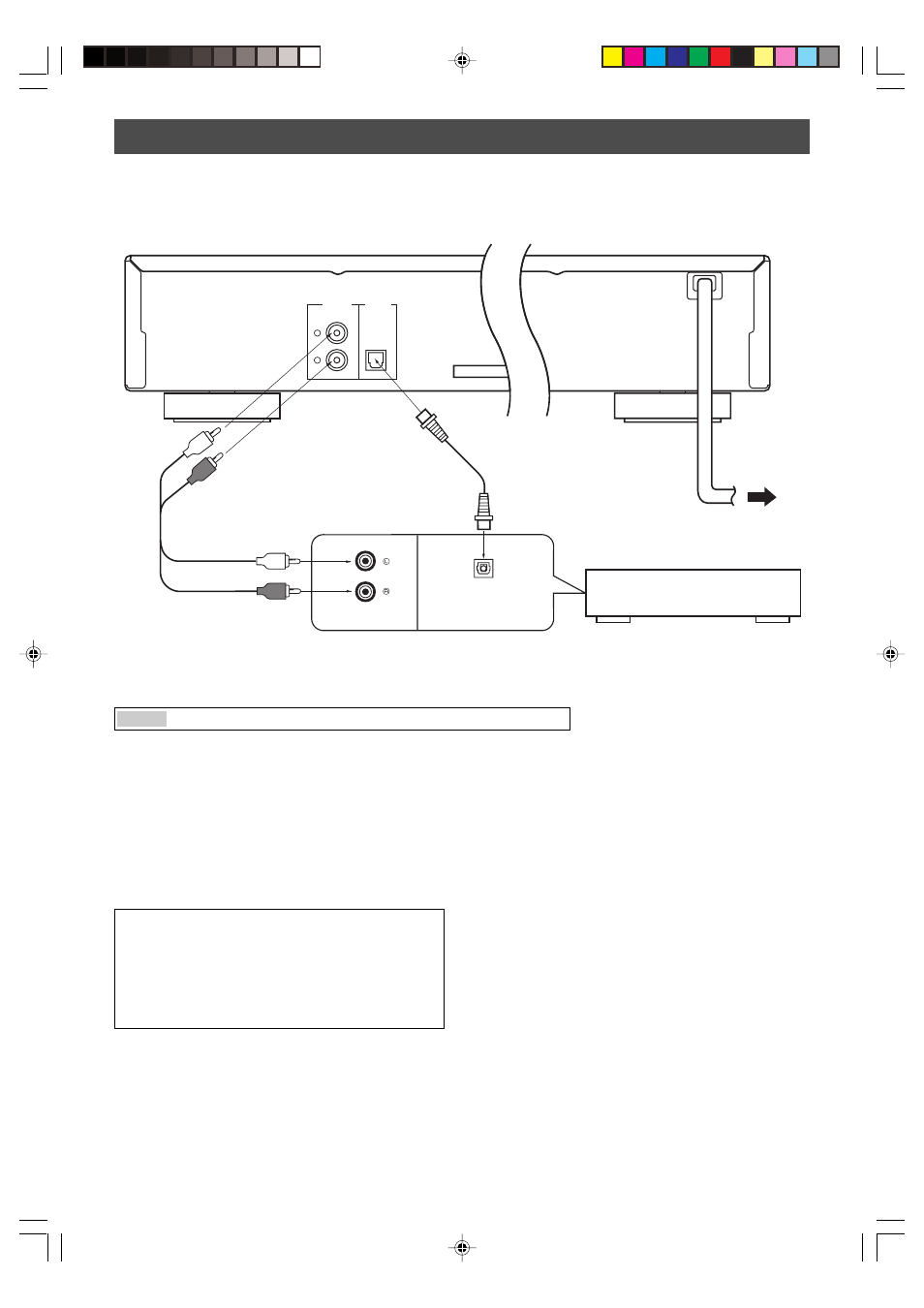

■ To connect this unit to your amplifier, choose one of the ways listed below.
Caution Do not plug in this unit to a wall outlet until all connections are complete.
When the DIGITAL OUT (OPTICAL) terminal
of this unit is used (
2 )
● Make the connection from this terminal to the optical
input terminal of an amplifier by using a commercially
available optical cable.
* Use a reliable optical cable.
● This terminal can also be connected to the optical input
terminal of an MD recorder etc. to record CD onto MD
directly.
● The level of signals output from any of these terminals
into an amplifier can be adjusted by the
OUTPUT LEVEL +/– buttons.
● When using the DIGITAL OUT (OPTICAL) terminal, set
the level of signals output into an amplifier to max. by
using the OUTPUT LEVEL +/– buttons.
LINE OUT
OPTICAL
DIGITAL
OUT
L
R
MAINS
CD DIGITAL IN
OPTICAL
CONNECTIONS
● Before making any connection, switch OFF the power to
the unit and the amplifier or other component.
● Connections should be made to the correct input
terminals of the amplifier or another component.
● If the placement of this unit causes noise to another
equipment, such as a tuner, separate them from each
other.
Amplifier
To AC outlet
1
Audio pin cable
(included)
Europe and U.K models
When the LINE OUT (analog) terminals of
this unit are used (
1 )
Connect these terminals to the “CD” (or “AUX”) terminals of
the amplifier. For details concerning these connections,
refer to the operation instructions of the amplifier being
used.
* Be sure that the left (“L”) and right (“R”) of these terminals are
connected to the corresponding (left and right) terminals of the
amplifier or another component.
2
Optical cable
(not included)
■ To connect this unit to the AC outlet
After you made all connections, connect the power cable of this unit to the AC outlet.
