OCF30 ™ SERIES ELECTRIC FRYER
APPENDIX A: JIB Preparation with Solid Shortening Option
1. Open right door of fryer and remove brace
in JIB cabinet.
2. Position melter in front of cabinet. Loosen
bracket on left side of melter, if necessary,
to ease placement in the cabinet.
3. Use the provided screws to attach the
melter to existing holes in the interior rails
of the fryer cabinet on both sides. See
figures 1 and 2.
4. Plug in the black connector to the outlet
box shown in figure 3.*
5. Position the oil reservoir in the melter,
sliding the oil pickup tube into the female
receptacle. Position the front lid and the
front of the melter. See figure 4.
*NOTE: A separate harness with a white
plug, if present, is NOT used.

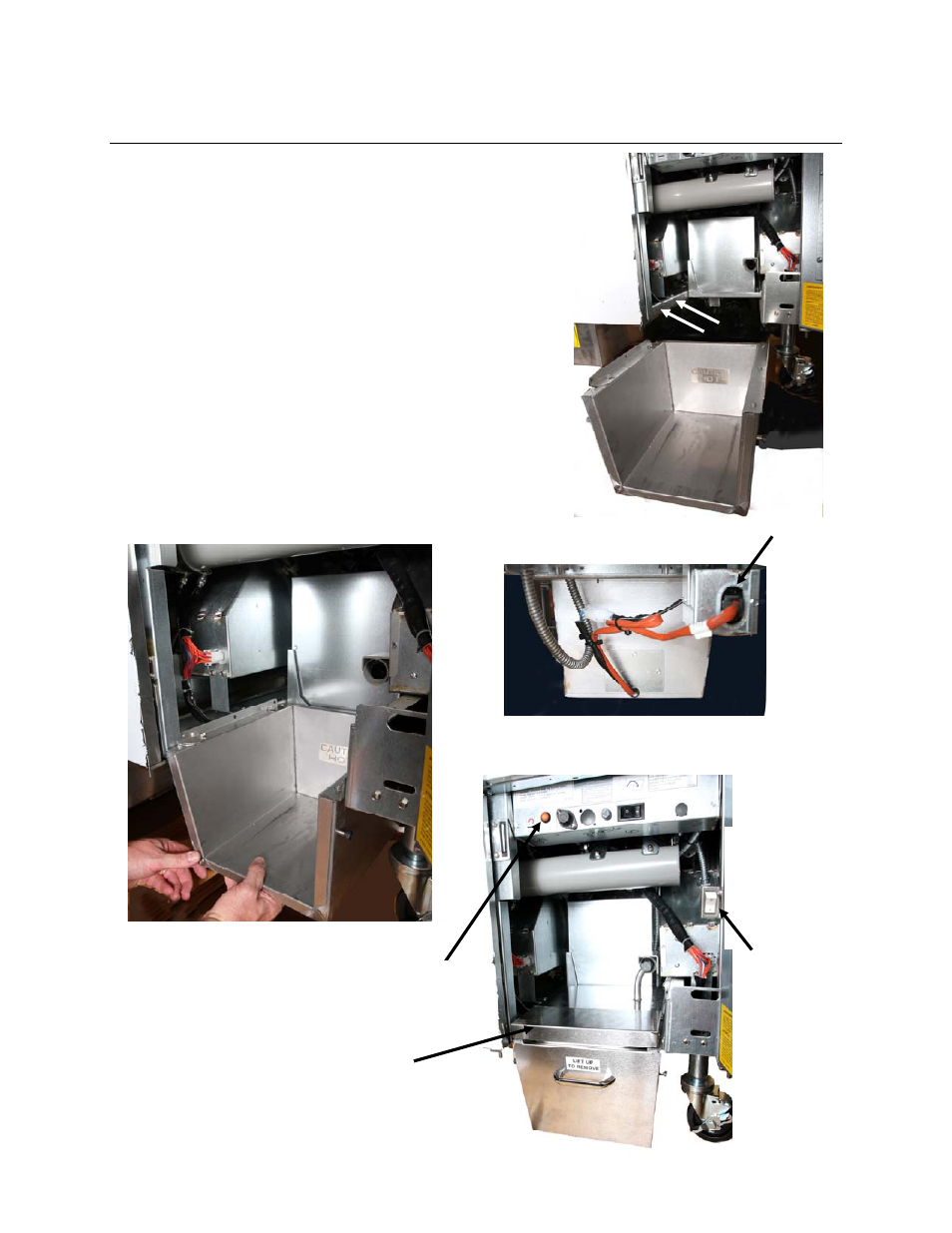

Figure 1: Position the melter in the cabinet and attach with
provided screws to the cabinet interior.
Figure 2: Position the melter.
Figure 4: The
assembled melter is
shown in position.
Lift carefully to add
shortening.
Melter ON/OFF switch.
Orange button resets
system after a low oil
display.
Figure 3: Plug the black connector into the
utility box as shown. A separate harness with a
white plug, if present, is NOT used.
