Setup

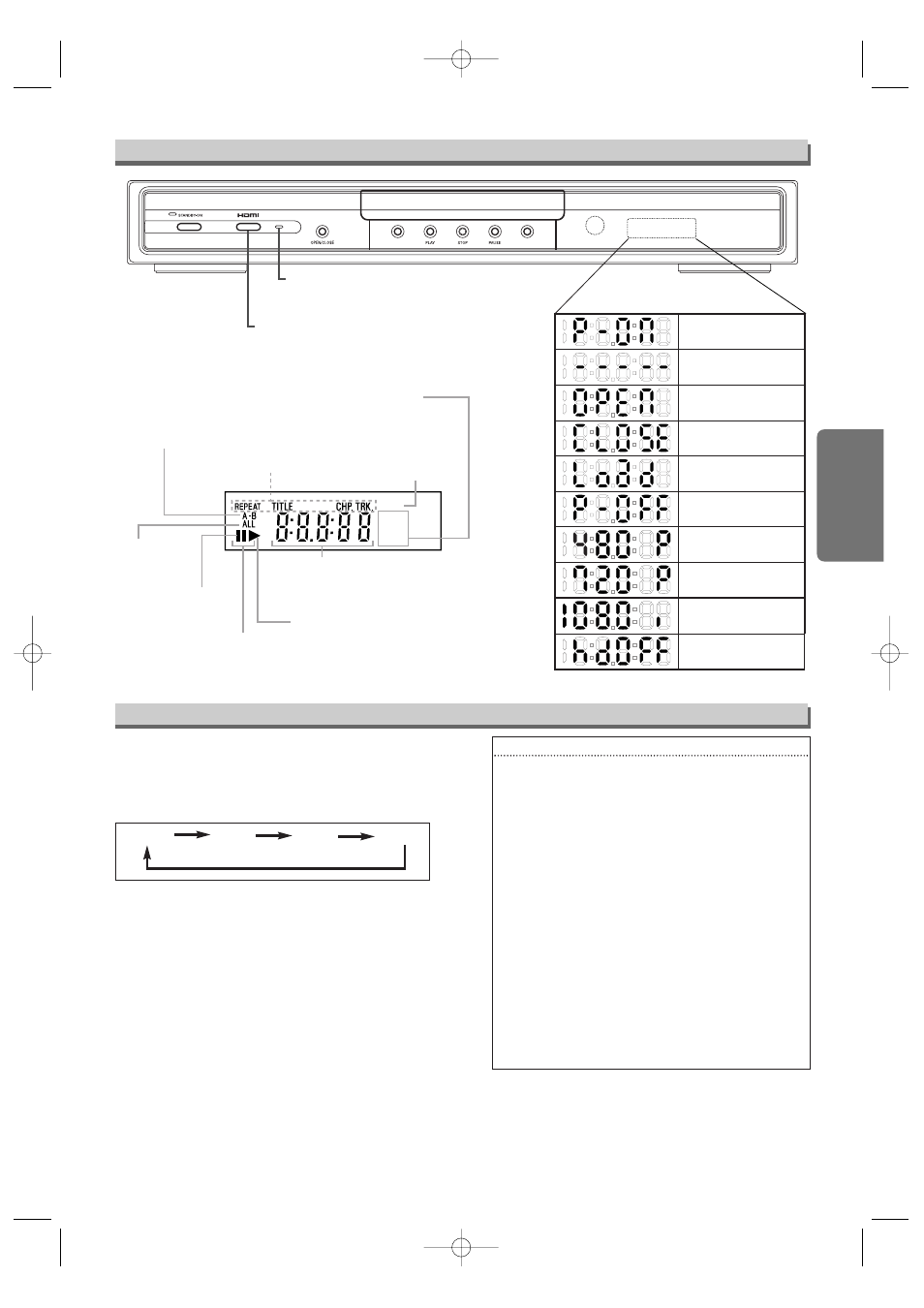

Front Panel Display
Power on
No disc inserted or
cannot read
Tray open
Tray closed
Loading the Disc
HDMI output mode
(480p) is selected
Power off
HDMI output mode
(720p) is selected
HDMI output mode
(1080i) is selected
HDMI output mode
(OFF) is selected
Lights up when the inserted
disc is being played back.
Displays a type of the disc
which is inserted on the tray.
• DVD: DVD disc
• CD: Audio CD, MP3, WMA
Lights up when the
inserted disc comes
to a pause.
Lights up when the
A-B repeat function
is on.
Lights up when the
repeat function is on.
Lights up when playing back
in slow mode. (DVD)
Displays how long the current title or track
has been played back. When a chapter or track is
switched, the number of a new title,
chapter or track is displayed.
Selected HDMI output mode is displayed.
Lights up when
the ALL repeat
function is on.
GROUP P.SCAN
DVD
CD
Lights up when the
progressive scan
system is activated.
HDMI Setup
H / E D / G
HDMI Button
Press to set the HDMI connectors
video signal output.
Hint Hint
• Video and audio signals may distorted temporarily when
switching to/from the HDMI output mode.
• Use a display equipment with an HDMI-compatible
port.
• Progressive video signal will not be output from the
COMPONENT VIDEO OUT jacks during the HDMI out-
put mode.
• If the HDMI cable is not connected correctly or the
other equipment is not turned on, the HDMI indicator
on the front panel will not light up even you select the
HDMI mode.
• You can check the HDMI connection status by pressing
[DISPLAY] during playback with the HDMI output mode
(refer to page 7).
• If the TV is not compatible with newly selected HDMI
output mode, the actual output mode will be kept the
one before changing the selection. When this occurs,
the newly selected mode will appear on the front panel
display while the actual output resolution will be indicat-
ed by performing the on-screen display as described
above.
HDMI indicator
Lights up when there is video signal
output from the HDMI OUT jack.
Press [HDMI] on the front panel to select the HDMI output mode.
The output mode changes as follows every time [HDMI] is
pressed.
• The HDMI indicator on the front panel lights up when HDMI out-
put mode is on.
480P (Default): Video output from the HDMI OUT jack at 480p.
720P: Video output from the HDMI OUT jack at 720p.
1080i: Video output from the HDMI OUT jack at 1080i.
hdOFF: No video output from the HDMI OUT connector.
1080i hdOFF 480P 720P
