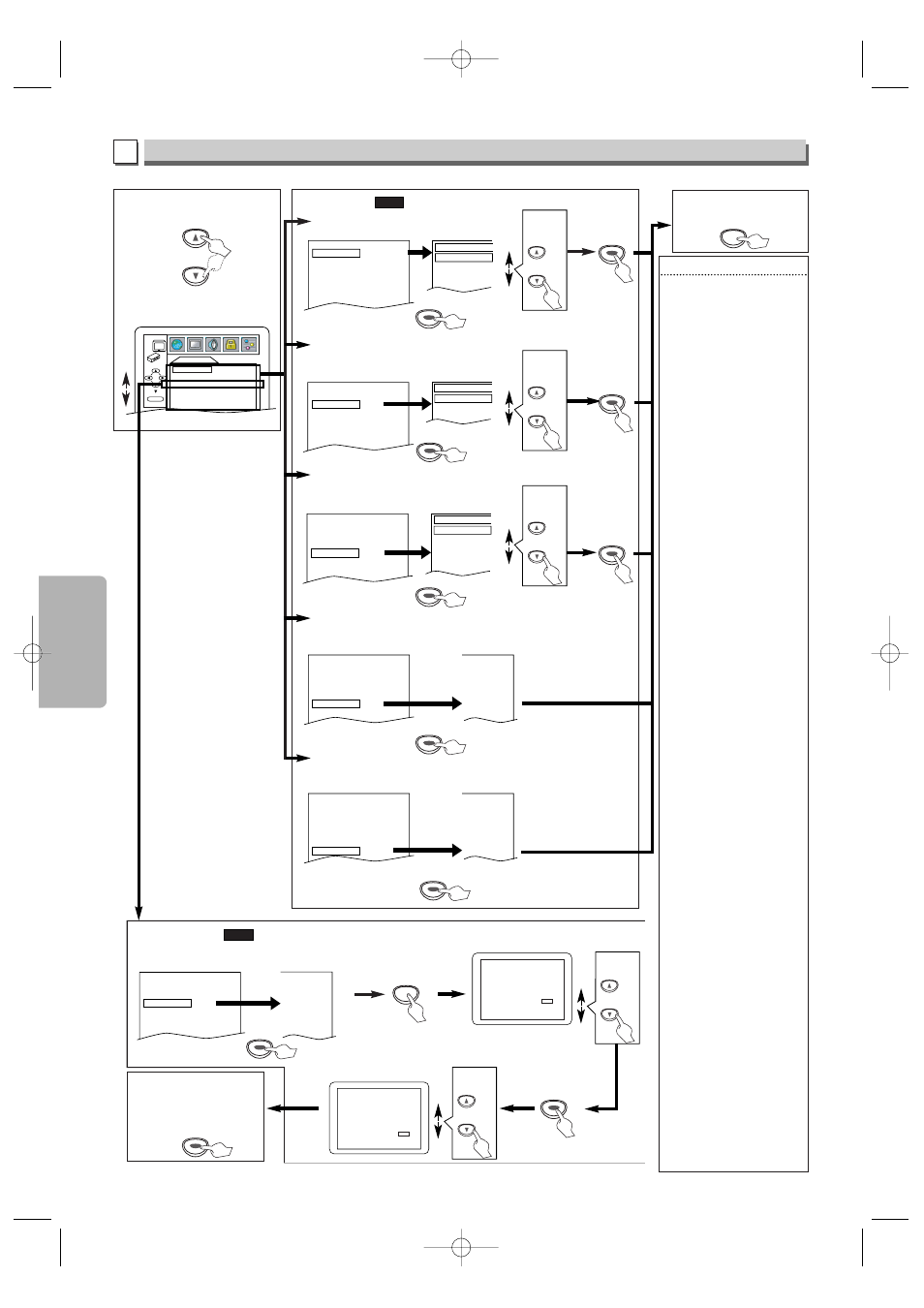

Functions
DISPLAY Setting
You can change the display functions. Follow steps 1 to 3 in the “CUSTOM Menu” section on page 17.
Select the desired item.
B
DISPLAY menu
5 5
TV ASPECT:
(Default: 4:3 LETTER BOX)
See Hint to the right. QUICK
TV ASPECT
4:3 LETTER BOX
4:3 PAN & SCAN
16:9 WIDE
16:9 SQUEEZE
TV ASPECT 4:3 LETTERBOX
STILL MODE AUTO
PROGRESSIVE
OFF
PROGRESSIVE MODE AUTO 1
FORMAT
RGB
RGB RANGE NORMAL
Select the
desired
setting.
or
ENTER ENTER ENTER
ENTER ENTER ENTER
or
6 6 To confirm the
PROGRESSIVE
scanning mode
5 5
PROGRESSIVE:
(Default: OFF)
See Hint to the right. QUICK
TV ASPECT 4:3 LETTERBOX
STILL MODE AUTO
PROGRESSIVE OFF
PROGRESSIVE MODE AUTO 1
FORMAT
RGB
RGB RANGE NORMAL
4:3 LETTERBOX
AUTO
ON
AUTO 1
RGB
NORMAL
ENTER ENTER ENTER
SETUP
Select
YES.
or
ENTER ENTER ENTER
NO
YES NO
YES
Confirm again to use progressive scan.
If Picture is good, Select “YES”.
SELECT: K / L SET:ENTER
Before proceeding…
1. Make sure your TV has progressive scan.
2. Connect with component video cable
NOTE: If there is no picture or picture is
distorted after selecting “YES”,
wait about 15 seconds for auto recovery.
A c t i va t e P r o gr e s s i ve ?
SELECT: K / L SET:ENTER
NO
YES
Select
YES.
or
If you do not press any buttons
for 15 seconds, Progressive
Scan will switch to “OFF”.
If “PROGRESSIVE” is “ON”,
this message appears:
ENTER ENTER ENTER
ENTER ENTER ENTER
STILL MODE:
(Default: AUTO)
See Hint to the right.
TV ASPECT 4:3 LETTERBOX
STILL MODE AUTO
PROGRESSIVE
OFF
PROGRESSIVE MODE AUTO 1
FORMAT
RGB
RGB RANGE NORMAL
STILL MODE
AUTO
FIELD
FRAME
Select the
desired
setting.
or
ENTER ENTER ENTER
PROGRESSIVE MODE:
(Default: AUTO1)
See Hint to the right.
TV ASPECT 4:3 LETTERBOX
STILL MODE AUTO
PROGRESSIVE
OFF
PROGRESSIVE MODE AUTO 1
FORMAT
RGB
RGB RANGE NORMAL
PROGRESSIVE MODE
AUTO1
AUTO2
VIDEO1
VIDEO2
VIDEO3
Select the
desired
setting.
or
ENTER ENTER ENTER
ENTER ENTER ENTER
FORMAT:
(Default: RGB)
See Hint to the right.
4:3 LETTERBOX
AUTO
OFF
AUTO1
YCbCr
NORMAL TV ASPECT 4:3 LETTERBOX
STILL MODE AUTO
PROGRESSIVE
OFF
PROGRESSIVE MODE AUTO 1
FORMAT
RGB
RGB RANGE NORMAL
RGB RANGE:
(Default: NORMAL)
See Hint to the right.
4:3 LETTERBOX
AUTO
OFF
AUTO1
RGB
ENHANCED TV ASPECT 4:3 LETTERBOX
STILL MODE AUTO
PROGRESSIVE
OFF
PROGRESSIVE MODE AUTO 1
FORMAT
RGB
RGB RANGE NORMAL
ENTER ENTER ENTER
ENTER ENTER ENTER
Hint Hint
TV ASPECT:
• Select “4:3 LETTER BOX”,
so that black bars may
appear on the top and bot-
tom of the screen.
• Select “4:3 PAN & SCAN”
for a full height picture with
both sides adjusted.
• Select “16:9 WIDE” if a
wide-screen TV is connect-
ed to this unit.
• Select “16:9 SQUEEZE” when
the TV screen is too large
horizontally at “16:9 WIDE”
setting and when it is possible
to adjust the screen size
using the TV’s controls.
STILL MODE:
• Select “AUTO” usually.
• If you select AUTO, automati-
cally select the best resolution
setting (FRAME or FIELD)
based on the data characteris-
tics of the pictures. (default)
• If you select “FIELD”, the
picture in the still mode will
be stabilized.
• If you select “FRAME”, the
picture in the still mode will
be highly defined.
• An individual picture on TV
screen is called a “frame”, which
consists of two separate images
called as “field”.
Some pictures may be blurred at
the AUTO setting in the still mode
due to their data characteristics.
PROGRESSIVE MODE:
• You can select a mode below
for the progressive scan output.
• AUTO1: mode suitable for
images on the film
material.
• AUTO2: mode for images on
the material of 30-
frame film.
• VIDEO1: mode for normal video
material.
• VIDEO2: mode for video
material with less
movements.
• VIDEO3: mode for video
material with many
movements.
FORMAT:
• Select an HDMI output mode
between YCbCr and RGB.
• When the connected equipment
is not compatible with YCbCr,
HDMI signal is output as RGB
regardless of the setting.
• This setting is effective only when
you use the HDMI connection.
RGB RANGE:
• Select a HDMI picture mode
between NORMAL and
ENHANCED.
• Select ENHANCED if the black-
white contrast is not clear.
• This setting is effective only for
HDMI RGB output.
PROGRESSIVE:
• You can set “PROGRESSIVE”
to “OFF” either in the Display
menu or by pressing and hold-
ing [PLAY B
B ] on the front of the
unit for more than 5 seconds.
• When “PROGRESSIVE” is “ON”,
video signals from VIDEO OUT
and S-VIDEO OUT jacks will be
distorted or not be output at all.
6 6 To exit
the menu
SETUP
