OPEN/CLOSE
EX12 EXTERNAL DRIVE UNIT
IEEE1394/USB
HD PD-6 ON
OFF
POWER
1 2
3 4 5 6 7
8
9 10 11 12 13
TO RAIN OR MOISTURE. SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO REDUCE THE RISK OF FIRE OR ELECTRIC WARNING:
NE PAS OUVRIR RISQUE DE CHOC ELECTRIQUE AVIS:
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION
5 6

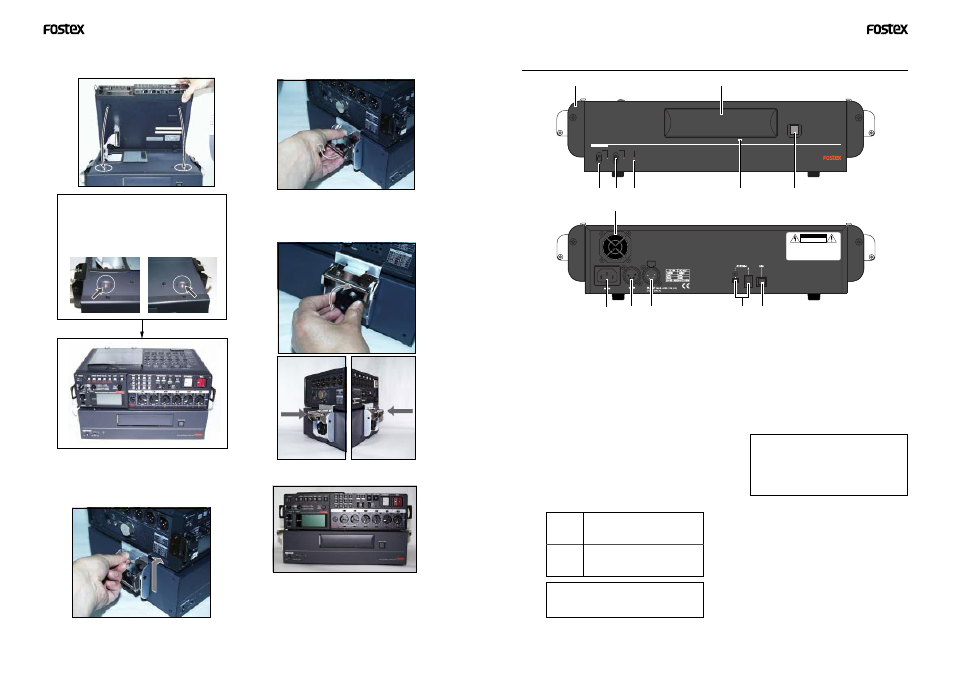

9) Fasten the fixing screw of each fastening.
Confirm both the left and right fastenings are
fixed tightly.
7) After connecting the cable, stack the PD-6 on
the EX12.
: When stacking the PD-6 on the EX12,
make sure to perfectly fit the dent of PD-6
rubber feet to the metallic projections of each
EX12. Otherwise, the PD-6 may malfunction
or generate a noise because of imperfect
grounding.
8) Use the fastenings on both the left and right
sides of the EX12 to fastening the PD-6.
After hanging the projection on the PD-6, lift
up the fixing angle until it is locked.
Now you complete stacking the EX12 and PD-6
together.
The next step is to connect the power cords.
See the next page.
Pull up the metallic projection of each fasten-
ing and hang it on the PD-6.(The following pic-
tures show the example of the left side.)
Fasten the fixing screw of each fastening so that
the fastening may not be off. Be careful not to
apply excessive force.
