Operation
Positioning the Model 353300A Detector in the Beam
2
2-5
WARNING

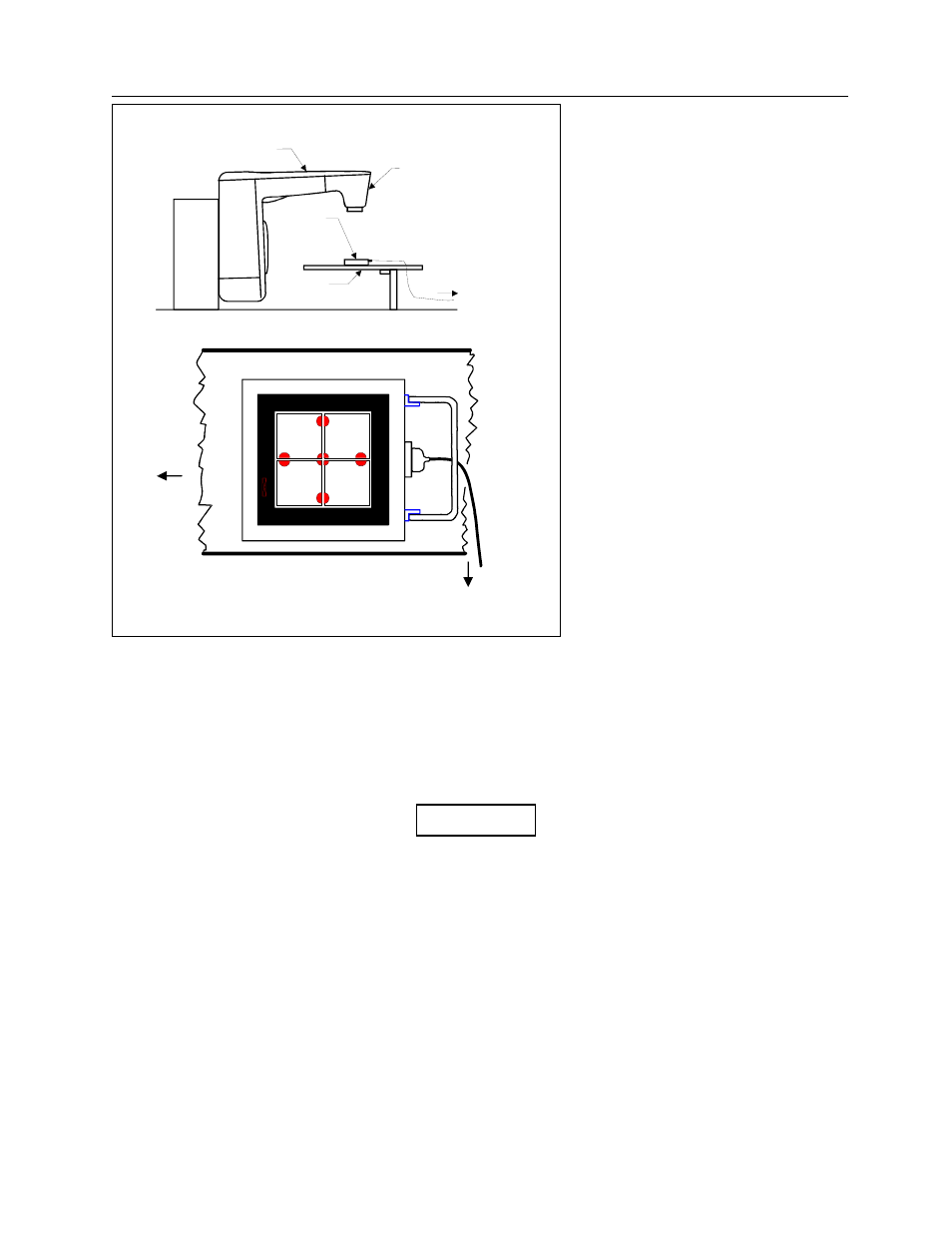

Figure 2-4. Setup for 0-Degree Gantry Angle (NOTE: Build-up not shown for clarity)
For those who have purchased the optional Build-Up Peg and Retainer Kit, gantry angles other than 0
degrees may be used. For gantry angles of 90 or 270 degrees, place the 35300A Detector on its side so
the label faces the head. Orient the connector away from the gantry. This placement is shown in Figure
2-5.
Operating the 35300A Detector on edge without
build-up pegs constitutes a tip-over hazard and
could result in personal injury.
Treatment
head
Gantry
arm
Gantry
To Model 35360A
TRACKER Display Treatment
table
Model
35300A
Detector
To Model 35360A
TRACKER Display
Cable
Treatment
table
Gantry
