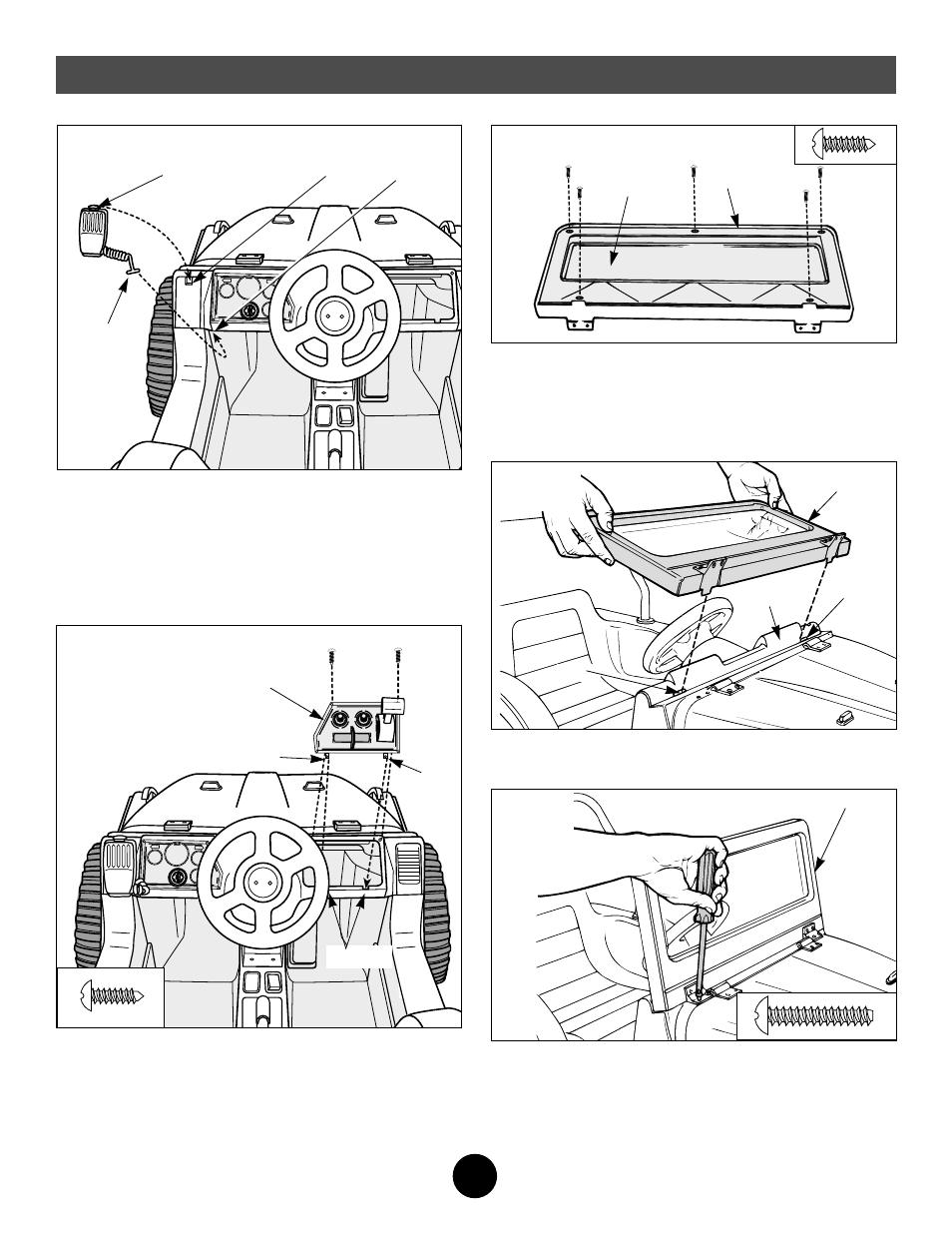

• Rotate the top of the windshield toward the front of the
vehicle body.
• Insert four #8 x 1" screws through the holes in the hinge
on the windshield and into the vehicle body.
• Tighten the screws with a Phillips Screwdriver. Do not
over-tighten.
Windshield
Slot
Dash
• Fit the tabs on the back of the windshield into the slots in
the top of the dash.
15
• Fit the windshield into the windshield frame.
• Insert five #6 x 1 /
2
" screws through the holes in the wind-
shield and into the windshield frame.
• Tighten the screws with a Phillips screwdriver. Do not
over-tighten.
13
Windshield
Windshield • Bend the plastic tip at the end of the microphone cord to
form a “T”.
• Insert the plastic tip into the small hole in the left side of
the vehicle body. Pull gently on the cord to make sure it
is secure.
• Fit the tab on the back of the microphone into the slot in
the dash.
Microphone
Plastic
Tip
Slot
Hole
Tab
Tab
11
• Fit the tabs on the bottom of the activity panel into
the notches in the dash opening to the right of the
steering wheel.
• Insert two #6 x 1 /
2
" screws through the holes in the top of
the activity panel and into the dash.
• Tighten the screws with a Phillips screwdriver. Do not
over-tighten.
Activity Panel
12
Windshield
Frame
Slot
Notches
14
Assembly
11
