Connecting cables to the monitor

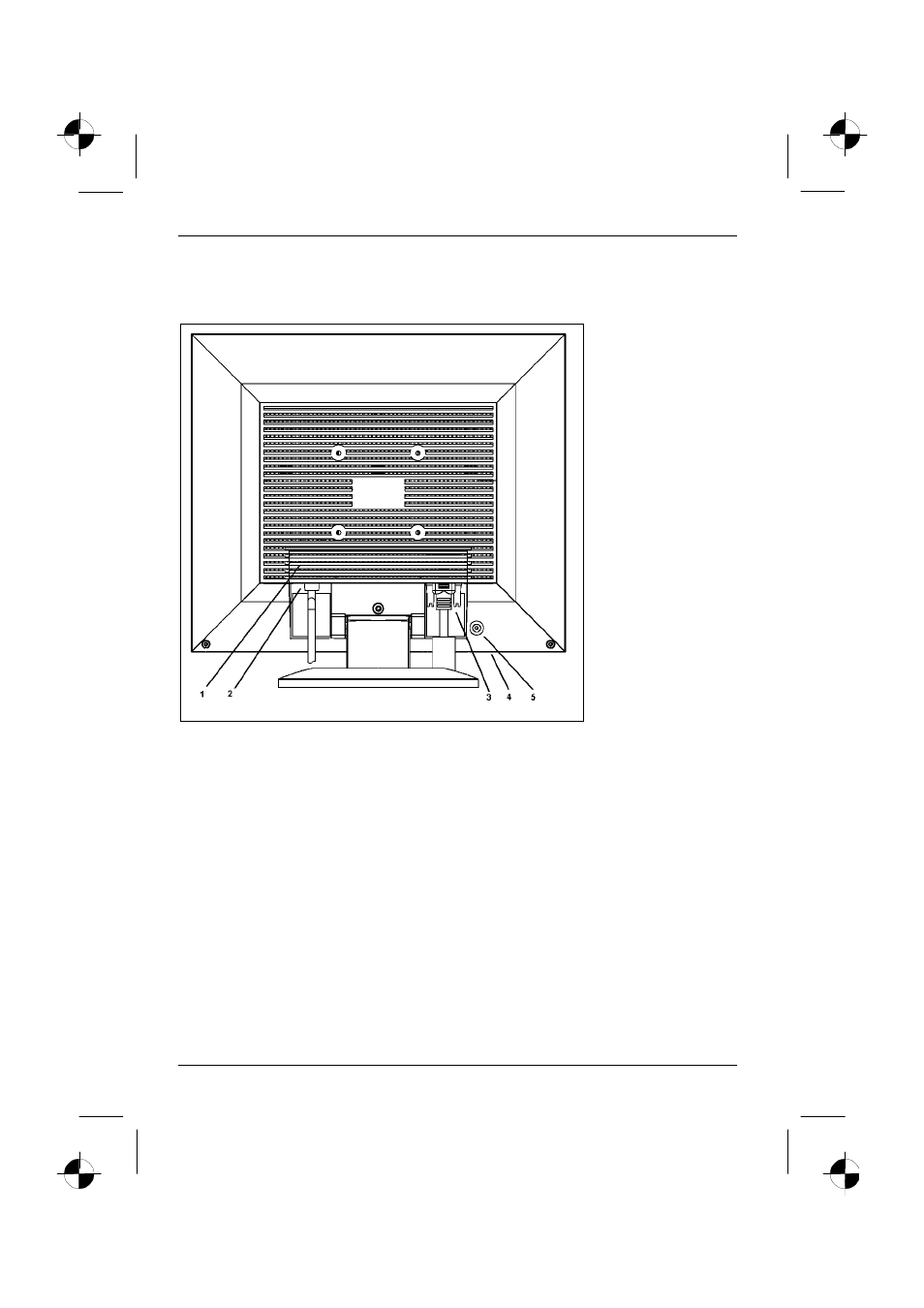

The monitor ports are protected by a cover.
1 = Cover
2 = Power connector
3 = D-SUB connector (ANALOG) 4 = AUDIO-IN connector
5 = Headphones port
Ê Remove the cover (1).
The data cable supplied has two 15-pin D-SUB connectors for connection to the monitor and to the
system unit.
Ê Connect one of the connectors of the data cable to the D-SUB connector on the monitor (3)
and secure the plug-in connection by tightening the safety screws.
Ê Insert one plug of the audio line in the AUDIO IN (5) socket on the monitor and make sure it is
properly engaged.
Ê Plug the power cable supplied into the power connector (2) of the monitor.
