2. CONNECTIONS
24
2.3 Communication Unit
Telephone FC755D1 and Facsimile FAX-2820

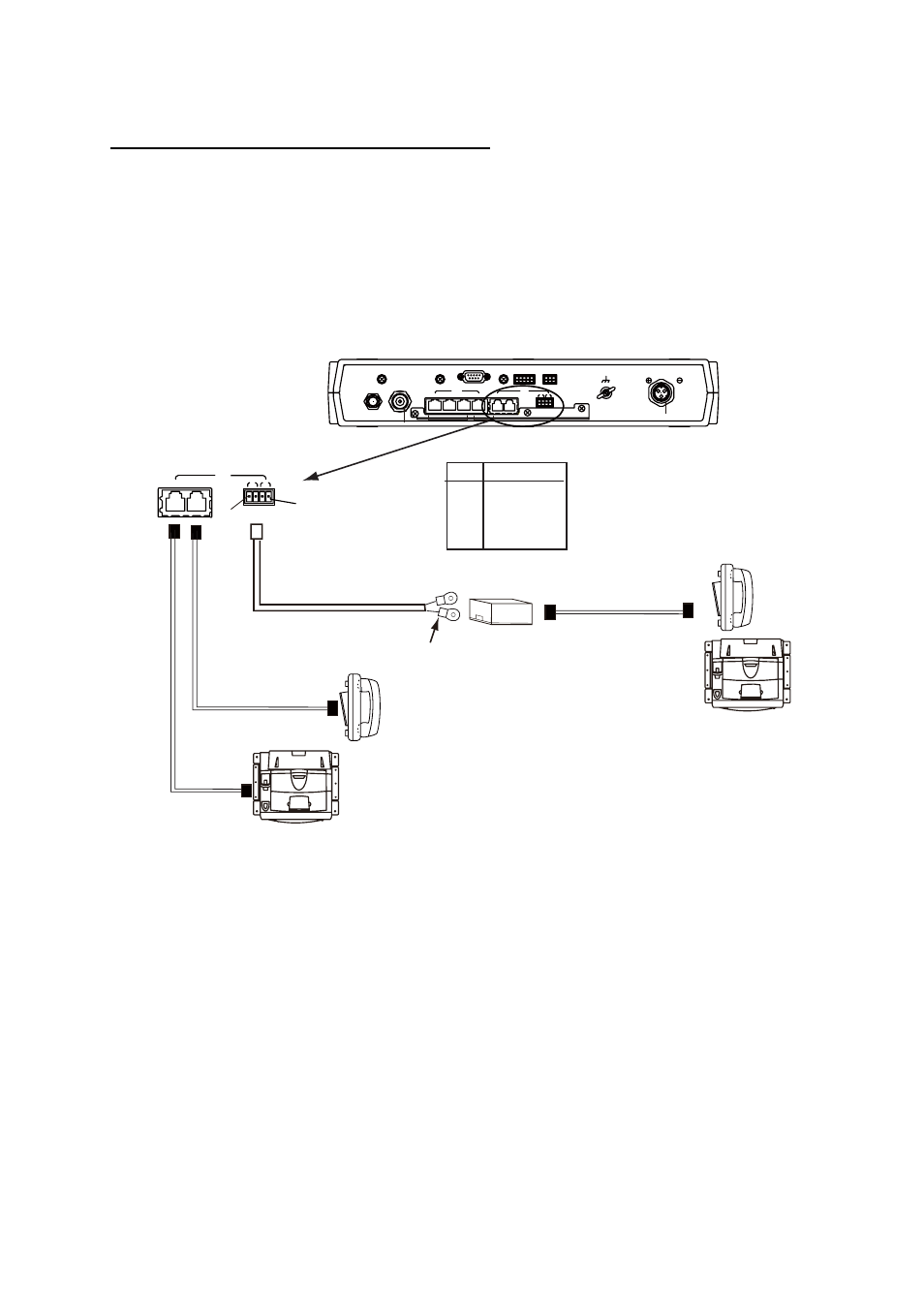

Connect the cable from the telephone or facsimile to TEL1, 2, 3 or 4 port of the communication
unit. The modular connector can be connected directly to the TEL1 or TEL2 as shown in the fig-
ure below.
To connect to the TEL3 or TEL4, use the modular jack box (optional supply) or the modular jack
set (optional supply). Connect TTYCS-1 (Japan Industry Standard cable, or equivalent, local sup-
ply) between the modular jack box and communication unit. Attach two crimp-on lugs (FV1.25-3
red, supplied with the modular jack box) to the modular jack box side of the above cable
Modular
jack box
MJ-2S
Telephone
FC755D1
Cable with
modular plug
Twisted
pair cable
TTYCS-1
TEL
1 2 3 4
Communication unit
FB-2000
Facsimile
FAX-2820
Telephone
FC755D1
Facsimile
FAX-2820
Crimp-on
lug
FMC connector
Cable with
modular plug
See below for
cable fabrication.
ALARM NMEA RS-232C
LAN ANT
1 2 3 4
TEL
1 2 3 4
12-24 VDC
12-6A
1 2
L-BAND OUT
3 GND
#1
TEL3,4
No. Signal
1 TEL4 TIP
2 TEL4 RING
3 TEL3 TIP
4 TEL3 RING
#4
