1. HOW TO INSTALL THE UNIT
12
1.2 Communication Unit
Select a location for the communication unit (CU) by following the information shown below.
• The unit is not waterproof. Keep the unit away from water splash.
• Keep the unit away from direct sunlight.
• The temperature and humidity must meet the requirements shown in the equipment specifica-
tions.
• Set the unit away from the exhaust pipes and vents.
• The installation location must have enough cool air.
• Install the unit where shock and vibration meet the requirements shown in the equipment spec-
ifications.
• Keep the unit away from the equipment that creates an electromagnetic field, for example, mo-
tor and generator.
• For maintenance and checking, leave enough space at the sides and rear of the unit. Refer to
the outline drawing and provide some additional length in cables.
• Follow the recommended compass safe distances shown on page i to prevent the interference
to a magnetic compass.

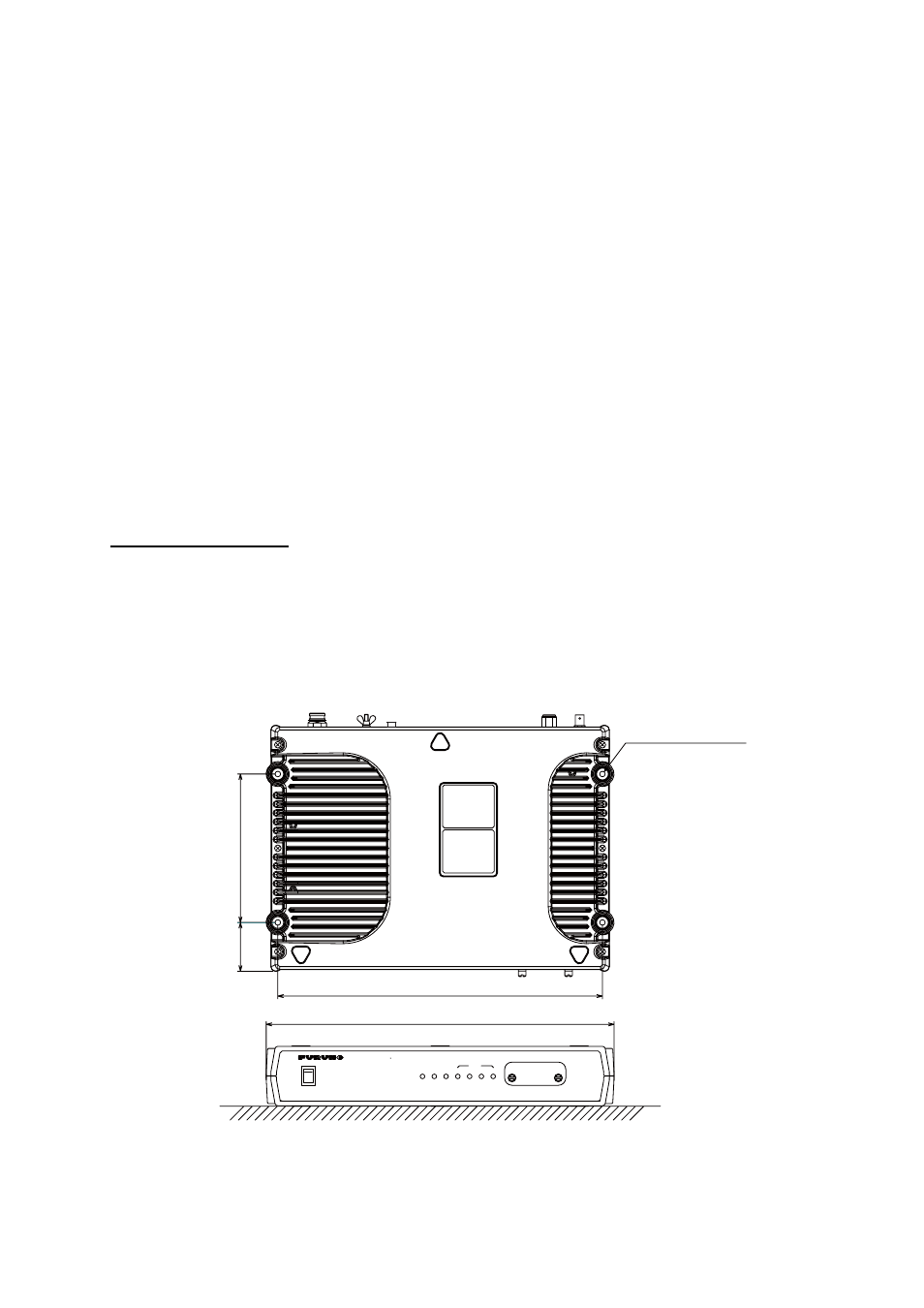

How to install the CU
Follow the procedure shown below to install the CU on a desktop. See the outline drawing on page
D-3 for details.
1. Place the template (supplied) of the CU on the installation site.
2. Mark the points for four pilot holes and makes the pilot holes for 5x50 self-tapping screws.
3. Put the unit on the installation site and fix it with four 5x50 self-tapping screws (supplied).
Note: It is necessary to install the Communication Unit on a desktop to comply with IPX2 (drip-
ping) standard. Refer to section 2.5 for directions to how to install on a desktop.
350±0.5 mm (13.78 " )
52.5 mm (2.07
")
160±0.5 mm (6.30
")
375 mm (14.76 " )
SIM CARD INSIDE
POWER OFF BEFORE INSERTING
OR REMOVING SIM ―
○
POWER
○
I POWER 1 TX 2 3 4
STATUS
Inmarsat FleetBroadband
READY
4- φ 6 mm (0.24 " )
Fixing holes
