1. HOW TO INSTALL THE UNIT
11

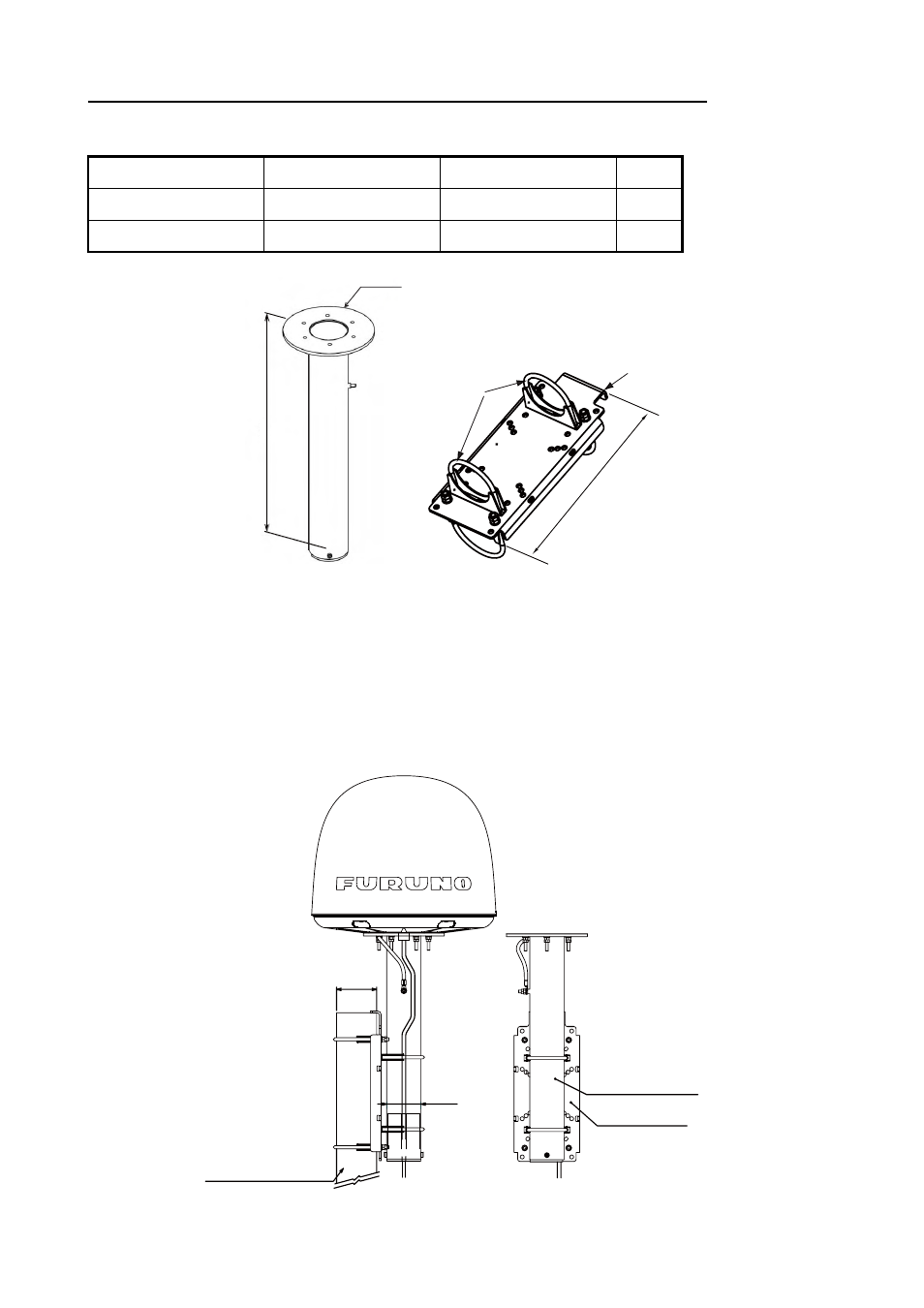

How to mount the FELCOM 250 antenna unit with optional pole mount kit
Pole mount kit: Type OP16-52, Code number 000-017-061
1. Ask the shipyard to prepare and mount an antenna mast (diameter φ89: 80A).
2. Attach the fixing plate SP-SAC-1032 to the antenna mast by hanging the lip of the fixing plate
on the top of the antenna mast.
3. Insert the mounting pole SP-SAC-1031 through the U-bolts of the fixing plate and fasten the
U-bolts.
4. Put the FELCOM 250 antenna unit on the mounting pole and fix it with nuts (see previous
page).
Name Type Code no. Qty
Mounting pole SP-SAC-1031 000-173-963-10 1
Fixing plate SP-SAC-1032 000-173-964-10 1
U-bolt
Lip
φ 180
507
333
Mounting pole
Fixing plate
Antenna unit
(Shipyead suplly)
φ76
(65A)
φ89
(80A)
