WARNING: Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause permanent eye damage or blindness.
Never operate the UV-Aire ® Air Purifying System out of the plenum. Avoid touching the glass portion of the lamp with your hands.
VERY IMPORTANT: Turn the speed control switch on unit to 'OFF' position and unplug unit from outlet or turn
off power to the unit before replacing the UV lamp.
Loosen the two door-mounting screws on front cover of the UV-1500C. (See Figure 16) 1.
Open the cover to expose the filters and the air purification chamber. (See Figure 17) 2.
Rotate the two door clips to allow the chamber access door to open. (See Figure 18) 3.
Unplug ballast plug from end of lamp and loosen the wing nut on swivel bracket. Swing swivel bracket 4.
away from the lamp. (See Figure 19)
Remove lamp carefully, by sliding the lamp to the left through the hole on the left side of the chamber. 5.
After exposing the connection end of the lamp inside the chamber, remove the lamp through the front of
the unit.
NOTE: When replacing the lamp, always wipe off lamp with the supplied alcohol wipe after installing.

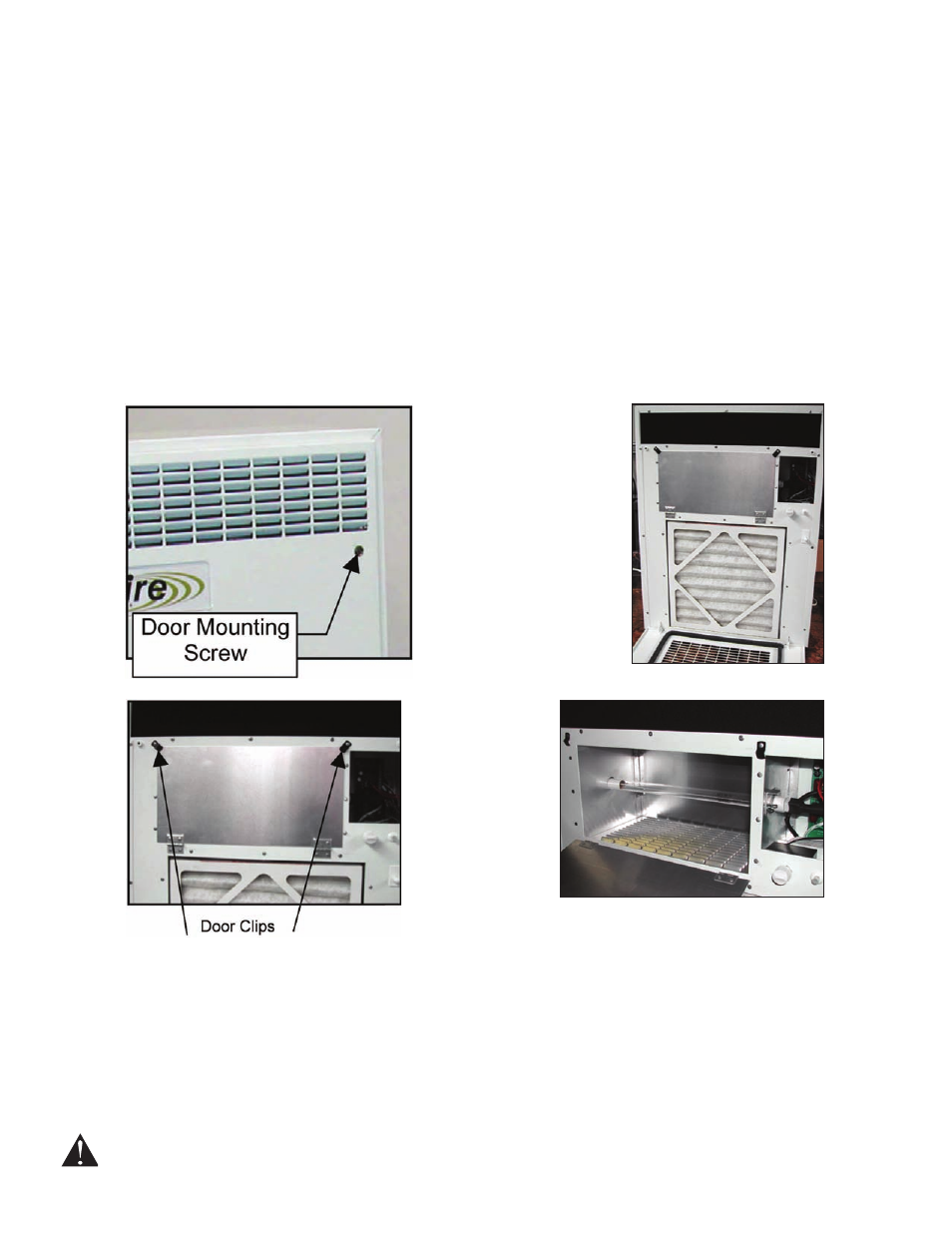

Figure 19 Figure 18
Figure 17
Figure 16
MAINTENANCE
Replace 12"x 12" intake filter every 90 days, replace carbon outlet filter every 12 months. 1.
Replace your UV-Aire Air Purifying System lamp once a year to maintain the lamp’s maximum output 2.
intensity. The lamp should operate continuously for maximum lamp life and light effectiveness.
REPLACEMENT PROCEDURES
REPLACING THE UV LAMP
