The units are designed to match the
NavNet 3D series and other navigation
equipment. The “Plug and Play” system
utilizes NMEA 2000
® interface protocol,
which gives the system exceptional
interface ability.
The FI-50 Series utilize high-contrast, backlit LCD displays for
superior viewing even in direct sunlight. Each unit features an
easy-to-read display and 4 simple programming buttons for
operation. The function for each key and combination is printed
directly on the front panel.
The FI-50 series of instruments minimize power consumption
by turning off the backlight during the daytime. Sensors on
the front panel measure ambient lighting conditions and
adjust the on/off condition of the display backlighting
accordingly.
Data displayed
• Apparent and true wind speed • Apparent and true wind angle • Maximum true wind speed
• MAX/LOW true wind speed alarm • High/Low apparent wind angle alarm • Beaufort wind speed
• VMG to windward
The FI-503 displays critical digital data for
navigation, such as depth, speed, temp, and
atmospheric weather data in a 3-way split
screen.
Data displayed
1 • Current depth • Shallow/deep alarm
• Shallow/deep anchor alarm • Wind angle
• High/Low apparent wind angle
2 • Boat speed • MAX/AVG STW • SOG • MAX/AVG
SOG • VMG to windward • Wind speed • MAX
true wind • MAX/LOW true wind speed alarm
• Beaufort wind speed
3 • LOG • Trip • Count up/down timer • Water
temperature • Air temperature • Air pressure
• Humidity • Wind chill temperature • Dew point
Apparent and True Wind Angle is displayed
in both analog and digital format when
connected to the FI-5001 or other
NMEA2000
® wind measurement system.
The FI-502 provides detailed and precise
wind bearing measurements from 60 port to
60 Starboard, an important range for Close
Hauled (CH) points of sail. The FI-504 features a large digital display.
The combination of alpha and numeric
characters present all of the data and
functionality available in the FI-50 Network.
Alternating Data Displays are possible and
selected information can be switched at 3
second intervals.
Data displayed
• Displays all information on the FI-50 series
• NAVIGATION (Bearing/distance to WPT, XTE, WPT
number/name, L/L, Satellites tracked, Roll & Pitch)
• ENVIRONMENT (Battery voltage, Time & Date)
• ENGINE (Trip fuel used, Fuel consumption,
Engine RPM)
The FI-505 provides a digital compass
readout with an analog “Off-Course”
needle that greatly assists the helmsman
in maintaining the desired vessel course.
Or, use the needle to check and verify the
autopilot steering performance.
Data displayed
• Current heading • Locked heading
• Average heading • Course over ground
Connected to an Autopilot, the FI-506
Rudder Angle Display show precise rudder
angle information.
Data displayed
• Rudder angle
FI-503 FI-504 FI-505 FI-506 FI-501
Depth/Speed/Temp Sensor
DST-800
Frequency: 235 kHz
Wind Transducer
FI-5001
Angle Accuracy: Better than ±10°
Speed Accuracy: Better than ±5 % (20 kt)
Power supply: 12 VDC, less than 40 mA
Transducer cable: 30/50 m
Junction Box
FI-5002
NMEA2000 ® backbone x 2 ports
NMEA2000 ® x 6 ports
Power supply: 12 VDC, less than 2 A
FI-502
DIGITAL MULTI COURSE PILOT RUDDER WIND CH WIND
Sensors and Accessories (Option)
Specifications of FI-50 series
Easy to install
Easy to Read with Silver Bright LCD Display
FI-503 DIGITAL FI-504 MULTI
Operational guide description on the front panel
22 mm
41 mm 22 mm
Daytime Sunset or after
Back Light
Turns On
Back Light
Turns Off
Automatic Backlight Adjustment
Automatic Detection
Display: Analog and digital LCD (FI-501, 502, 505)
Digital LCD (FI-503, 504)
Analog (FI-506)
Power supply: 12 VDC, less than 0.1 A
Temperature: –15°C to +55°C
Waterproofing: IP56
Surface mount installation Flush mount installation
with optional front panel
Surface Mount the displays with a hole saw then install 4 hidden
screws under the front bezel. Installations are easy and clean with
a finished appearance (1"(26mm)bulkhead protrusion) Optional “Low Profile” Flush Mounting front panels provide
a cosmetic match to NN3D Displays and a custom console
appearance (0.4"(10mm)bulkhead protrusion)
Wind Transducer
Wind Transducer
12 V

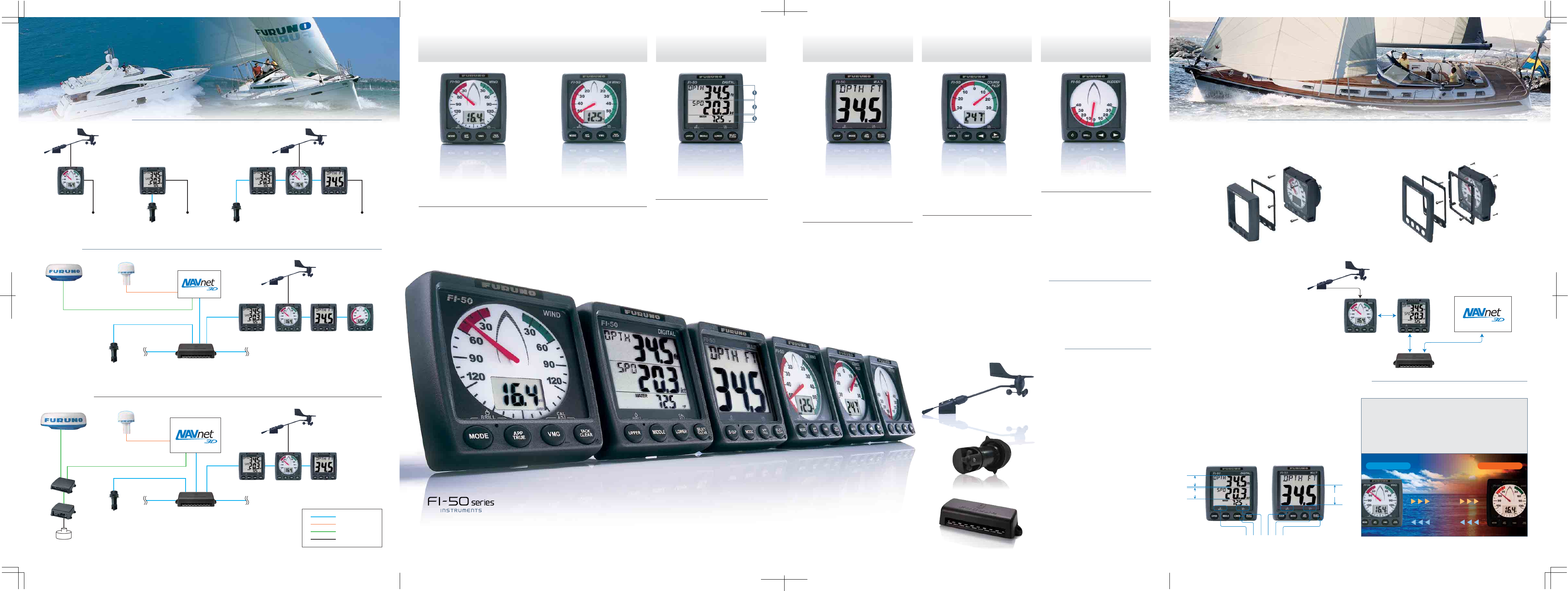

Basic Configurations
Sail Boat
Power Boat
System Configurations
Wind Transducer
12 V
Digital Wind Multi
12 V
Depth/Speed/Temp
Sensor
Depth/Speed/Temp
Sensor
Depth/Speed/Temp
Sensor
Wind Multi CH Wind Digital
Junction Box
Network Radar Sensor
Navnet 3D
Multi Function
Display
Wind Transducer
Transducer
Depth/Speed/Temp
Sensor
Wind Multi Digital
Junction Box
Network Radar Sensor
Navnet 3D
Multi Function
Display
Digital Wind
WAAS/GPS
Antenna
WAAS/GPS
Antenna
NMEA 2000 ®
NMEA 0183
Ethernet
others
Wind Transducer
FI-501 FI-503
JUNCTION
BOX
MULTI FUNCTION
DISPLAY
DFF1
HUB
* 12V power will be supplied from NavNet 3D
* 12V power will be supplied from NavNet 3D
