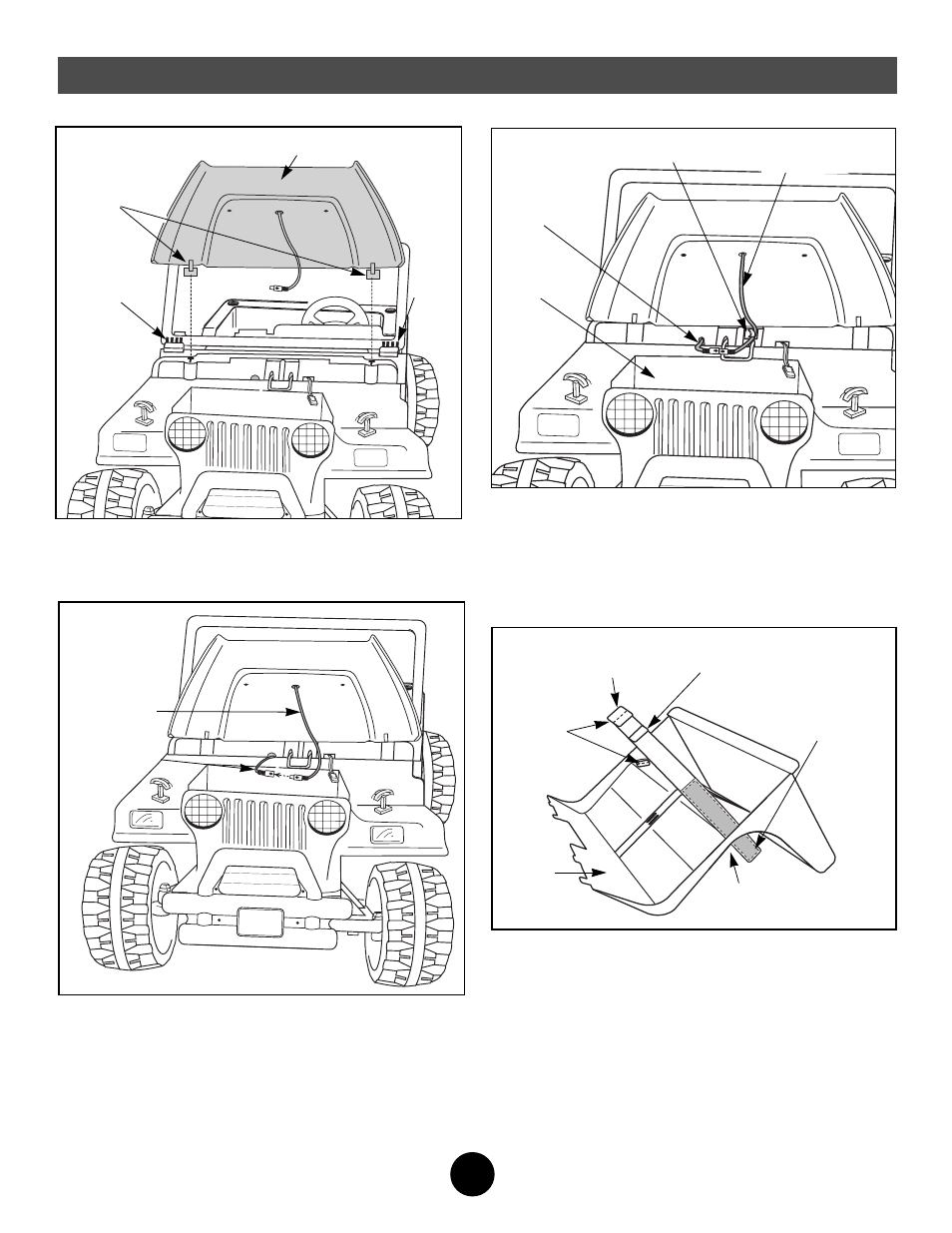

Hood

Tabs

Slot

• Position the hood over the front of the vehicle body.

• Insert the tabs on the hood into the slots in the

vehicle body.

Lights and
Siren Cord

Microphone
Cord

• Align the arrow on the lights and siren cord connector

with the arrow on the microphone cord connector.

• Push to connect the lights and siren cord to the

microphone cord.

Lights and
Siren Cord

Cord Retainer

Microphone
Cord

Battery
Compartment

• Remove the backing from the cord retainer.

Discard the backing.

• Apply the cord retainer to the back of the dash.

• Fit the lights and siren cord into the clip on the cord

retainer.

• Close the hood.

Assembly

• Turn the seat upside down.

• Insert the fastener end of a short seat belt strap through

the slot near the outer edge of the seat. Make sure the
side of the seat belt with the fastener faces the outer
edge of the seat.

• Pull the short seat belt strap completely through the

slot until the last T-loop at the opposite end of the belt
catches against the slot. You will pull one T-loop through
the slot.

• Repeat this procedure to assemble the other short seat

belt strap.

Short Seat
Belt Strap

Fastener
End

Seat

End
T-Loops

Slot

T-Loop (pull through slot)
