Assembly
F
12

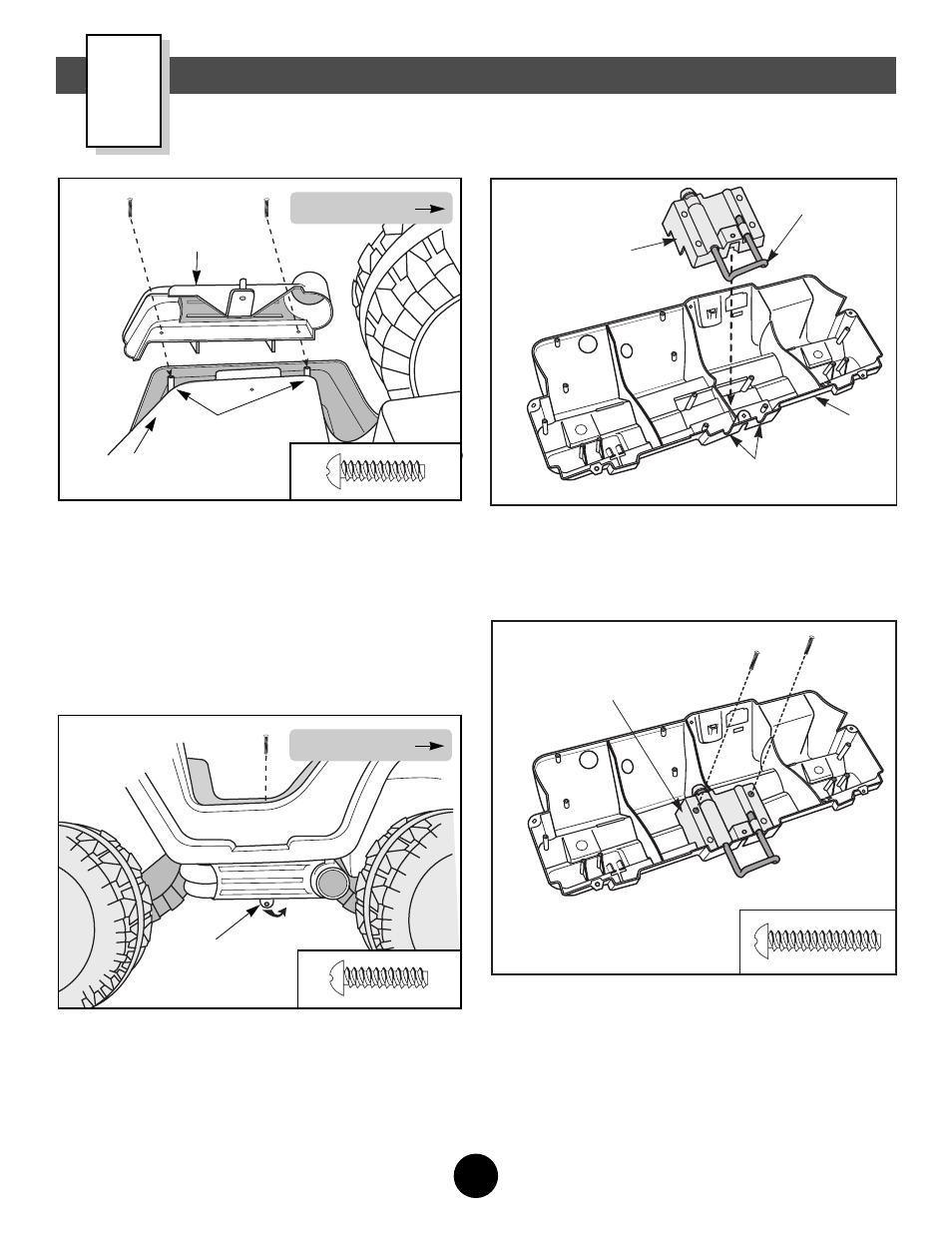

• Turn the vehicle body upside down.
• Fit the left sidepipe under the left (driver) side of the
vehicle body.
• Insert two #8 x 3 /
4
" screws through the top of the left
sidepipe and into the screw pegs on the underside of
the vehicle body.
• Tighten the screws with a Phillips screwdriver. Do not
over-tighten.
• Repeat this procedure to assemble the right sidepipe to
the right side of the vehicle body.
Left Sidepipe
Screw Pegs
Vehicle
Body
• Turn the vehicle body upright.
• Gently bend the tab on one of the sidepipes under the
vehicle body.
• Insert a #8 x 3 / 4 " screw through the hole in the vehicle
body floor and into the tab.
• Tighten the screw with a Phillips screwdriver. Do not
over-tighten.
• Repeat this procedure on the other side of the
vehicle body.
Tab
Back of Vehicle
Back of Vehicle
2
1 3
Battery
Retainer
Unit
Dash
• Position the dash upside down.
• Fit the battery retainer unit into the underside of the
dash so that the clip fits into the grooves in the dash.
Make sure the battery retainer unit is flush against the
surface of the dash.
4
Battery
Retainer Unit
• Insert two #10 x 1" screws through the holes in the
battery retainer unit and into the pegs in the dash.
Clip
Grooves
