Frymaster H22SC - Manual (Page 49)

8-4

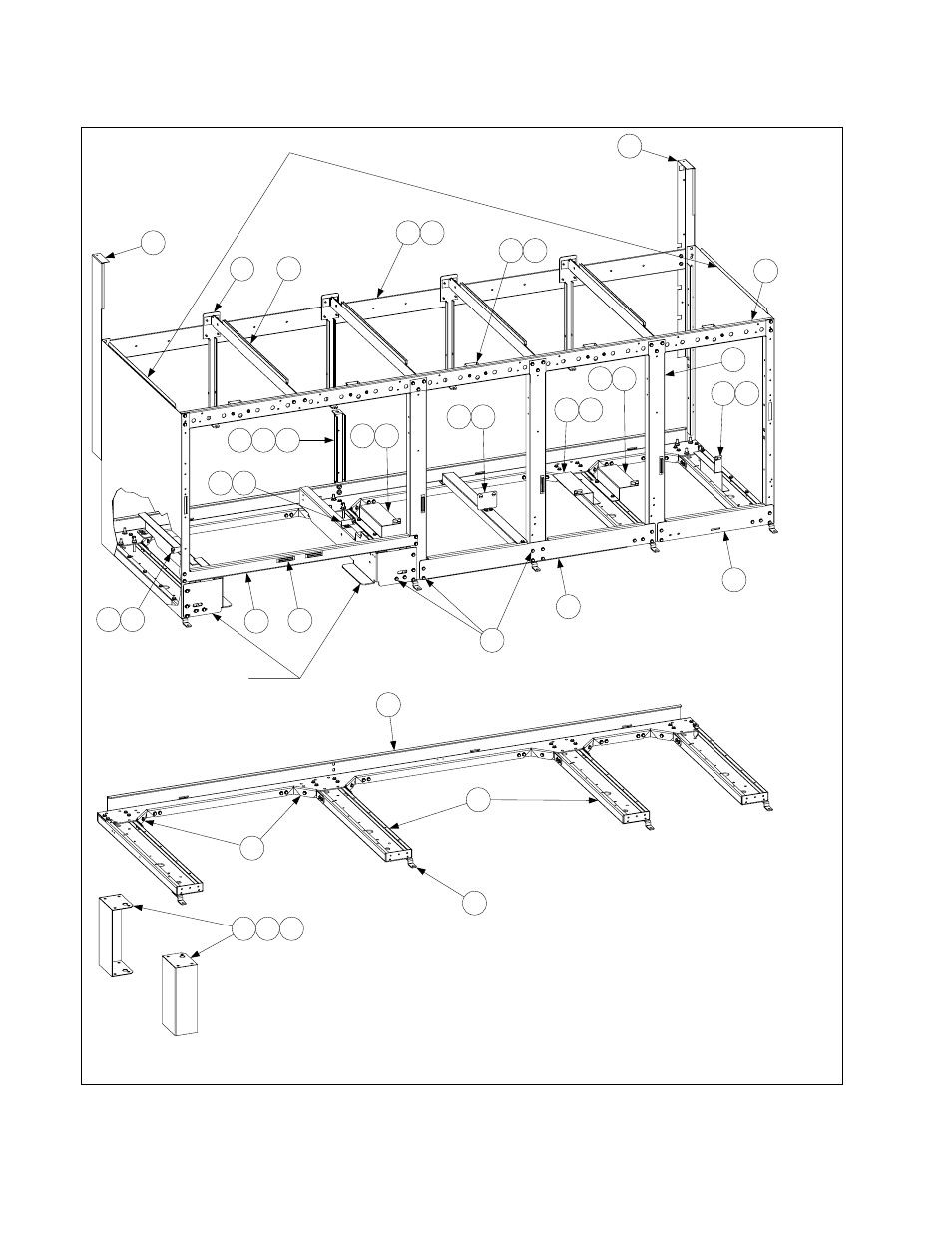

8.2.2 Cabinet Bases, Braces, and Associated Parts
1
2
20 4
16
6
5
3
31
19
29
30
17
See Page 8-14 for filter rails
and associated hardware.
7
26
See Page 8-2 for cabinet sides.
21 23
24 14
24 10
24 12
24 10
11 24
9 24
24 15
The 5-Station cabinet illustrated is typical of all
Navy Surface Ship Electric cabinets. All
components used in Navy Surface Ship cabinets
are identified, but not all components are used in
every configuration.
27 28 32
8 25
28 22 18
See Page 8-24 for rear bridge
support/oil return manifold.
