Chapter 1

System Overview

1-13

1.2.3

M8000 Server Components

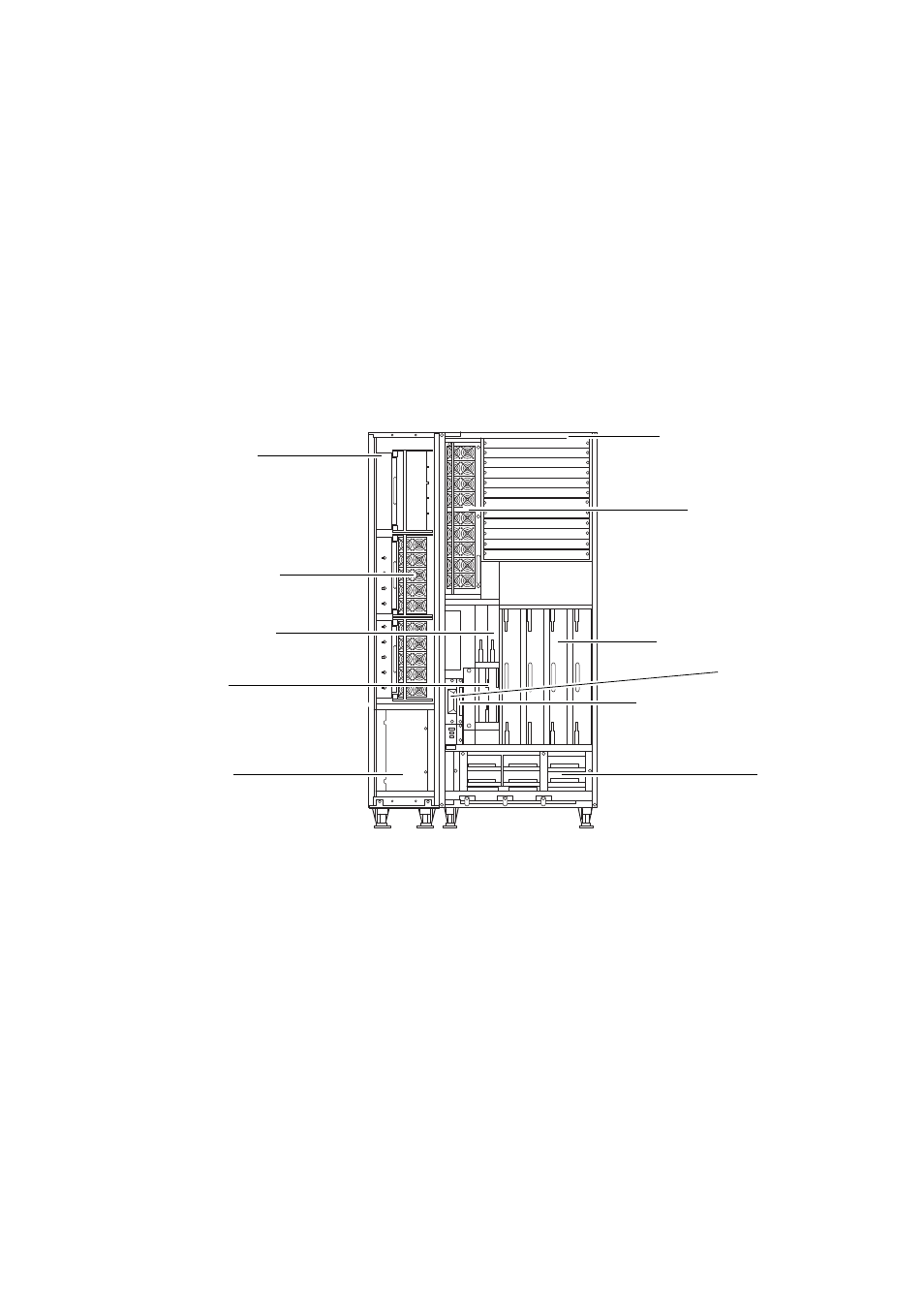

FIGURE 1-4

and

FIGURE 1-5

show the front and rear views of the M8000 server with a

power cabinet connected. The names of server components are shown in each figure.

The dual power feed option and three-phase power feed option can be mounted in
the power cabinet. One power cabinet is connected to the M8000 server.

FIGURE 1-4

M8000 Server and Power Cabinet Front View

Power supply unit

Equipment rack space

Power supply unit

XSCF unit

Tape drive unit

CD-RW/DVD-RW drive unit

FAN unit

DC-DC converter

AC section

CPU memory board unit

Power cabinet

This manual is related to the following products:
