6 W2604a-0920
• Insert four screws into the underside of the bumper
and tighten.
Hints:
- You may need to turn the wheels to fit all four screws
into the bumper.
- You may need to push and pull on the bumper to
align the screw holes.
2
N9733pr-09
WARNING
Children can be harmed by small
parts, sharp edges and sharp points
in the vehicle's unassembled state,
or by electrical items. Care should be
taken in unpacking and assembly of
the vehicle. Children should not handle
parts, including the battery, or help in
assembly of the vehicle.

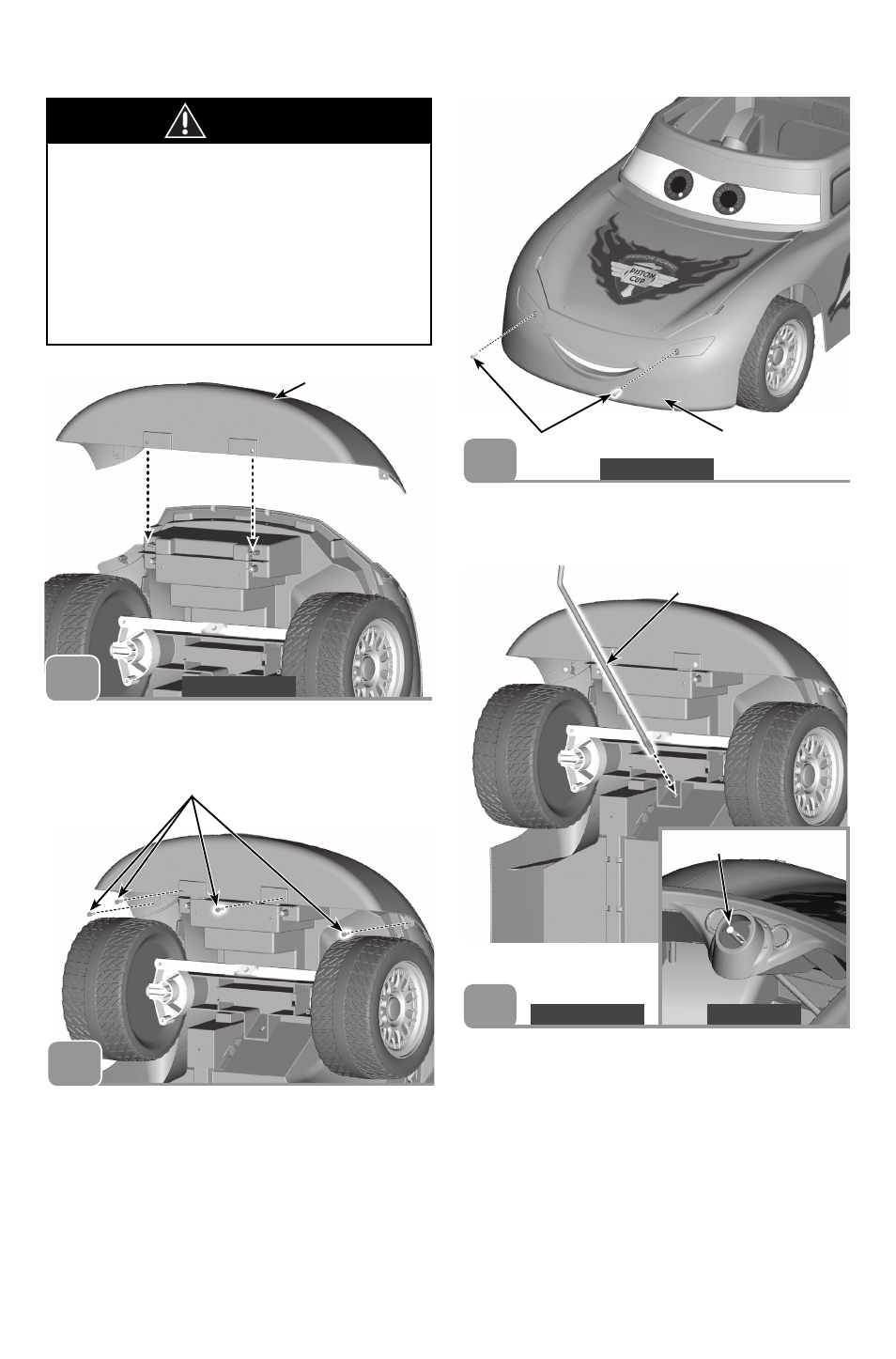

• Carefully lift the front end of the vehicle.
• Fit the front bumper to the front of the vehicle.
Front Bumper
Screws
ASSEMBLY
1
BOTTOM VIEW
Steering Column
• Set the vehicle upright.
• Insert two screws into the front bumper and tighten.
Front Bumper
DASH VIEW
Steering Column
3
FRONT VIEW
4
BOTTOM VIEW
• Wipe the steering column with a paper towel to
remove any excess lubricant.
• Carefully lift the front end of the vehicle.
• Insert the straight end of the steering column through
the slot in the vehicle and out through the large hole in
the center of the dash.
• Be sure the steering column comes through the hole
in the dash.
Screws
