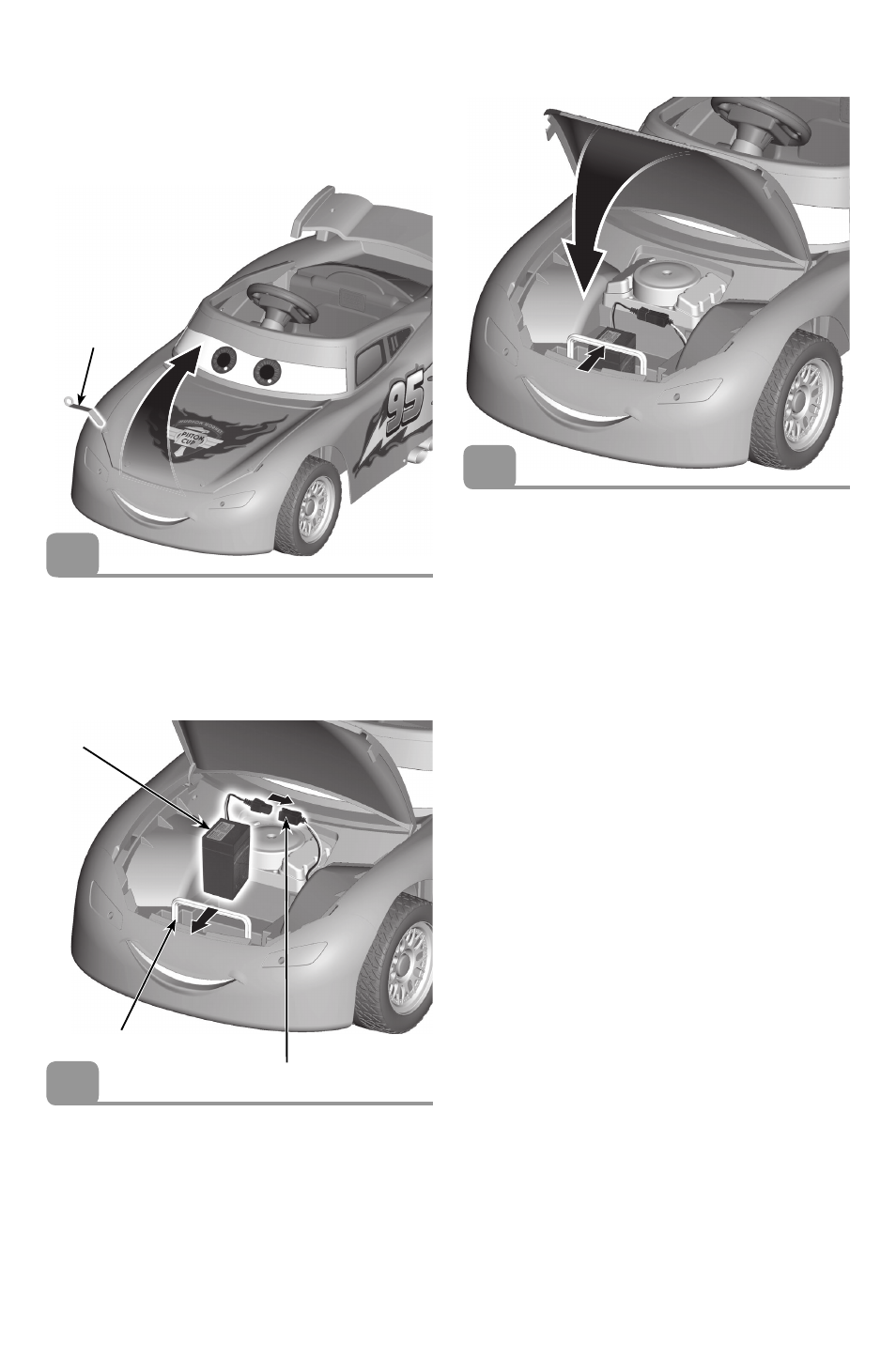

• Lift and pull the battery retainer forward.
• Plug the motor harness connector into the battery.
Battery Retainer
Power Wheels ®
6 Volt Battery
• Insert the end of the assembly tool or a coin into the
slot on the side of the hood.
• Use the tool to lift the hood and access the
battery compartment.
Assembly Tool
• Place the battery in the battery compartment and
release the battery retainer. Make sure the battery
retainer slides over the top of the battery.
• Close the hood and fit the tabs on the hood into the
slots in the vehicle.
• Press down to "snap" the hood in place.
Motor Harness Connector
BATTERY INSTALLATION
IMPORTANT! Use only a Power Wheels ® 6 volt
rechargeable battery. Use of any other battery will
damage your vehicle.
1
3
2
