2.4 Connectors and Cables
2.4.1 Connectors/pin assignment for standard type
(1) Connectors for control interface (RS232C) cable
Scanner side connector: D>SUB 25>Pin connector
Cable side connector: FCN>770A53 (FUJITSU), GM>25LMK(HONDA), or
equiva>lent
Pin assignment: See Figure 2.1.

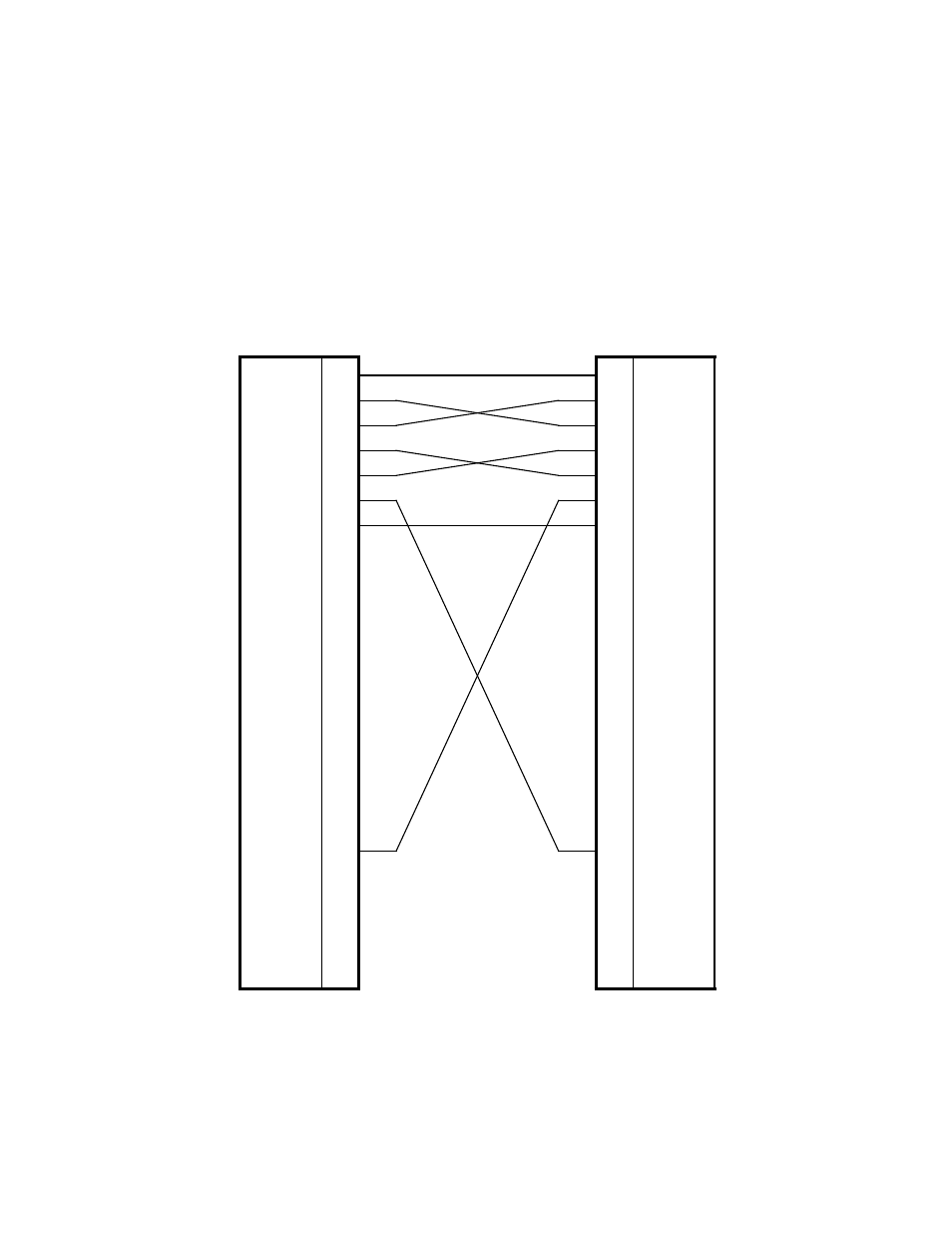

Figure 2.1 Control interface cable connector pin assignment
Scanner
FG 1
TXD 2
RXD 3
RTS 4
CTS 5
DSR 6
SG 7
8
9
10
11
12
13
14
15
16
17
18
19
DTR 20
21
22
23
24
25
Host
1 FG
2 TXD
3 RXD
4 RTS
5 CTS
6 DSR
7 SG
8
9
10
11
12
13
14
15
16
17
18
19
20 DTR
21
22
23
24
25
The above connection is an example.
