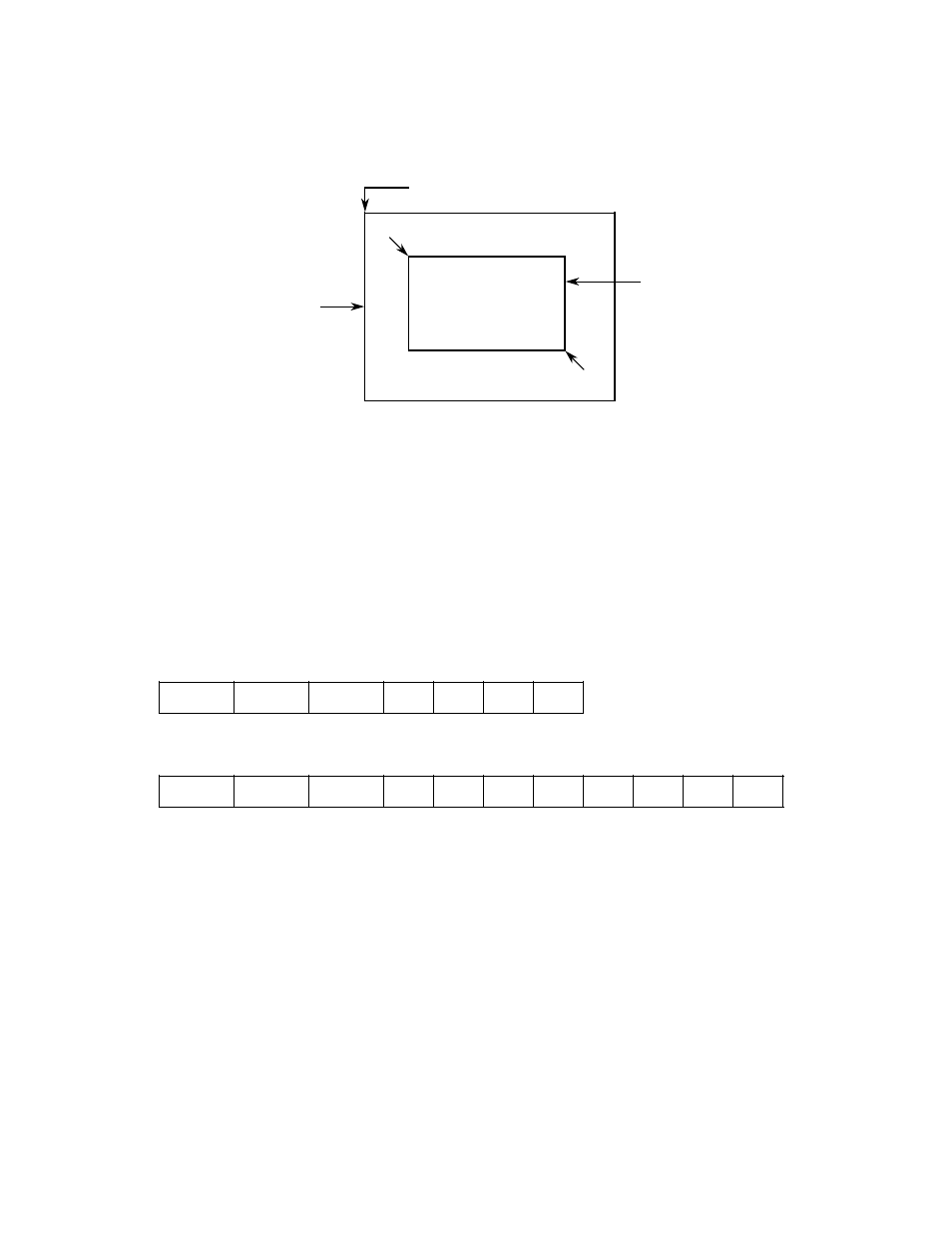

Picking is specified when the scanner is required to read a special area as shown
below.
Front side of scanner
Reference point
Document
board
Area to be
scanned
A
B
Picking is applied when bit 5 of the control register #5 is ™1∫ and the address of
points A and B is specified in the control registers #10 to #17.
Note:
When these registers are specified, four consecutive registers (#10 to #13 or
#14 to #17) must be specified.
Ex.
(#15) (#16) (#17)
(#14)
CNT
CND
REG.No.
#10
#11
#12
#13
#14
#15
#16
#17
#10
#11
#12
#13
Or.
CNT
CND
REG.No.
6 $ 16
50FH5037E>02
