Frontier Labs Lite/Pro User Manual
Page 15
Chapter 2 — Getting Started
10
I
I
n
n
s
s
t
t
a
a
l
l
l
l
i
i
n
n
g
g
t
t
h
h
e
e
C
C
u
u
s
s
t
t
o
o
m
m
e
e
r
r
D
D
i
i
s
s
p
p
l
l
a
a
y
y
f
f
o
o
r
r
L
L
i
i
t
t
e
e
t
t
y
y
p
p
e
e

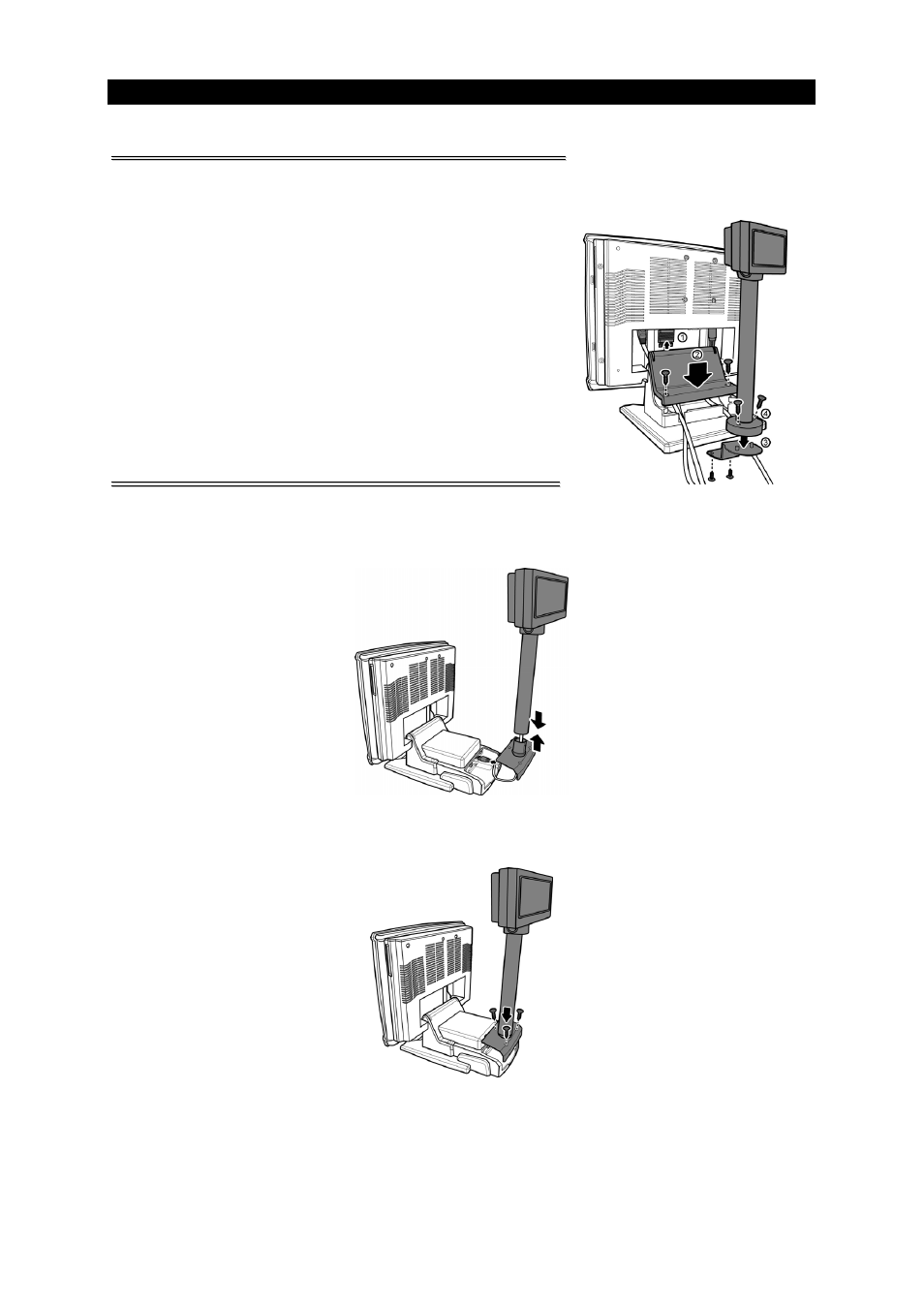

Follow the procedures below to install the Customer Display.
1. Connect the VFD DB 9 cable to the connector
as shown.
2. Replace the base cover and affix it with two
M3 screws.
3. Attach the Customer Display to the base of the
Frontier ULV Terminal with two M3 screws.
4. Lock the Customer Display to the customer
display pole bracket with two M3 screws.
I
I
n
n
s
s
t
t
a
a
l
l
l
l
i
i
n
n
g
g
t
t
h
h
e
e
C
C
u
u
s
s
t
t
o
o
m
m
e
e
r
r
D
D
i
i
s
s
p
p
l
l
a
a
y
y
f
f
o
o
r
r
P
P
r
r
o
o
t
t
y
y
p
p
e
e
Follow the procedures below to install the Customer Display.
1. Plug the VFD RJ-45 connector of the Customer Display into the COM5 port.
2. Install the Customer Display and the cover stand in place with three M3
screws.
