C141-E072-01EN 1 - 7
(4) Current fluctuation (Typ.) when power is turned on
Note:
Maximum current is 2.3 A.

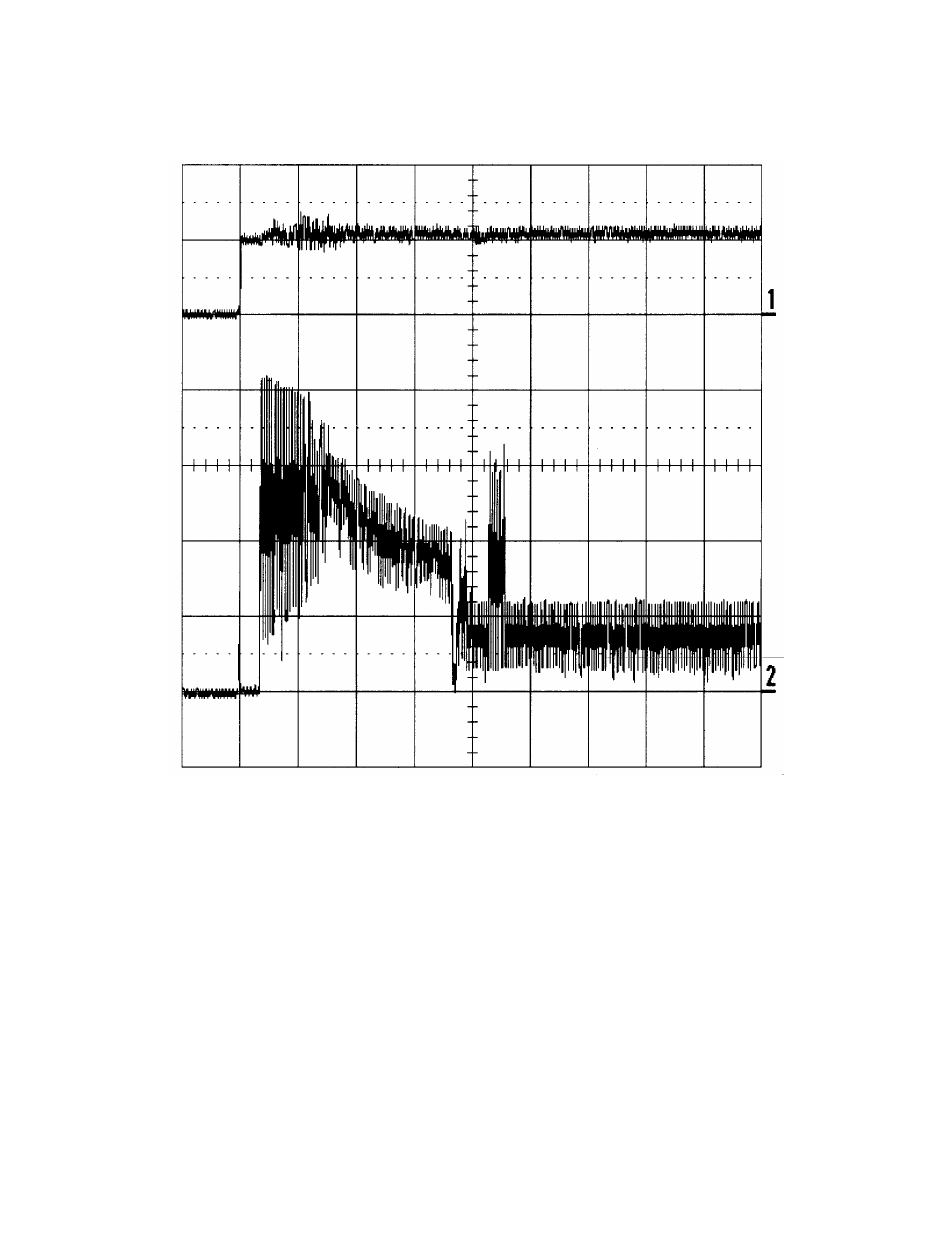

Figure 1.1 Current fluctuation (Typ.) when power is turned on
(5) Power on/off sequence
The voltage detector circuit monitors +5 V and +12 V. The circuit does not allow a write
signal if either voltage is abnormal. This prevents data from being destroyed and eliminates
the need to be concerned with the power on/off sequence.
+5VDC
(0.5A/div)
0.0
0.0
0.5
1.5
1.0
[A]
2.0
[A]
0.5
0
+12VDC
(0.5A/div)
2 4 [seconds] 16 14 12 10 8 6
