2
3172-04
Face, Regal Grmt.
Porcelain Complete(1)
or
3172-06
Face, Regal Gourmet
Stainless Complete(1)
NOTES:
*Verify Proper Orifice for Natural or L.P. Gas.
One set per unit as specified.
**2 of same bolt & nut are
used to attach Mounting Plate to frame.
***If the Generator is not attached to the Face,
specify part # 3199-23 for Generator w/Bracket.
3985-2105F
8-32 x 5/8” Stainless
Tapping Screw (2)
3055-S
7” Center
Flavor Grid (1)
3053-S
10” Flavor
Grid (2)
3199-15 Electrode
Assembly w/Wiring (1)
3000-07
Regal II Barbecue Frame liner,
Porcelain
3000-65
Bezel
w/ Pad (3)
*** 3199-23-1
Spark Generator
w/Lock Stem (1)
3150-12
Heatshield (3)
3012
Valve Knob (3)
3041-25
Brass BBQ Burner (6)
3041-30
Porcelain Coated Cast Iron BBQ Burner (6)
3041-40
Stainless Steel BBQ Burner (6)
3048-01
Air Shutter (6)
3990-0035
“U” Nut
Receptacle (2)
3048-03
Spring, Air Shutter (6)
3199-23-02
Ignitor Knob
Lock-On (1)
3078G
Drip Tray (1)
*Orifice (#52 D.S.), Nat. (2)
*Orifice (#57 D.S.), Propane (2)
3/4” Pal Nut (2)
Regal Burner Manifold (1)
3197-10
(3197-10P for L.P.)
Burner Manifold
Assembly for 2
Burners (3)
Regal Manifold (1)
1/2"Flare Fitting (1)
BBQ Valve (3)
Elbow (3)
1/8" Pipe Plug (1)
3/8" Pipe Plug (1)
3172-09
ValveManifold
w/Valves &
Fittings (1)
3520 - 22"x6"
Cast Iron Grid (5)
3527 - 22"x6"
Porcelainized Cast Iron Grid (5)
w/Non-Stick Matte Finish
3540 - 22"x15" Porcelainized
Steel Grid (2)
3544-S - 22”x10”
Stainless Steel Grid (3)
** 3980-4105 & 3990-0010
1/4-20 x 5/8” Stainless
Bolt & Nut (4)
3000-12 Fastener Set, Porcelain Face
3000-12-S Fastener Set, Stainless Steel
8-32 Screw Fastener Set includes
7/8" Screw, Finish Washer &
"U" Nut (2)
3000-117
Mounting Bracket (2)
3172-12-01
Mounting Plate,
Manifold and Label (1)
Lighting
Instructions

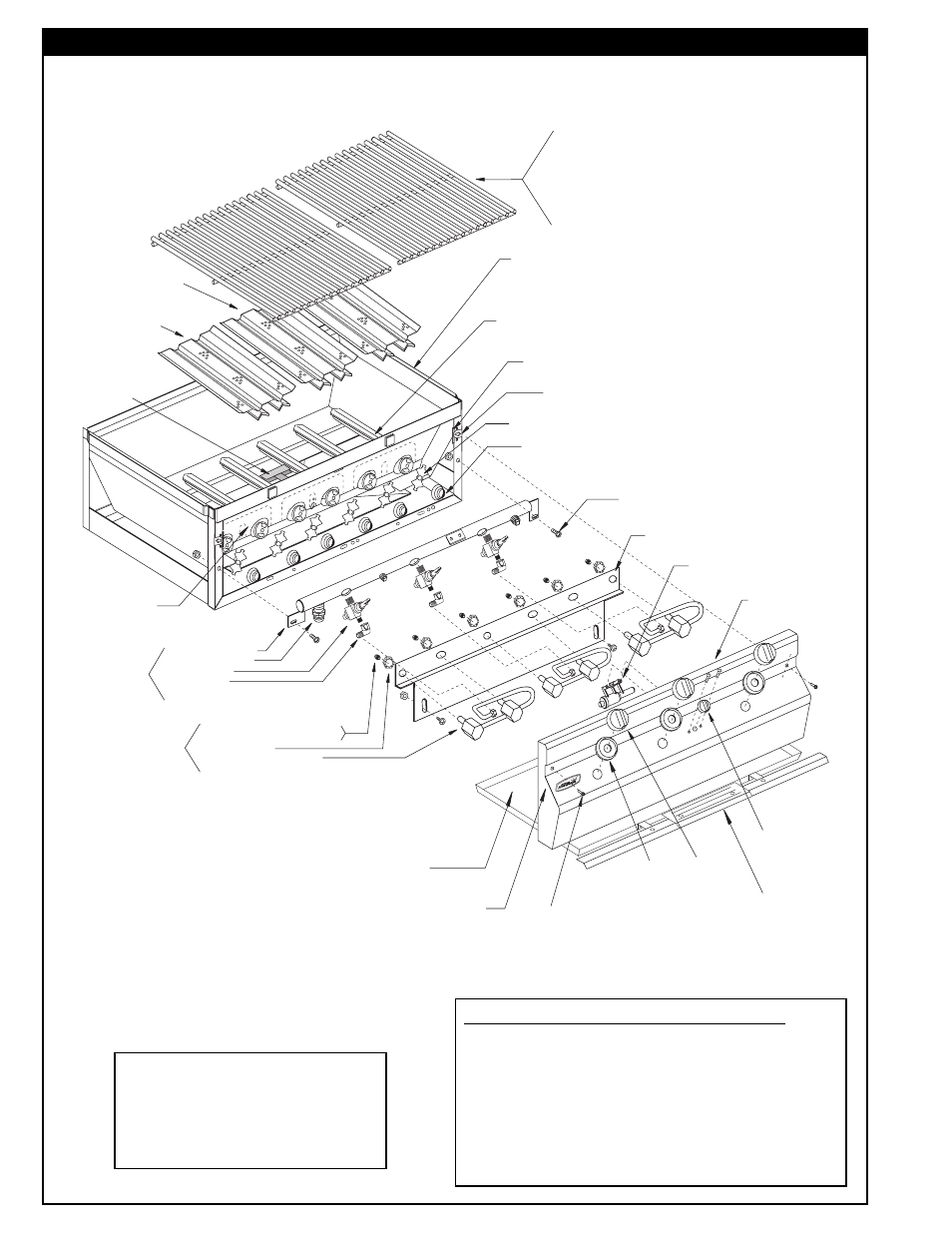

FIRE MAGIC REGAL II GOURMET SERIES GAS BARBECUE PARTS LIST
TOOLS REQUIRED FOR INSTALLATION
• #2 (medium) Phillips screwdriver
• Two medium size adjustable wrenches or pliers
• *3/8" wrench or 3/8" socket screwdriver
• Pipe joint compound resistant to all gasses
*Note: 3/8" socket if orifice change is required.
INSTRUCTIONS FOR
FIRE MAGIC BARBECUE
MODELS NO. 3197S thru 3198S
3190S thru 3193S PACKAGE
5390SF thru 5393SF PORTABLE
