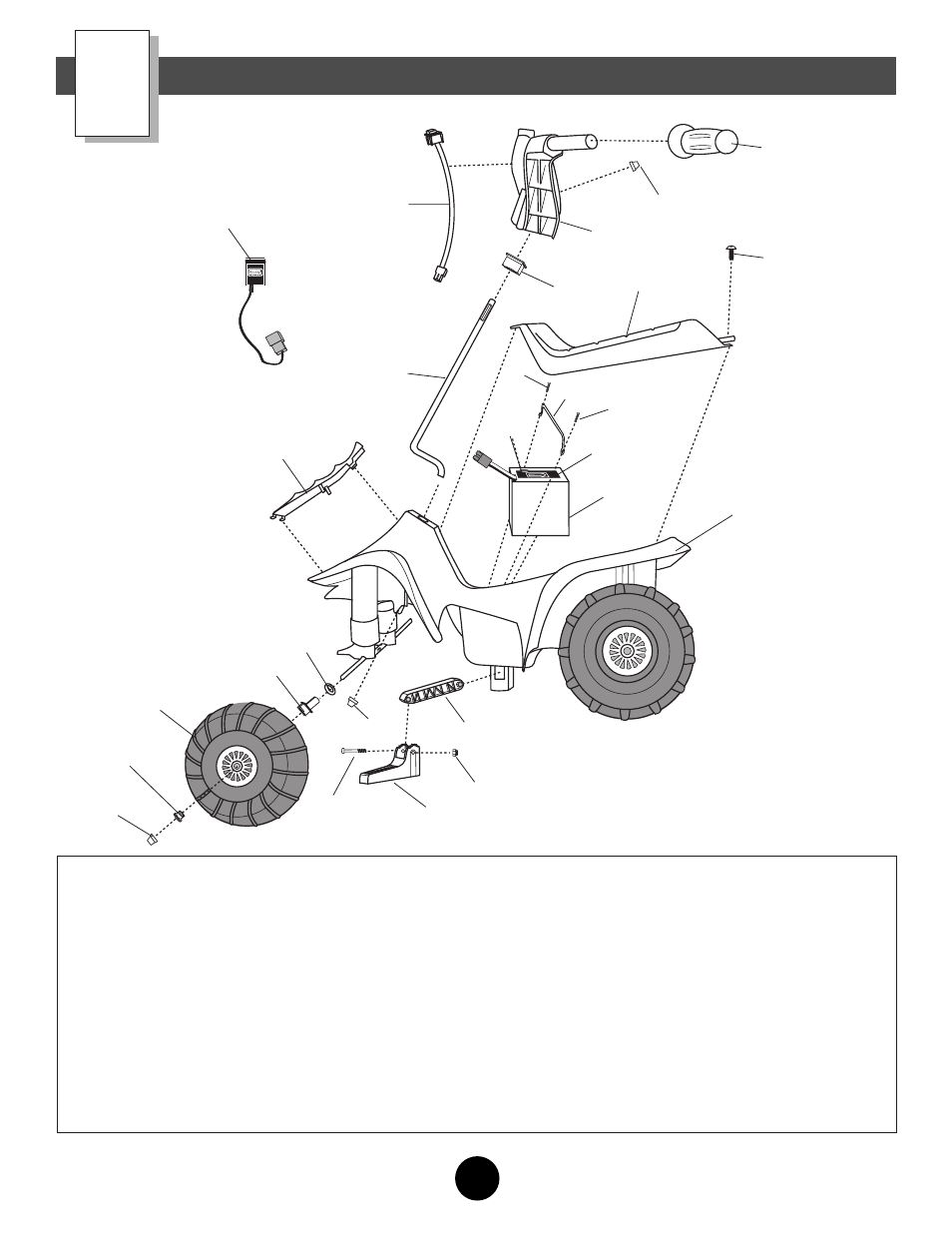

Parts Diagram
D
2
3
4
5
6
6
7
10
13
1
15
21
17
23
20
19
18
6
1. Vehicle Body
2. Steering Column
3. Handlebar
4. Handgrip - 2
5. Steering Column Bushing
6. Cap Nut - 4
7. Battery
8. Foam Pocket
9. Charger
10. Seat
11. Handlebar Wire Harness
12. Battery Retainer
13. Grille
8
12
24
14
14
11
9
16
22
14. #10 x 7 /
8
" Screw - 2
15. #10 x 1 1 /
4
" Bolt - 2
16. #10 x 1 /
2
" Bolt
17. Lock Nut - 2
18. Washer - 2
19. Wheel Bushing - 2
20. Round Bushing - 2
21. Footrest - 2
22. Footrest Support
23. Front Wheel - 2
24. 25 Amp Fuse
Not Shown: Label Sheet
